User manual SIPLACE SX1/SX2 5 Working with the machine From software version SC 706.1 SP1 Version 10/2014 5.15 Docking the component trolley in or out 285 5 Fig. 5.15 - 6 Component trolley - swivel handles down (1) Push …
5 Working with the machine User manual SIPLACE SX1/SX2
5.15 Docking the component trolley in or out From software version SC 706.1 SP1 Version 10/2014
284
5
Use the height setting for fine adjustment to correct the height of the component trolley. The
two surfaces of the block and the bracket should not quite touch.
5
5
5
Go to the main view of the station software and select the Feeder module... icon and
then the
Locations icon.
Click on the icon to lock the respective location and wait until the trolley has docked
completely. For further information, refer to the station software Online Help.
Push the sleeve up using both handles and swivel the handle
down.
PLEASE NOTE
Close the protective covers since the component trolley can only be docked in if the
covers are closed.
User manual SIPLACE SX1/SX2 5 Working with the machine
From software version SC 706.1 SP1 Version 10/2014 5.15 Docking the component trolley in or out
285
5

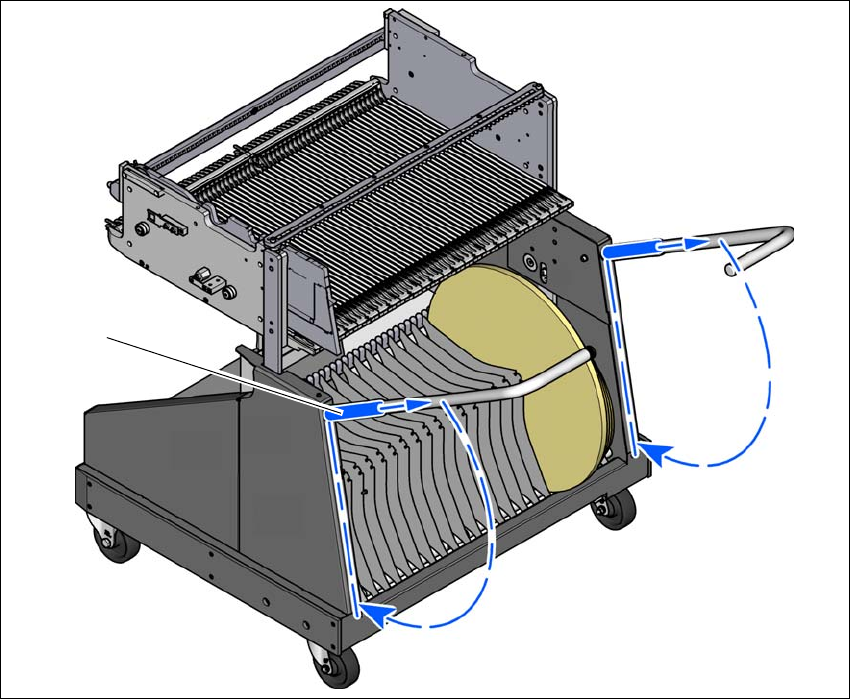

Fig. 5.15 - 6 Component trolley - swivel handles down
(1) Push sleeve up
(2) Fold handle down
(1)
(2)
(2)
5 Working with the machine User manual SIPLACE SX1/SX2
5.15 Docking the component trolley in or out From software version SC 706.1 SP1 Version 10/2014
286
