User manual SIPLACE SX1/SX2 6 Station extensions From software version SC 706.1 SP1 Version 10/2014 6.1 Nozzle changer 295 Nozzle magazine for 20xx nozzles 6 – Item no. 03066107-xx 6 Fig. 6.1 - 7 Nozzle magazine for 20xx…
6 Station extensions User manual SIPLACE SX1/SX2
6.1 Nozzle changer From software version SC 706.1 SP1 Version 10/2014
294
6.1.2 Nozzle changer for the SIPLACE MultiStar
Item no. 00519841-xx Nozzle changer CPP for position 1 or 2
Item no. 00519842-xx Nozzle changer CPP for position 3 or 4
or 6
Item no. 03103649-xx nozzle changer basic assembly CP/all - short
6
Fig. 6.1 - 6 Nozzle changer for the MultiStar and SpeedStar
(1) Nozzle magazine for 20xx nozzles
(2) Nozzle magazine for 28xx nozzles
6.1.2.1 Description
The magazines are fitted onto a common carrier pate, are fixed with two cylinder pins and fas-
tened with 4 push buttons. The exact position is determined with two fiducials on each magazine.
The correct seat of the magazines on the carrier plate is monitored by microswitches, to prevent
a collision of the placement head with any magazines projecting upwards. All four magazine loca-
tions must be filled since the safety circuit stops the machine in response to missing magazines
or magazines that are not seated correctly. The nozzle changer recognizes whether the nozzle
magazine is for 20xx nozzles or for 28xx nozzles (CPP head) by the nozzle magazine code.
At the nozzle station, components can be rejected with an air blast by the MultiStar nozzles. Mul-
tiStar nozzles cane stripped off there and disposed of in the rejection bin.
User manual SIPLACE SX1/SX2 6 Station extensions
From software version SC 706.1 SP1 Version 10/2014 6.1 Nozzle changer
295
Nozzle magazine for 20xx nozzles 6
– Item no. 03066107-xx
6
Fig. 6.1 - 7 Nozzle magazine for 20xx nozzles - locking plate open
(1) 12 garages for 20xx nozzles
(2) Fiducials (only visible when locking plate open)
(3) Locking plate
6 Station extensions User manual SIPLACE SX1/SX2
6.1 Nozzle changer From software version SC 706.1 SP1 Version 10/2014
296
Nozzle magazine for 28xx nozzles 6
– Item no. 03065782-xx
6

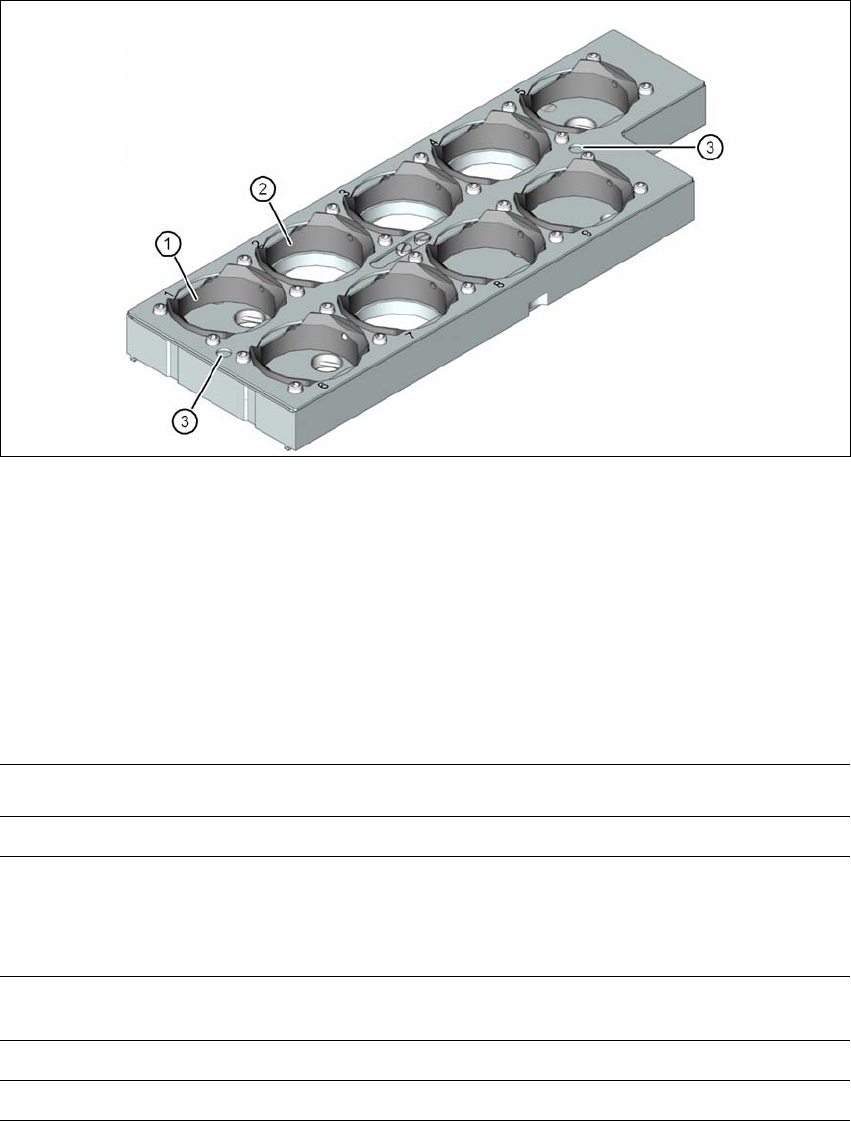

Fig. 6.1 - 8 Nozzle magazine for 28xx nozzles
(1) 5 garages for 28xx nozzles with a maximum nozzle length of 12.5 mm
(garage numbers 1, 5, 6, 8 and 9)
(2) 4 garages for 28xx nozzles with a maximum nozzle length of 20.0 mm
(garage numbers 2, 3, 4 and 7)
(3) Fiducials (only visible when locking plate open)
6.1.2.2 Technical data
6
Nozzle changer for the SIPLACE MultiStar
Dimensions (length x width x height) 314 mm x 94.5 mm x 72.25 mm
Number of nozzle holders
Type 20xx 36
Type 28xx 9
Nozzle types (standard configuration)
*a
*)a The number of nozzle magazines can be adjusted where necessary (e.g. 4 x 28xx)
3 magazines with 20xx nozzles
1 magazine with 28xx nozzles
Nozzle changeover time Approx. 2s per nozzle
Compressed air connection 0.45 MPa (4.5 bar)
