6.1.2.7 Position detection
Each magazine of the nozzle changer has two fiducials: one for determining the position and one
for determining the angular position.
6
Fig. 6.1 - 12 Nozzle magazine - fiducials for determining the position and angular position
(1) Locking plate in the "magazine open" position
(2) Fiducial for determining the angular position
(3) Fiducial for determining the position
6.1.2.8 Nozzle changer "row 2" for the SIPLACE MultiStar
Item no. 00519842-xx Nozzle changer CPP for row 2 , SX
The "row 2" nozzle changer may be installed at the following locations:
SX machine: locations 1 and 2
The retrofit package contains an assembly kit.
6
Fig. 6.1 - 13 Assembly kit for the "row 2" nozzle changer
6 Station extensions User manual SIPLACE SX1/SX2
6.1 Nozzle changer From software version SC 706.1 SP1 Version 10/2014
302
6.1.3 Nozzle changer for the SIPLACE TwinStar
Item no. 00519845-xx Nozzle changer TwinHead SX
Item no. 03005191-xx Magazine for 2 nozzles
Item no. 03001807-xx Magazine for 1 nozzle
6

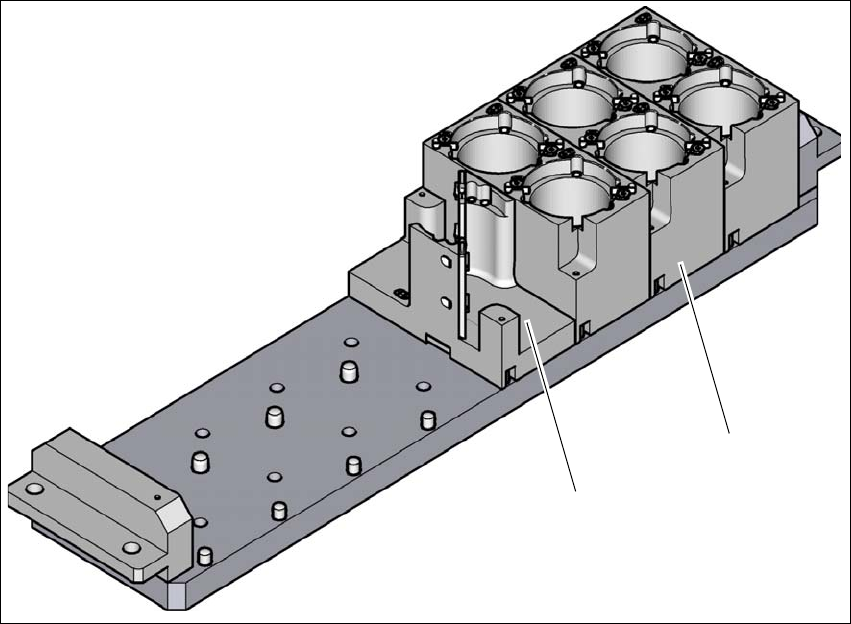

Fig. 6.1 - 14 Nozzle changer for the SIPLACE TwinStar
(1) Magazine for 2 nozzles
(2) Magazine for 1 nozzle
6.1.3.1 Description
As a default, this nozzle changer is fitted with three magazines, each with two nozzle garages and
one additional magazine which has only one garage. Four nozzle magazine spaces are free and
can be set up with magazines holding one or two garages.
There are two different magazine types available: standard magazines and magazines for special
nozzles or grippers. The magazines are seated on a common support. They are centered with two
parallel pins and fixed in place with two countersunk screws.
(1)
(2)
User manual SIPLACE SX1/SX2 6 Station extensions
From software version SC 706.1 SP1 Version 10/2014 6.1 Nozzle changer
303
6.1.3.2 Technical data
6
6
Nozzle changer for the SIPLACE TwinStar
Dimensions (length x width x height) 314 mm x 68 mm x 49 mm
Number of nozzle holders max. 16 for standard nozzles
4 for special nozzles or grippers
Nozzle types 5xx, standard
4 xx with adapter
9 xx with adapter
Nozzle changeover time Approx. 2 s per nozzle
