6.3 SIPLACE JTF-S/JTF-M
Item no. 00166670-xx SIPLACE JTF-S
Item no. 00166671-xx SIPLACE JTF-M
6
6.3.1 Description
The SIPLACE JTF-S/JTF-M is an automatic and fast changer for standard JEDEC waffle pack
trays. On SIPLACE SX1/SX2 machines, a JTF-S/JTF-M tray feeder can be installed on a fixed
table instead of a component trolley. The SIPLACE JTF-S/JTF-M occupies a fixed area of tracks
on the fixed table. Linear feeders, Glue Feeders or LDU-X can be used on the free tracks.
The SIPLACE JTF-S/JTF-M is available in two versions
– SIPLACE JTF-S
The SIPLACE JTF-S stores a stack of up to 30 thin or 20 thick JEDEC waffle pack trays and
supplies them in succession. The placement machine can be supplied with one component
type at constant changeover time. 6
– SIPLACE JTF-M
Depending on the magazine type, the SIPLACE JTF-M stores up to 18 thin or 14 thick JEDEC
waffle pack trays in an exchangeable cassette and supplies them as required. The placement
machine can therefore be supplied with different component types at variable changeover
times. 6
6
PLEASE NOTE
Available from software version SC.707.1
PLEASE NOTE
For a detailed description, refer to the
"User Manual JTF-S/JTF-M", German+English [Item No. 00197453-xx]
6 Station extensions User manual SIPLACE SX1/SX2
6.3 SIPLACE JTF-S/JTF-M From software version SC 706.1 SP1 Version 10/2014
324
6.3.2 Overview
6

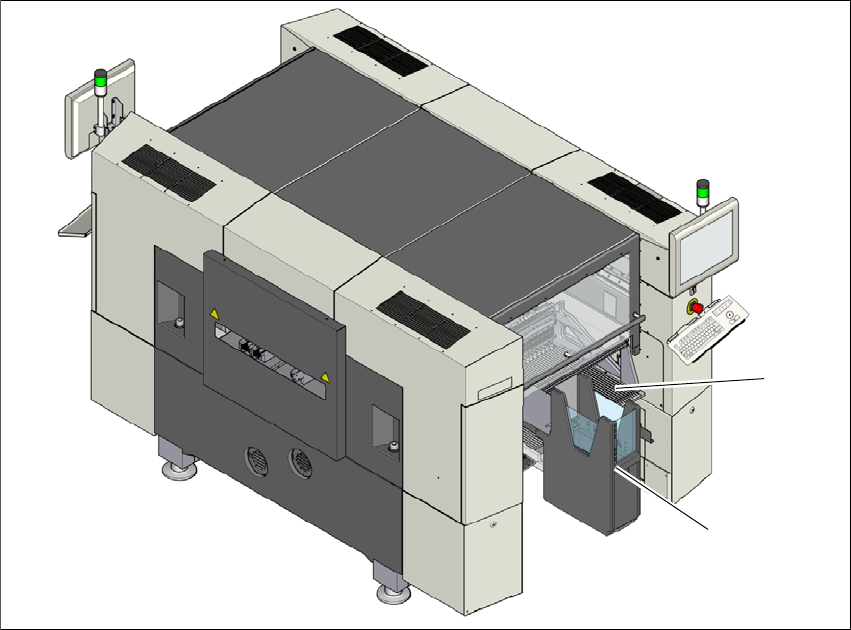

Fig. 6.3 - 1 SIPLACE JTF-S/JTF-M on SIPLACE SX1/SX2
(1) Fixed component table
(2) JTF-S/JTF-M
(1)
(2)
User manual SIPLACE SX1/SX2 6 Station extensions
From software version SC 706.1 SP1 Version 10/2014 6.3 SIPLACE JTF-S/JTF-M
325
6.3.3 Technical data
6
6.3.4 Dimensions with JTF-M/JTF-S
6

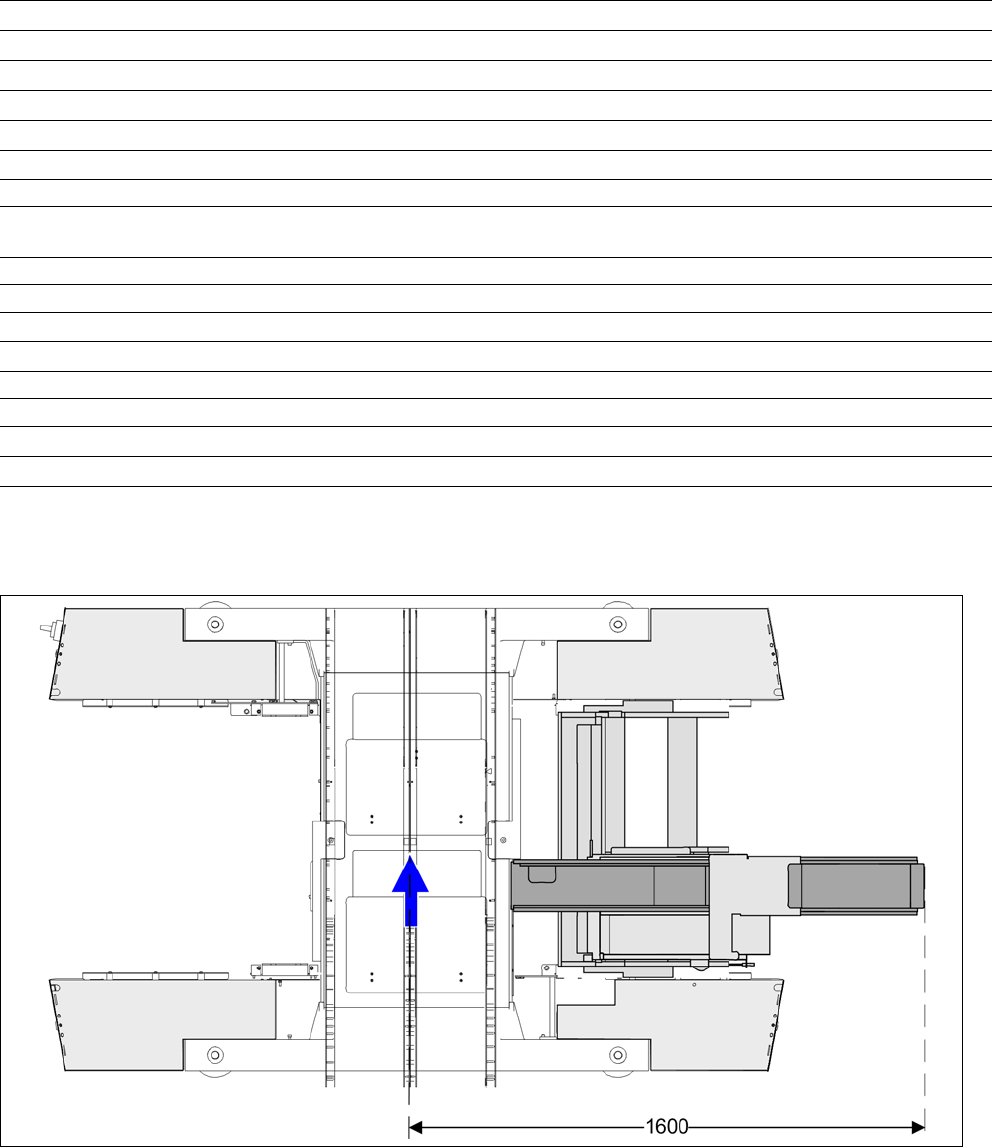

Fig. 6.3 - 2 Dimensions of SX machine with JTF-M/JTF-S
SIPLACE JTF-S SIPLACE JTF-M
Width
162 mm 177 mm
Height
587 mm 587 mm
JEDEC waffle pack tray specification JEDEC Standard: 95-1 & IEC 60286-5
Storage capacity
Waffle pack tray, thin 30 JEDEC waffle pack trays 18 JEDEC waffle pack trays
Waffle pack tray, thick 20 JEDEC waffle pack trays 14 JEDEC waffle pack trays
Waffle pack tray changeover time
< 5 seconds (depending on
application)
--
Slot n to n+1 -- 3.5 seconds
Slot 1 to 18 -- 10 seconds
Slot 18 to 1 -- 8.9 seconds
Cassette
--
Dimensions -- approx. 330 mm x 150 mm x 230 mm
Max. load capacity -- 2.7 kg (150 g each for 18 slots)
Pneumatics
4.1 bar to 5.5 bar 5.2 bar to 9 bar
Compressed air consumption
< 28.3 NL/min. < 28.3 NL/min.
