6 Station extensions User manual SIPLACE SX1/SX2
6.6 Docking station for the component trolley of the SIPLACE SX From software version SC 706.1 SP1 Version 10/2014
330
6.6.2 Technical data
6

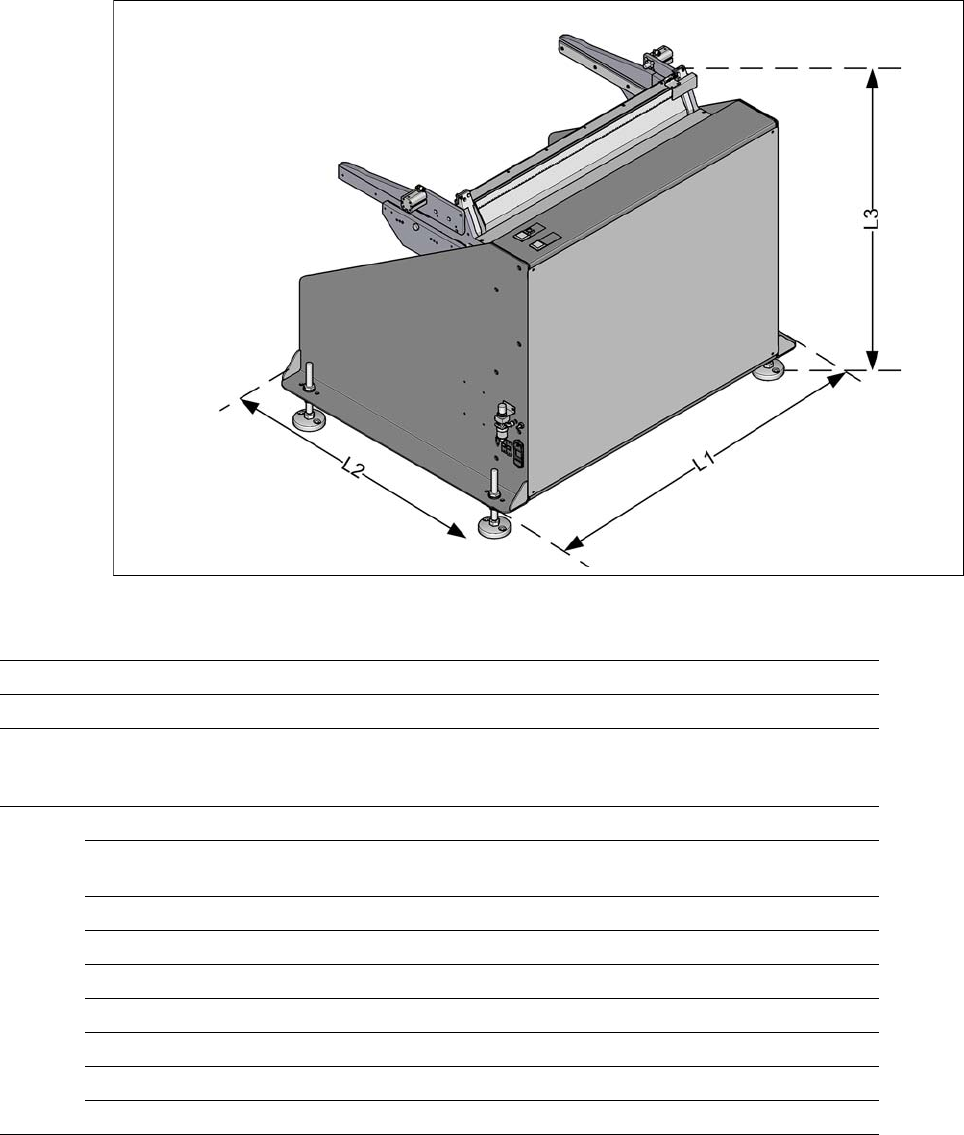

Fig. 6.6 - 2 Docking station, SIPLACE SX-Series - dimensions
6
L1 Length 1038 mm
L2 Width 801.5 mm
L3 Height to centering pin 859 mm for 900 mm PCB conveyor height
889 mm for 930 mm PCB conveyor height
909 mm for 950 mm PCB conveyor height
Weight
Compressed air pressure values p
min
0.5 MPa (5.0 bar)
p
max
1.0 MPa (10.0 bar)
Compressed air connection Connection plug KS 2-M5-A
Rate of flow
*a
5 Nl/min
Supply voltage 88 - 264 V~
Frequency max. 63 Hz
Rated current max. 2 A
Performance 0.23 kW
Fuse 2 x 8 A
*)a Under normal atmospheric conditions at 20°C and 1013 hPa
User manual SIPLACE SX1/SX2 6 Station extensions
From software version SC 706.1 SP1 Version 10/2014 6.6 Docking station for the component trolley of the SIPLACE SX
331
6.6.2.1 Dimensions with docked component trolley
6

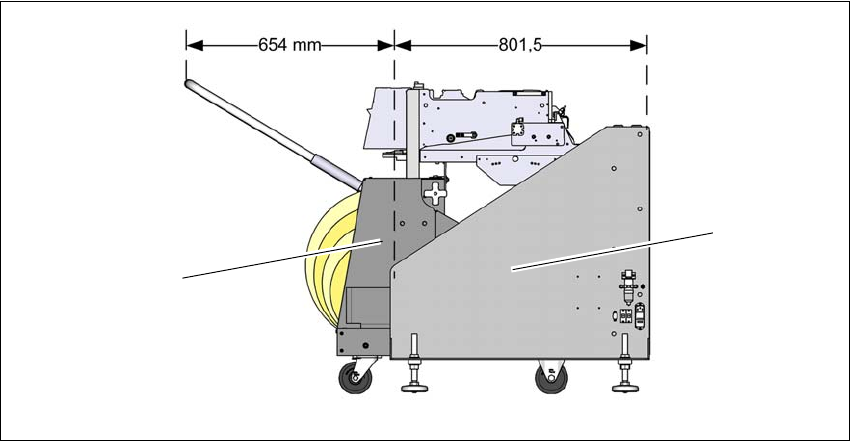

Fig. 6.6 - 3 Docking station with component trolley, SIPLACE SX-Series - dimensions
(1) Component trolley
(2) Docking station
(2)
(1)
6 Station extensions User manual SIPLACE SX1/SX2
6.6 Docking station for the component trolley of the SIPLACE SX From software version SC 706.1 SP1 Version 10/2014
332
6.6.3 Warning labels on the docking station
6

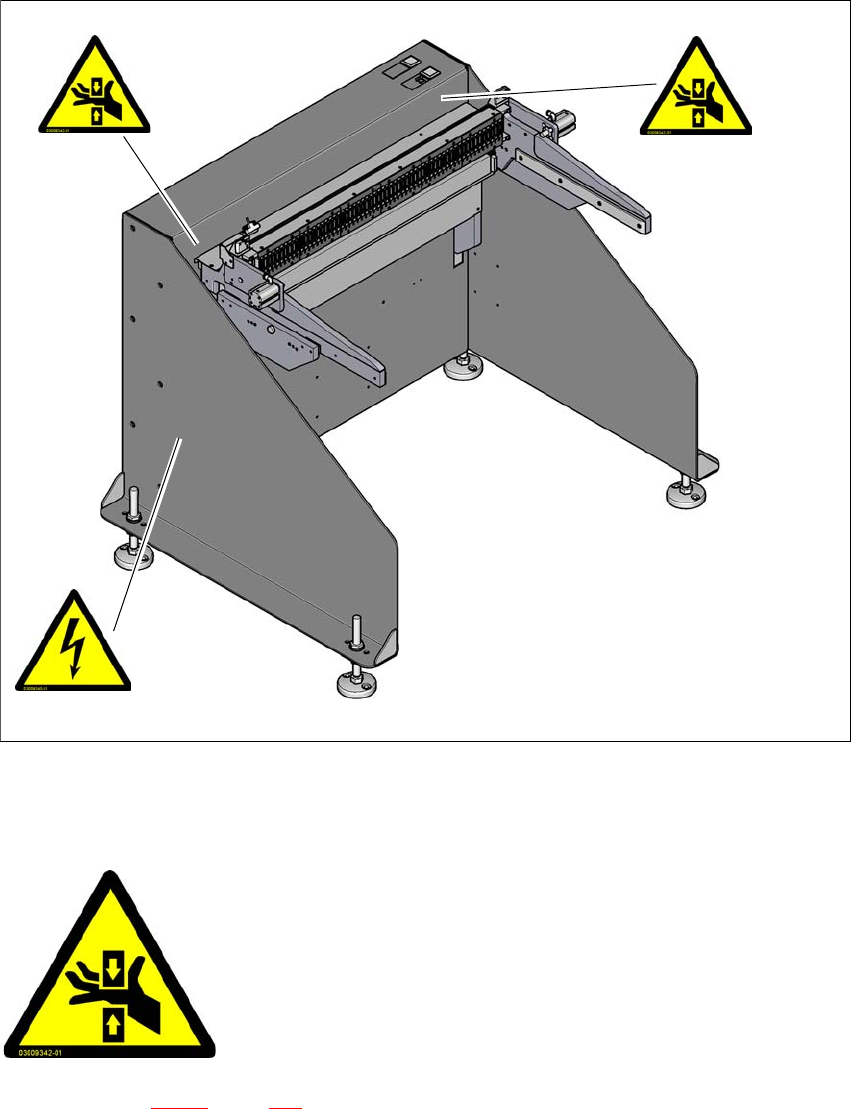

Fig. 6.6 - 4 Docking station, SIPLACE SX-Series - warning labels
6.6.3.1 Warning label W203
6
– W203 in fig. 6.6 - 4, page 332, item no. 03009342-01
– 2x on the docking station for SIPLACE SX component trolley
– 1x each on the left and right, behind the energy and data interface on the housing.
W 203
W 203
W206
