6 Station extensions User ma nual SIPLACE SX1/SX2 6.11 Component camera for the TwinStar , FC camera Fr om software version SC 706.1 SP1 Version 10/2014 342 6.1 1.3 T echnical dat a 6 6 6 6 6.1 1.4 Position The position …
User manual SIPLACE SX1/SX2 6 Station extensions
From software version SC 706.1 SP1 Version 10/2014 6.11 Component camera for the TwinStar, FC camera
341
6.11 Component camera for the TwinStar, FC camera
6.11.1 Stationary P&P component camera (type 25) 16 x 16, digital (FC camera)
Item no. 00119718-xx Stationary component camera 16x16 digital, type 25
6

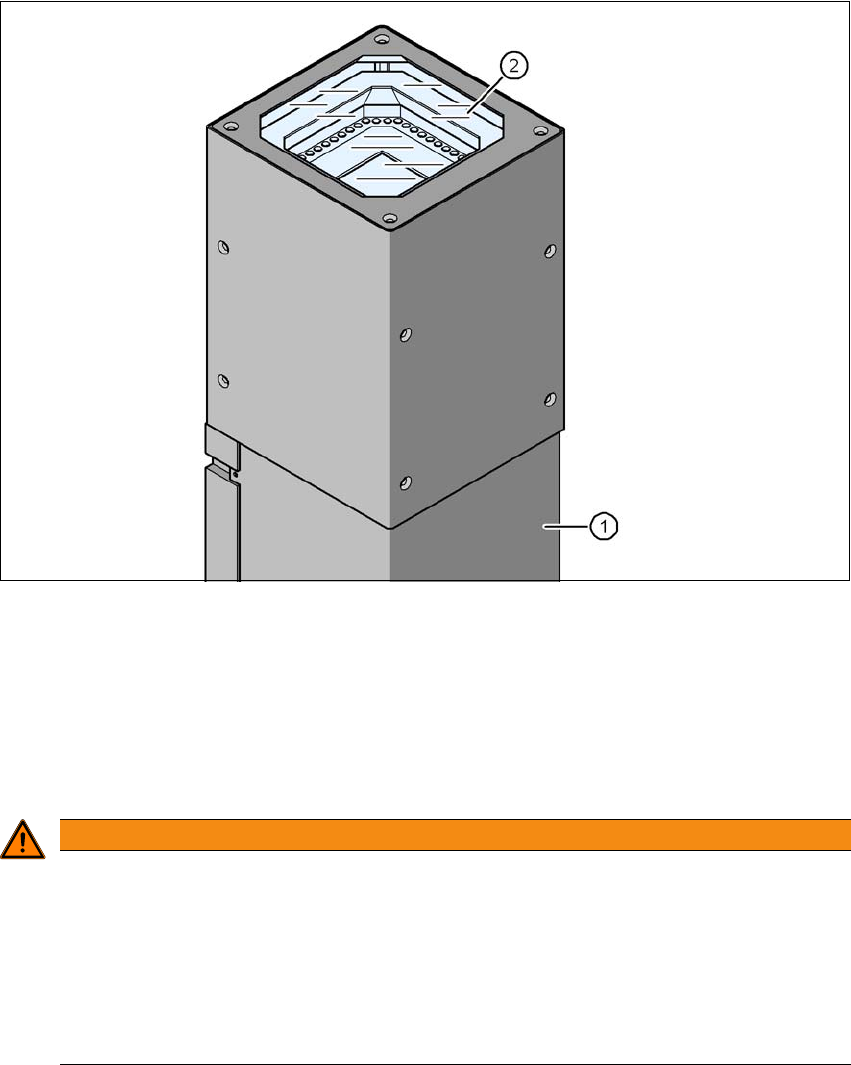

Fig. 6.11 - 1 Stationary P&P component camera (type 25) 16 x 16, digital (FC camera)
(1) Camera housing with integral camera and camera amplifier
(2) Glass plate - illumination and lens levels below
6.11.2 Safety instructions
6
WARNING
Risk of collisions!
When changing the placement head from a TwinStar/VHF to a SpeedStar, the SpeedStar
collides with the camera housing.
Dismantle the stationary component cameras of type 33, 55 x 45, digital and type 25,
16 x 16 digital (FC camera) for the TwinStar.
When changing the placement head from TwinStar to MultiStar, the stationary component
camera, type 33, 55 x 45, digital, is fitted in the bottom position.
6 Station extensions User manual SIPLACE SX1/SX2
6.11 Component camera for the TwinStar, FC camera From software version SC 706.1 SP1 Version 10/2014
342
6.11.3 Technical data
6
6
6
6
6.11.4 Position
The position of the stationary component cameras and the associated configurations are de-
scribed
in section 3.8.2
, from page 139.
Component dimensions 0.2 mm x 0.2 mm up to 16 mm x 16 mm for single component
measurement
Component range 0402 to SO, PLCC, QFP, sockets, plugs, BGA, special components,
bare dies, flip-chips, shields
Min. lead pitch 0.25 mm
Min. lead width 0.1 mm
Min. ball pitch 0.14 mm
Min. ball diameter 0.08 mm
Field of vision 19.4 mm x 19.4 mm
Illumination type Front-illumination (6 levels, programmable as required)
User manual SIPLACE SX1/SX2 6 Station extensions
From software version SC 706.1 SP1 Version 10/2014 6.12 Component camera for the MultiStar
343
6.12 Component camera for the MultiStar
6.12.1 Component camera, stationary P&P, type 33, 55 x 45, digital
Item no. 00519902-xx Stationary camera for the CPP head, type 33
6

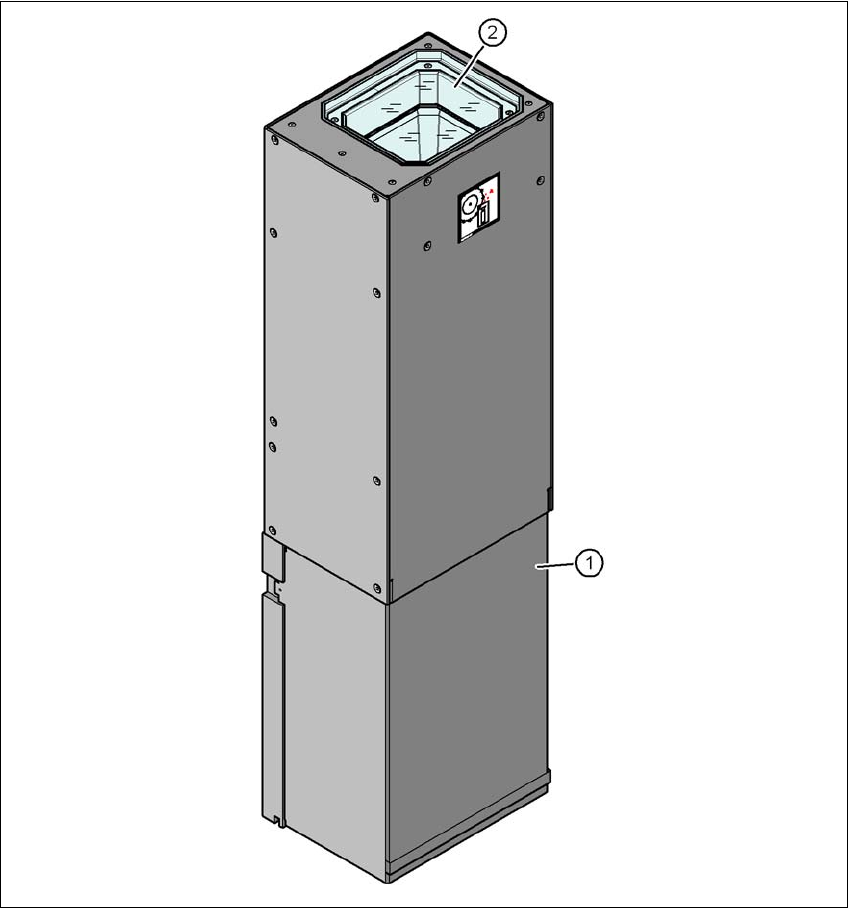

Fig. 6.12 - 1 Structure for the stationary P&P component camera, type 33, 55 x 45, digital
(1) Camera housing with integral camera and camera amplifier
(2) Glass plate - illumination and lens levels below
