2 Operational safety User manual SIPLACE SX1/SX2 2.1 Safety instructions From software version SC 706.1 SP1 Version 10/2014 36 Permission to operate compon ents that are classified as lasers is withdrawn if – Mechanical …
User manual SIPLACE SX1/SX2 2 Operational safety
From software version SC 706.1 SP1 Version 10/2014 2.1 Safety instructions
35
2
2.1.3.2 Safety of operators and other persons
Machine operators must only carry out work for which they have been adequately trained and
with which they are totally familiar.
NEVER open one of the protective covers if you are not totally familiar with the use and func-
tioning of the machine! Do not open the protective covers during operation unless you are told
to do so in this manual or in the station software dialog.
NEVER place your head or arms in the gantry and lifting table traveling range while the station
is switched on!
For your own safety, wear work clothes that conform to the guidelines of the professional as-
sociation, i.e. no wide sleeves etc.
Reduce the risks by not wearing scarves, chains or ties at your work post.
People with long hair must wear a protective head covering.
2
2.1.3.3 Safety of plant and equipment
Never make changes, however minor, unless you are totally aware of the effect they will have
on the overall functioning of the system.
The stations must always be set up, retooled and maintained by appropriately trained person-
nel.
Do not make modifications to the safety equipment. In particular, NEVER deactivate circuit-
breakers or remove safety devices.Safety instructions for laser units
WARNING
Severe injuries and damage to equipment in the case of incorrect usage!
In the event of the machine being incorrectly used, movement of the gantries or lifting ta-
bles, for example, can lead to severe injuries and considerable damage to equipment.
Safe operation of the machine requires correct usage by qualified staff with observance
of all warnings.
Some work on the machine (e.g. setting up) requires training that goes beyond the scope
of this manual.
WARNING
Dangerous voltage levels!
The system is electrically driven. Certain parts carry dangerous voltage levels.
There is a risk of death, severe injury and/or considerable damage to equipment if these
instructions are not followed.
Switch off at the main switch and disconnect the placement machine from the power
supply before carrying out any work on live components.
Lock the machine as described in section 2.11, page 87.
2 Operational safety User manual SIPLACE SX1/SX2
2.1 Safety instructions From software version SC 706.1 SP1 Version 10/2014
36
Permission to operate components that are classified as lasers is withdrawn if
– Mechanical damage to the unit is observed, or
– Any work is done on the mechanical or electrical parts of the unit. Even damaged or miss-
ing screw locking paint on laser components (e.g. cover plates, fasteners, adjusting po-
tentiometer) counts as work.
– Only ASM Assembly Systems GmbH&Co.KG service engineers or the machine owner's
service engineers, who have been trained by ASM, may replace laser components.
– Repairs to laser units are carried out at the ASM factory exclusively.
2.1.4 Safety instructions on permanent magnets
Powerful permanent magnets are used for the linear motors of the X and Y axes.
2
2
2
2
DANGER
Danger to life from powerful magnetic fields inside the machine!
When protective covers are opened inside the machine, the life of persons with the follow-
ing passive or active implants is put at risk:
– Pacemakers
– Defibrillators
– Insulin pumps etc.
At-risk people must not stand in the immediate vicinity of the machine.
WARNING
DANGER OF CRUSHING!
There is a danger of crushing for persons with passive metal implants (e.g. plates,
screws).
Never reach into the machine when the protective covers are open and do not bend
over the open machine.
Do not bring any metal objects into the danger area.
CAUTION
Data loss due to powerful magnetic fields!
There is a risk that the powerful magnetic fields could corrupt data on data media or credit
cards and check cards.
Keep data carriers and check cards away from the machine.
User manual SIPLACE SX1/SX2 2 Operational safety
From software version SC 706.1 SP1 Version 10/2014 2.1 Safety instructions
37

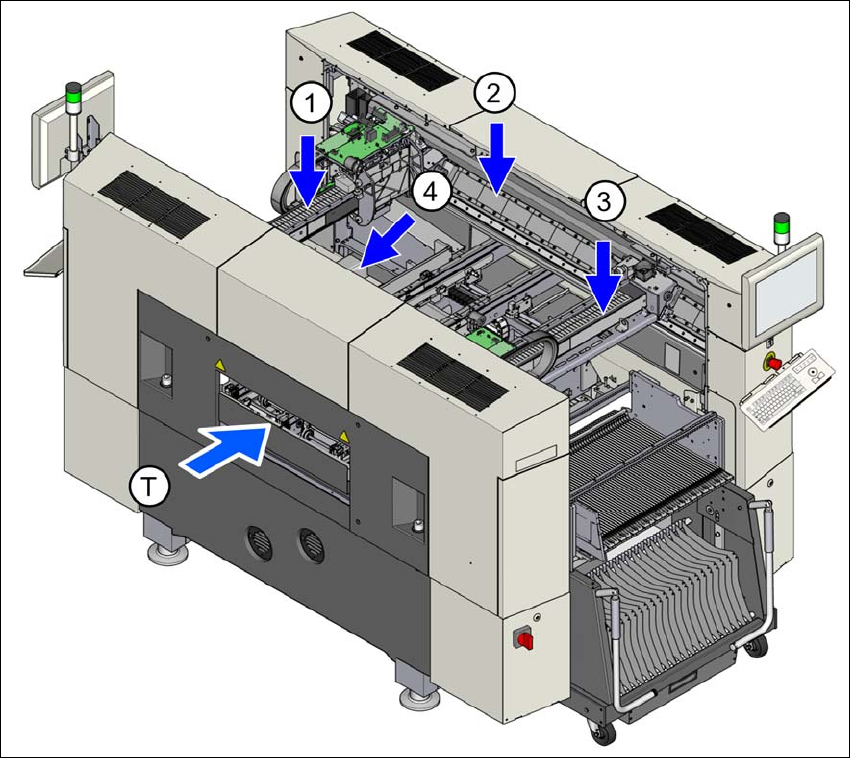

Fig. 2.1 - 1 Position of the permanent magnets for the linear drives
(1) Permanent magnets for X linear motors on gantry 2
(2) Permanent magnets for Y linear motors on gantry 1 and gantry 2 (for loose or fixed bearing)
(3) Permanent magnets for X linear motors on gantry 1
(4) Permanent magnets for Y linear motors on gantry 1 and gantry 2 (for loose or fixed bearing)
(T) Direction of PCB transport
