User manual SIPLACE SX1/SX2 2 Operational safety From software version SC 706.1 SP1 Version 10/2014 2.2 Warning labels 41 2 2.2.1.1 W arning label W201 2 W201 in fig. 2.2 - 1 , page 39 , item no. 03009338- 01 (quantity p…
2 Operational safety User manual SIPLACE SX1/SX2
2.2 Warning labels From software version SC 706.1 SP1 Version 10/2014
40

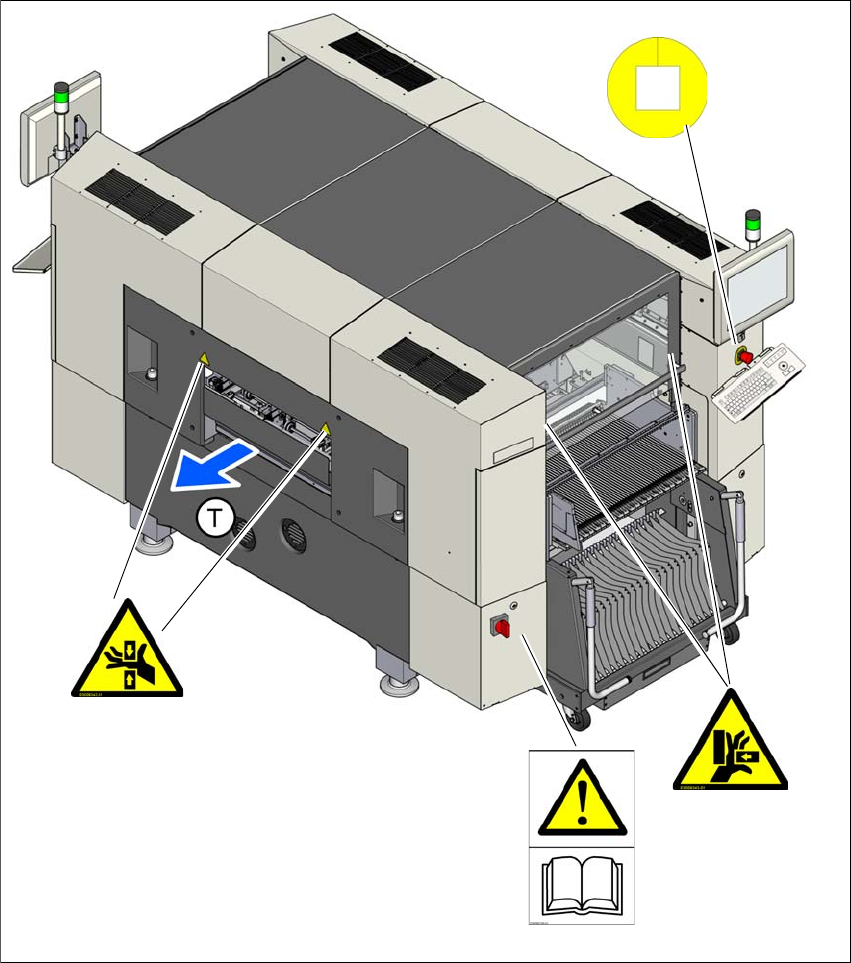

Fig. 2.2 - 2 Warning labels W201, W203, W204 and W210 on the machine - part 2
W201, item no. 03009338-01
W203, item no. 03009342-01
W204, item no. 03009343-01
W210, item no. 03009350-01
(T) Direction of PCB transport
W 210
W 204
W 203
W 201
User manual SIPLACE SX1/SX2 2 Operational safety
From software version SC 706.1 SP1 Version 10/2014 2.2 Warning labels
41
2

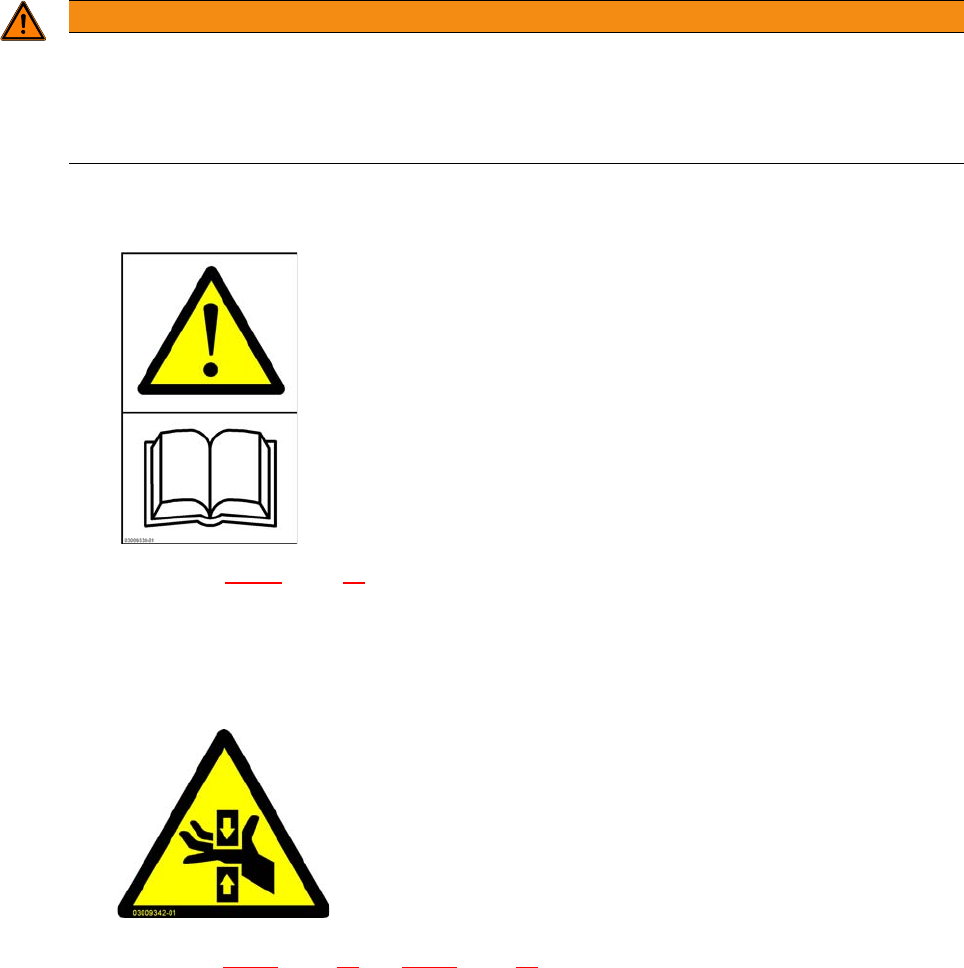

2.2.1.1 Warning label W201
2
W201 in fig. 2.2 - 1, page 39, item no. 03009338-01 (quantity per machine: 1)
2.2.1.2 Warning label W203
2
W203 in fig. 2.2 - 1, page 39 and 2.2 - 2, page 40, item no. 03009342-01 (quantity per machine: 4)
WARNING
Damage to warning labels!
The warning labels can be damaged or destroyed by abrasive cleaning agents or solvents.
Do not use abrasive cleaners or solvents for cleaning warning labels.
Replace any damaged or illegible warning labels.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on
the operator being familiar with the user manual and
safety instructions and putting them into effect.
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running!
2 Operational safety User manual SIPLACE SX1/SX2
2.2 Warning labels From software version SC 706.1 SP1 Version 10/2014
42

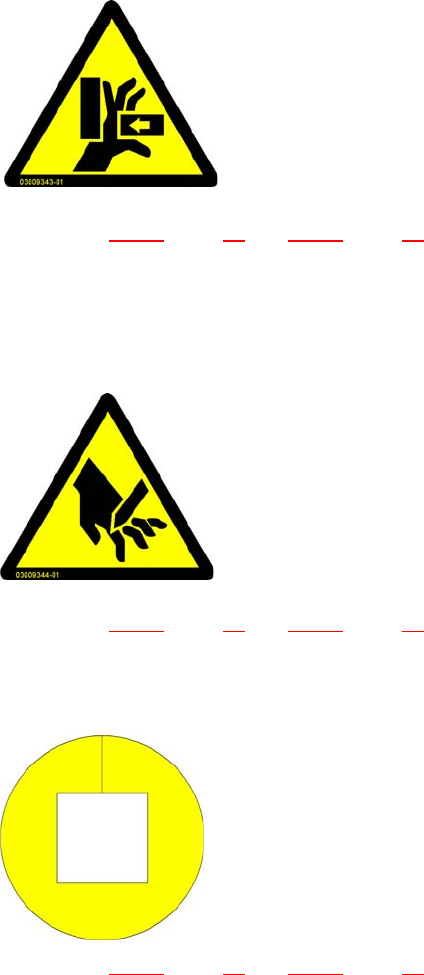

2.2.1.3 Warning label W204
2
W204 in fig. 2.2 - 1, page 39 and 2.2 - 2, page 40, item no. 03009343-01 (quantity per machine: 4)
2.2.2 Warning label 205
Warning labels on tape cutter and used tape chute
2
W205 in fig. 2.2 - 4, page 45 and 2.2 - 5, page 46, item no. 03009344-01 (quantity per machine: 4)
2.2.2.1 Warning label W210
2
W210 in fig. 2.2 - 1, page 39 and 2.2 - 2, page 40, item no. 03009350-01 (quantity per machine: 2)
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
2
2
2
2
2
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the machine is
switched off
2
2
2
2
2
2
Warning label on the EMERGENCY STOP button
