User manual SIPLACE SX1/SX2 2 Operational safety
From software version SC 706.1 SP1 Version 10/2014 2.2 Warning labels
51
2.2.7 High temperatures on the Head Control Unit (HCU)
1 in fig. 2.2 - 10, temperature label, item no. 03031926-01 (2 to 4, depending on head configura-
tion).
2

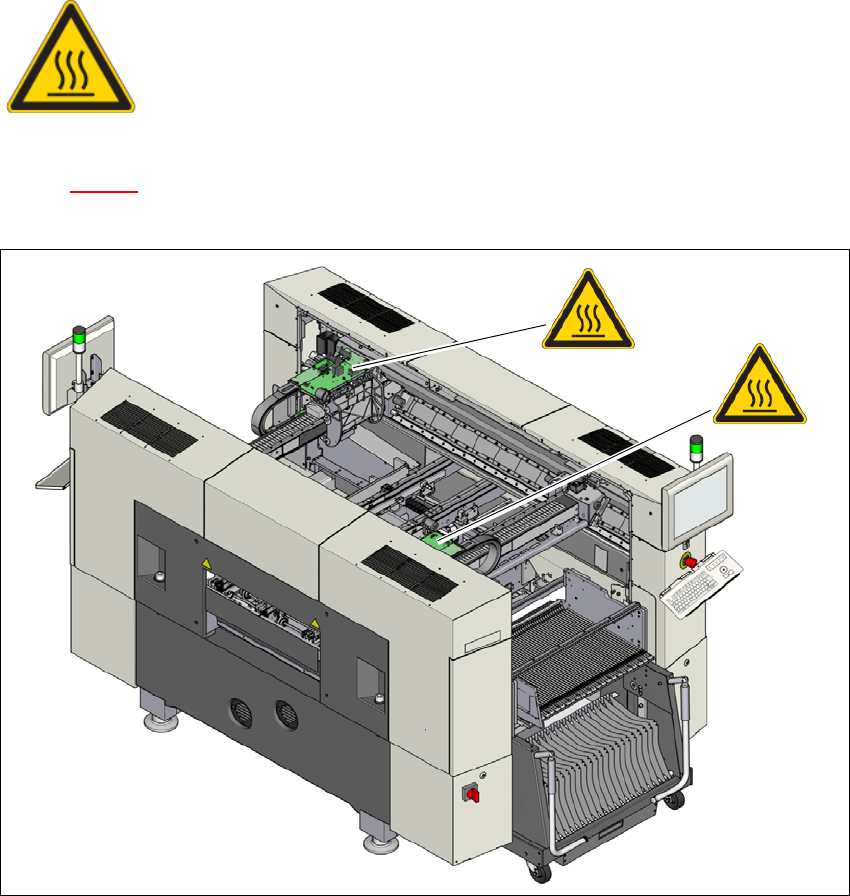

Fig. 2.2 - 10 Temperature label on the Head Control Unit (HCU)
2
RISK OF BURNS FROM HIGH TEMPERATURES!
The housing of the Head Control Unit (HCU) can become hot during contin-
uous operation.
Take care when touching the Head Control Unit (HCU).
(1)
(1)
2 Operational safety User manual SIPLACE SX1/SX2
2.2 Warning labels From software version SC 706.1 SP1 Version 10/2014
52
2.2.8 "Head crash" label on the IC camera of the TwinStar
"Head crash" label in fig. 2.2 - 11, item no. 03015392-02
(quantity per machine: maximum 2)
2

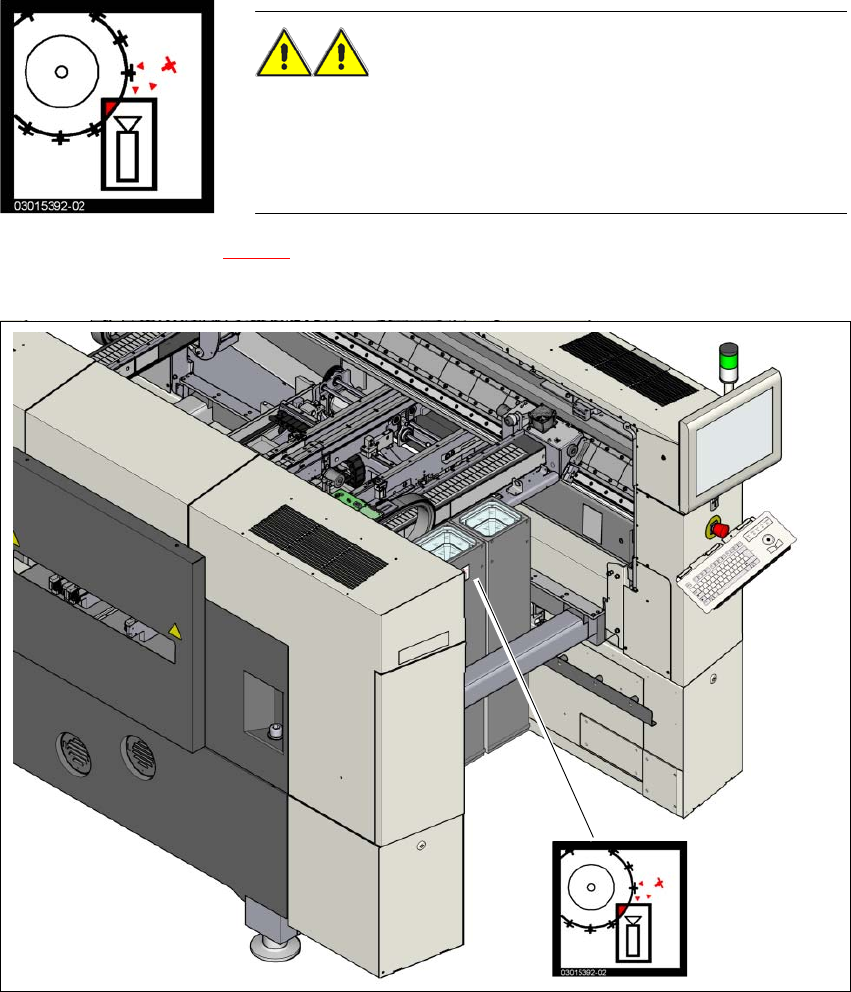

Fig. 2.2 - 11 "Head crash" label on the IC camera of the TwinStar
(1) "Head crash" label on the IC camera of the TwinStar
WARNING RISK OF HEAD CRASH 2
When changing the placement head from a TwinStar/VHF to a
SpeedStar, the SpeedStar collides with the camera housing.
Dismantle the stationary component cameras of type 33, 55 x 45,
and type 25, 16 x 16 for the TwinStar.
(1)
User manual SIPLACE SX1/SX2 2 Operational safety
From software version SC 706.1 SP1 Version 10/2014 2.2 Warning labels
53
2.2.9 Warning label on PCB conveyor
2
Fig. 2.2 - 12 Warning label "Sensitive conveyor sides" on clamping plate of PCB conveyor
2.2.9.1 Warning label "Sensitive conveyor sides"
2
Item no. 03110412-01 (1 on each conveyor side and placement area)
Sensitive conveyor sides!
The conveyor sides are highly sensitive and may not be moved
unless the brakes have been released.
Moving the sides without releasing the brakes can cause irrepa-
rable damage to the conveyor sides.
