2 Operational safety User manual SIPLACE SX1/SX2 2.5 Safety instructions for operating the SX1/SX2 machine From software version SC 706.1 SP1 Version 10/2014 60 2.5.5 Safety instructions for the compone nt cameras of the…
User manual SIPLACE SX1/SX2 2 Operational safety
From software version SC 706.1 SP1 Version 10/2014 2.5 Safety instructions for operating the SX1/SX2 machine
59
2.5.4 Safety instructions for manual movement of Z axis on TwinStar
2
2

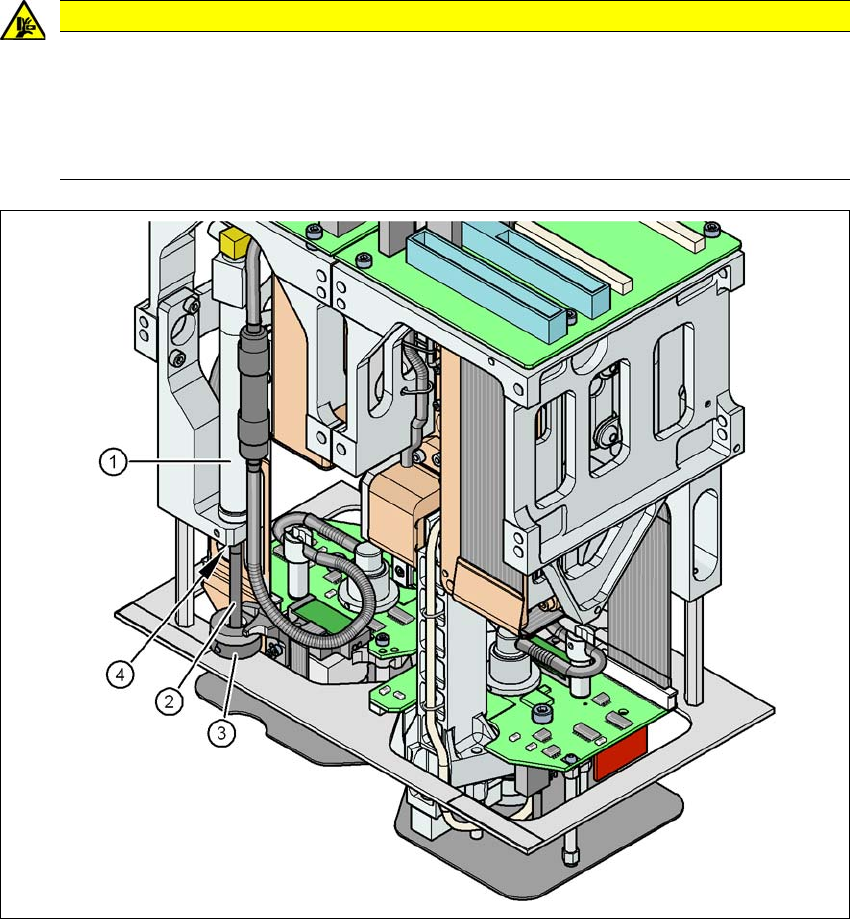

Fig. 2.5 - 2 Risk of crushing by return unit on TwinStar
(1) Return unit, compressed air cylinder
(2) Piston rod
(3) Bumper of the return unit
(4) Risk of crushing finders here
CAUTION
Risk of crushing on TwinStar!
The strong spring tension of the cylinder moves the buffer back very quickly and could
injure your fingers. The same warning applies to the inside of the TwinStar, when the pis-
ton rod moves back to its original position.
NEVER move the Z axis down with your hand at the buffer of the return unit.
2 Operational safety User manual SIPLACE SX1/SX2
2.5 Safety instructions for operating the SX1/SX2 machine From software version SC 706.1 SP1 Version 10/2014
60
2.5.5 Safety instructions for the component cameras of the TwinStar during place-
ment head change
2
2.5.6 ESD safety of machine
2
2.5.7 Safety instructions for correct fitting of the reject bin
Observe the following instructions to avoid risk of collision between the placement head and com-
ponent or the nozzle reject bin:
Make sure, that the reject bin is seated correctly in its mount.
Check that the reject bin does not project over the mount.
2
WARNING
Risk of collisions!
When changing the placement head from a TwinStar/VHF to a SpeedStar, the SpeedStar
collides with the camera housing.
Dismantle the stationary component cameras of type 33, 55 x 45, and type 25, 16 x
16 for the TwinStar.
PLEASE NOTE
Requirements for ESD safety of machines
Only use nozzles that are identified as conductive.
PLEASE NOTE
A sensor (see section 6.7
, page 333) which indicates the correct position of the reject bin
can be retrofitted for each reject bin.
User manual SIPLACE SX1/SX2 2 Operational safety
From software version SC 706.1 SP1 Version 10/2014 2.5 Safety instructions for operating the SX1/SX2 machine
61
2.5.8 Safety instructions for using the nozzle changer
Observe the following instructions to avoid risk of collision between the placement head and the
nozzle changer.
2
2
WARNING
Risk of head crashes with mixed configurations!
There is a risk of head crashes with mixed configurations.
Only install the associated nozzle changer for each placement head, with the nozzle
magazines for the respective placement head.
WARNING
Risk of head crashes with protruding lever!
A lever which projects above the magazine could lead to a placement head crash.
You should therefore make sure that the lever does not protrude over the magazines.
