- - 4. E LECT R IC CO MP ON ENTS (1) 3 6 3 6 3 7 3 8 4 1 4 2 4 2 3 5 1 2 1 3 1 4 1 5 1 7 2 0 2 1 2 2 2 1 2 0 2 2 2 3 2 4 2 5 2 6 2 8 2 9 3 0 3 1 3 2 3 3 5 4 3 4 1 7 6 2 7 7 3 7 8 4 5 5 4 6 7 8 9 1 0 1 1 9 1 0 1 1 4 6 …
- -

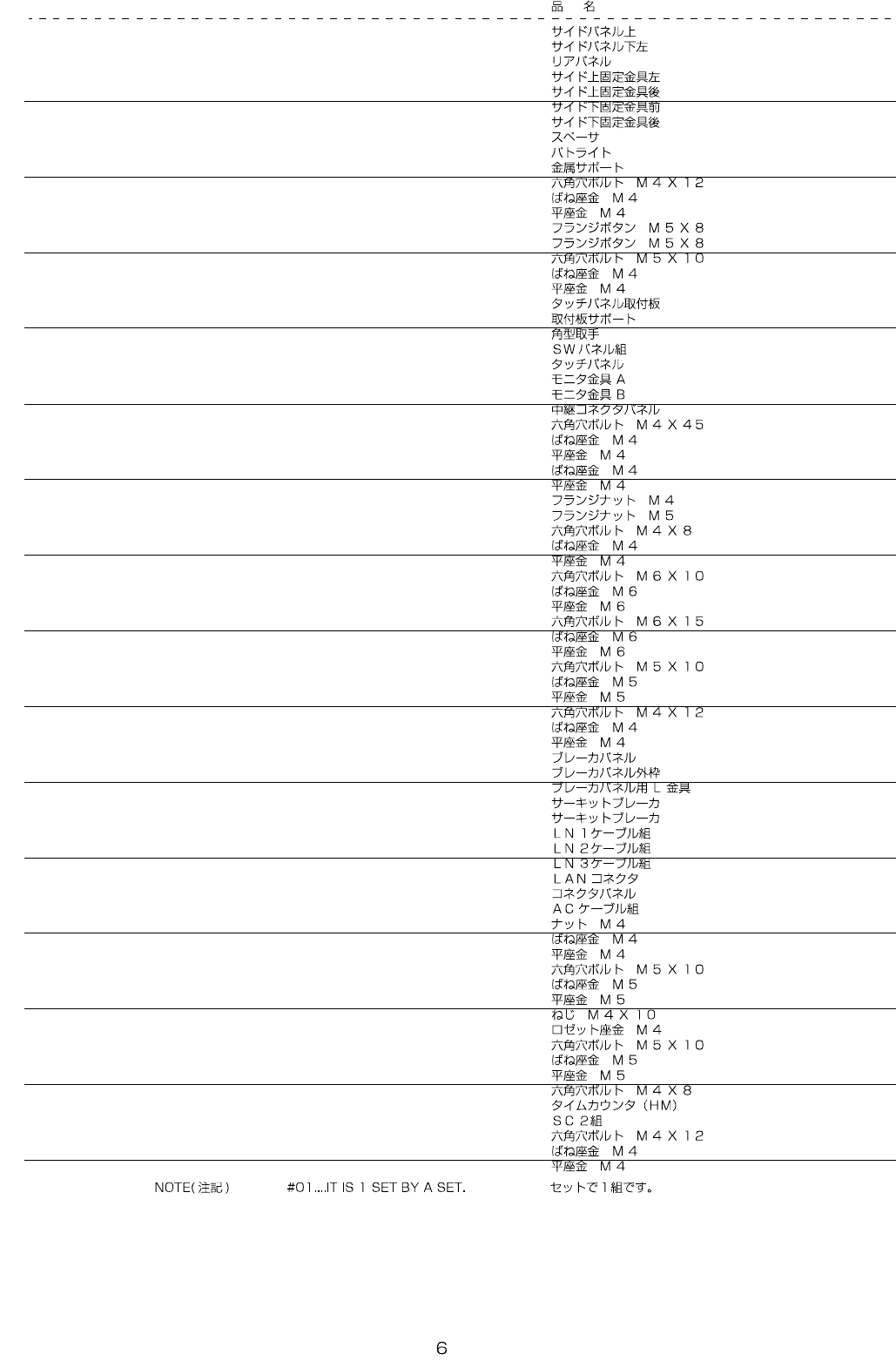

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
401-24228 SIDE PANEL UPPER 1
2 401-24230 SIDE PANEL LOWER LEFT 1
3 401-24231 REAR PANEL 1
4 401-24233 SIDEUPPER METAL FITTING LEFT 1
5 401-24232 SIDEUPPER METAL FITTING REAR 2
6 401-24235 SIDELOWER METAL FITTING FRONT 4
7 401-24236 SIDELOWER METAL FITTING REAR 4
8
#01
401-24240 SPACER 1
9 401-24315 PATROL LIGHT 1
10 401-24248 METAL SUPPORT 6
11 - BOLT M4X12 4
12 - SPRING WASHER M4 4
13 - WASHER M4 4
14 - SCREW M5X8 22
15 - SCREW M5X8 20
16 - BOLT M5X10 4
17 - SPRING WASHER M4 4
18 - WASHER M4 4
19 401-24203 TOUCH PANEL ATTACHMENT PLATE 1
20
#01
401-24204 ATTACHMENT PLATE SUPPORT 1
21 401-24217 SQUARE SHAPED PULL 2
22 401-24313 SW PANEL ASM 1
23 401-21297 TOUCH PANEL 1
24
#01
401-24249 MONITOR METAL FITTING A 1
25 401-24250 MONITOR METAL FITTING B 1
26 401-24246 RELAY CONNECTOR PANEL 1
27 - BOLT M4X45 6
28 - SPRING WASHER M4 6
29 - WASHER M4 6
30 - SPRING WASHER M4 1
31 - WASHER M4 1
32 - NUT M4 4
33 - NUT M5 4
34 - BOLT M4X8 2
35 - SPRING WASHER M4 2
36 - WASHER M4 2
37 - BOLT M6X10 8
38 - SPRING WASHER M6 8
39 - WASHER M6 8
40 - BOLT M6X15 4
41 - SPRING WASHER M6 4
42 - WASHER M6 4
43 - BOLT M5X10 4
44 - SPRING WASHER M5 4
45 - WASHER M5 4
46 - BOLT M4X12 4
47 - SPRING WASHER M4 4
48 - WASHER M4 4
49 401-24241 BREAKER PANEL 1
50 401-24242 BREAKER PANEL FRAME 1
51 401-24243 BREAKER PANEL METAL FITTING L 1
52 401-21280 CIRCUIT BREAKER 1
53 401-21281 CIRCUIT BREAKER 2
54 401-23401 NL1 CABLE ASM 1
55 401-24302 NL2 CABLE ASM 1
56 401-24303 NL3 CABLE ASM 1
57 401-24393 LAN CONNECTOR 1
58 401-24244 CONNECTOR PANEL 1
59 401-24327 AC CABLE ASM 1
60 - NUT M4 4
61 - SPRING WASHER M4 4
62 - WASHER M4 4
63 - BOLT M5X10 2
64 - SPRING WASHER M5 2
65 - WASHER M5 2
66 - SCREW M4X10 6
67 - WASHER M4 6
68 - BOLT M5X10 2
69 - SPRING WASHER M5 2
70 - WASHER M5 2
71 - BOLT M4X8 1
72 401-21290 TIME COUNTER (HM) 1
73 40124325 SC2 ASM 1
74 - BOLT M4X12 1
75 - SPRING WASHER M4 1
76 - WASHER M4 1
- -

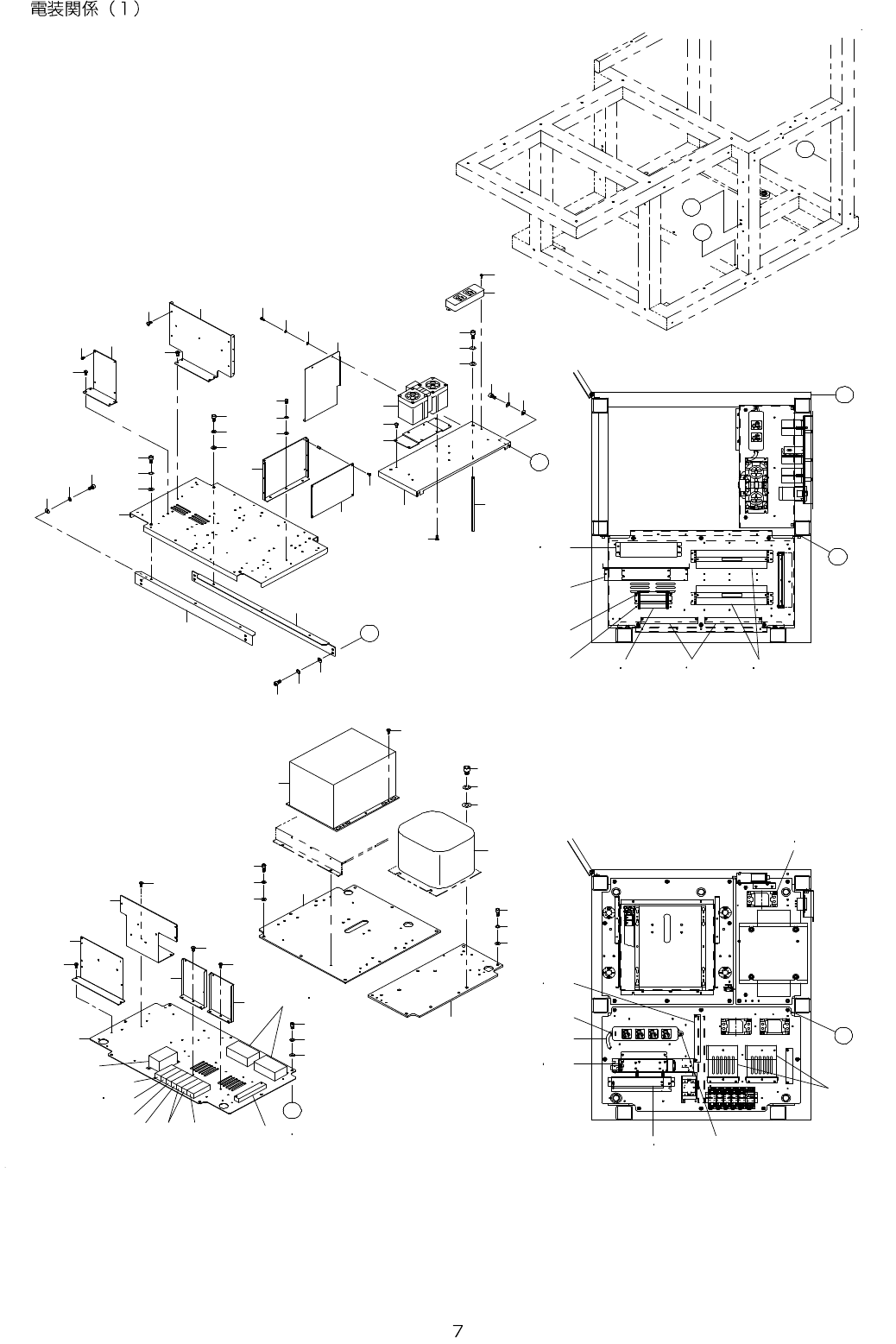

4. ELECTRIC COMPONENTS (1)
3 6
3 6
3 7
3 8
4 1
4 2
4 2
3 5
1 2
1 3
1 4
1 5
1 7
2 0
2 1
2 2
2 1
2 0
2 2
2 3
2 4
2 5
2 6
2 8
2 9
3 0
3 1
3 2
3 3
5 4
3 4
1 7 6
2 7 73 7 8
4
5 5 4
6
7
8
9
1 0
1 1
9
1 0
1 1
4 6
4 7 5 4
4 8 6 4
4 9
4 3 8 5
5 2
5 1 5 0
5 5 5 6
5 7 5 8
5 9 6 7
6 0
1 9
1 8
A
A
B
B
1 6
6 2
6 3
4 5
C
C
4 4 5 4
5 1
5 3
4 0
3 9
B
A
C
5 4
5 4
5 4
5 4
5 4
6 6
6 5
6 9
7 0
7 1
7 2
7 0
7 1
7 2
7 3
7 4
7 5
6 1
7 9
8 0
8 1
2 7
8 1
8 2
8 3
8 4
6 8
- -

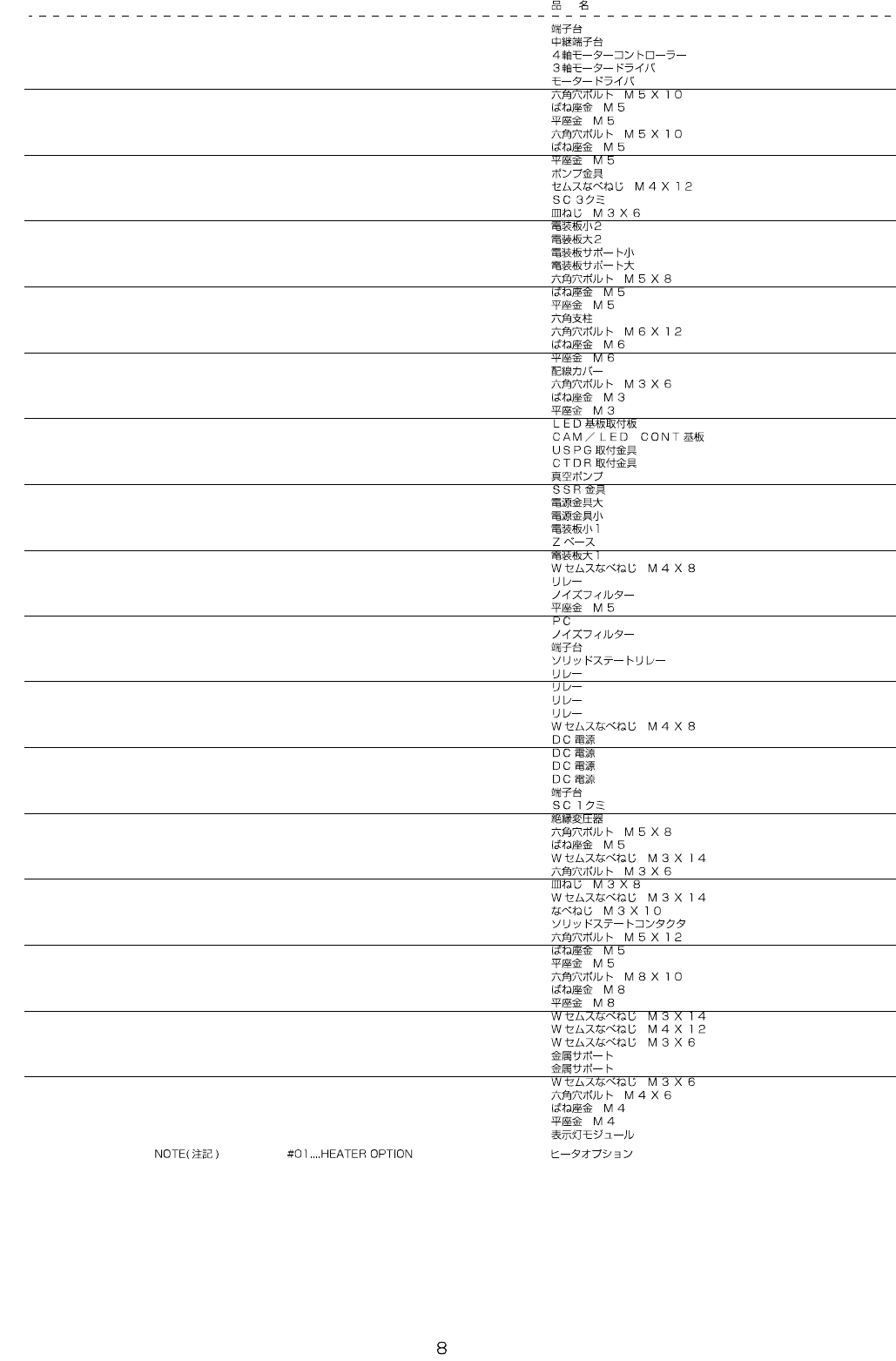

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-24291 TERMINAL BLOCK 2
2 401-24298 RELAY TERMINAL BOX 2
3 401-21283 4AXIS MOTOR CONTROL 3
4 401-21284 3AXIS MOTOR DRIVER 2
5 401-21285 MOTOR DRIVER 1
6 - BOLT M5X10 2
7 - SPRING WASHER M5 2
8 - WASHER M5 2
9 - BOLT M5X10 8
10 - SPRING WASHER M5 8
11 - WASHER M5 8
12 401-24547 PUMP METAL FITTINGS 1
13 - SCREW M4X12 4
14 401-24326 SC3 ASM 1
15 - SCREW M3X6 1
16 401-24538 ELECTRIC EQUIPMENT BOARD SMALL2 1
17 401-24535 ELECTRIC EQUIPMENT BOARD LARGE2 1
18 401-24539 ELECTRIC EQUIPMENT BOARD SUPPORT SMALL 1
19 401-24540 ELECTRIC EQUIPMENT BOARD SUPPORT LARGE 1
20 - BOLT M5X8 6
21 - SPRING WASHER M5 6
22 - WASHER M5 6
23 401-24524 HEXAGONAL POSTS 2
24 - BOLT M6X12 2
25 - SPRING WASHER M6 2
26 - WASHER M6 2
27 401-24550 WIRING COVER 1
28 - BOLT M3X6 3
29 - SPRING WASHER M3 3
30 - WASHER M3 3
31 401-24541 LED BOARD ADAPTOR PLATE 1
32 - CAM/LED CONT PCB 1
33 401-24537 USPG METAL FITTINGS 1
34 401-24536 CTDR METAL FITTINGS 1
35 401-23152 VACUUM PUMP 1
36 401-24534 SSR METAL FITTINGS 2
37 401-24532 POWER SUPPLY METAL FITTINGS LARGE 1
38 401-24533 POWER SUPPLY METAL FITTINGS SMALL 1
39 401-24530 ELECTRIC EQUIPMENT BOARD SMALL1 1
40 - Z BASE 1
41 401-24531 ELECTRIC EQUIPMENT BOARD LARGE1 1
42 - SCREW M4X8 10
43 401-21278 RELAY 1
44 401-24286 NOISE FILTER 1
45 - WASHER M5 8
46 401-21282 PC 1
47 401-24287 NOISE FILTER 2
48 401-24289 TERMINAL BLOCK 1
49
#01
401-24398 SOLID STATE RELAY 1
50 401-21274 RELAY 1
51 401-21275 RELAY 3
52 401-21276 RELAY 1
53 401-21277 RELAY 1
54 - SCREW M4X8 38
55 401-21270 DC POWER 1
56 401-21273 DC POWER 1
57 401-21271 DC POWER 1
58 401-21272 DC POWER 1
59 401-24290 TERMINAL BLOCK 1
60 401-24324 SC1 ASM 1
61 401-24304 INSULATING TRANSFORMER 1
62 - BOLT M5X8 8
63 - SPRING WASHER M5 8
64 - SCREW M3X14 2
65 - BOLT M3X3 1
66 - SCREW M3X8 1
67 - SCREW M3X14 2
68 - SCREW M3X10 4
69 40124288 SOLID STATE CONTACTOR 2
70 - BOLT M5X12 14
71 - SPRING WASHER M5 14
72 - WASHER M5 14
73 - BOLT M8X10 4
74 - SPRING WASHER M8 4
75 - WASHER M8 4
76 - SCREW M3X14 4
77 - SCREW M4X12 4
78 - SCREW M3X6 8
79 40124525 METAL SUPPORT 4
80 40124526 METAL SUPPORT 8
81 - SCREW M3X6 8
82 - BOLT M4X6 3
83 - SPRING WASHER M4 3
84 - WASHER M4 3
85 401-21279 TELLTALE LIGHT MODULE 1
