- - 6. P EP PER P O D & PUS H UP U NI T 1 3 4 7 8 9 1 0 1 1 1 2 1 3 1 4 1 4 6 1 6 1 7 1 7 1 8 1 8 1 9 1 9 2 0 2 1 2 5 2 6 2 7 2 8 5 2 9 3 0 3 1 2 3 2 3 3 3 4 3 2 3 5 3 6 3 7 3 7 3 8 5 4 A A 4 4 5 9 6 0 5 4 4 1 6 1 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-24543 DRIVER METAL FITTINGS LOWER 1
2 401-24544 DRIVER METAL FITTINGS UPPER 1
3 401-24545 WIRING BAR 2
4 401-24546 DRIVER PLATE 4
5 401-24548 LIGHT SOURCE METAL FITTINGS LOWER 1
6 401-24549 LIGHT SOURCE METAL FITTINGS UPPER 1
7 401-24252 C SENSOR BRACKET UPPER 1
8 401-24253 C SENSOR BRACKET LOWER 1
9 401-21286 SERVO DRIVER (SV-DRV1-3,5) 4
10 401-21289 DRIVER (SV-DRV4,6) 2
11 HM-0008300-00 PROPELLER FAN 1
12 401-24542 HEXAGONAL POSTS 4
13 401-24385 SCREEN 1
14 401-21287 ELECTROMAGNETISM CONTACT MACHINE 1
15 401-21278 RELAY (RY1-4) 4
16 401-24292 TERMINAL BLOCK 1
17 401-21293 LED LIGHTING POWER SUPPLY 1
18
#01
401-24363 TRANSMISSION SENSOR 1
19 - SCREW M4X8 4
20 - SCREW M4X8 8
21 - SCREW M4X8 8
22 - BOLT M5X12 4
23 - SPRING WASHER M5 4
24 - WASHER M5 4
25 - BOLT M4X8 2
26 - SPRING WASHER M4 2
27 - WASHER M4 2
28 - BOLT M3X6 2
29 - SPRING WASHER M3 2
30 - WASHER M3 2
31 - BOLT M4X8 4
32 - SPRING WASHER M4 4
33 - WASHER M4 4
34 - SCREW M4X8 6
35 - SCREW M3X15 3
36 - SCREW M5X10 8
37 - SCREW M4X20 4
38 - NUT M4 4
39 401-21279 TELLTALE LIGHT MODULE 4
40 401-21288 MAGNETIC CONTACTOR 1
- -

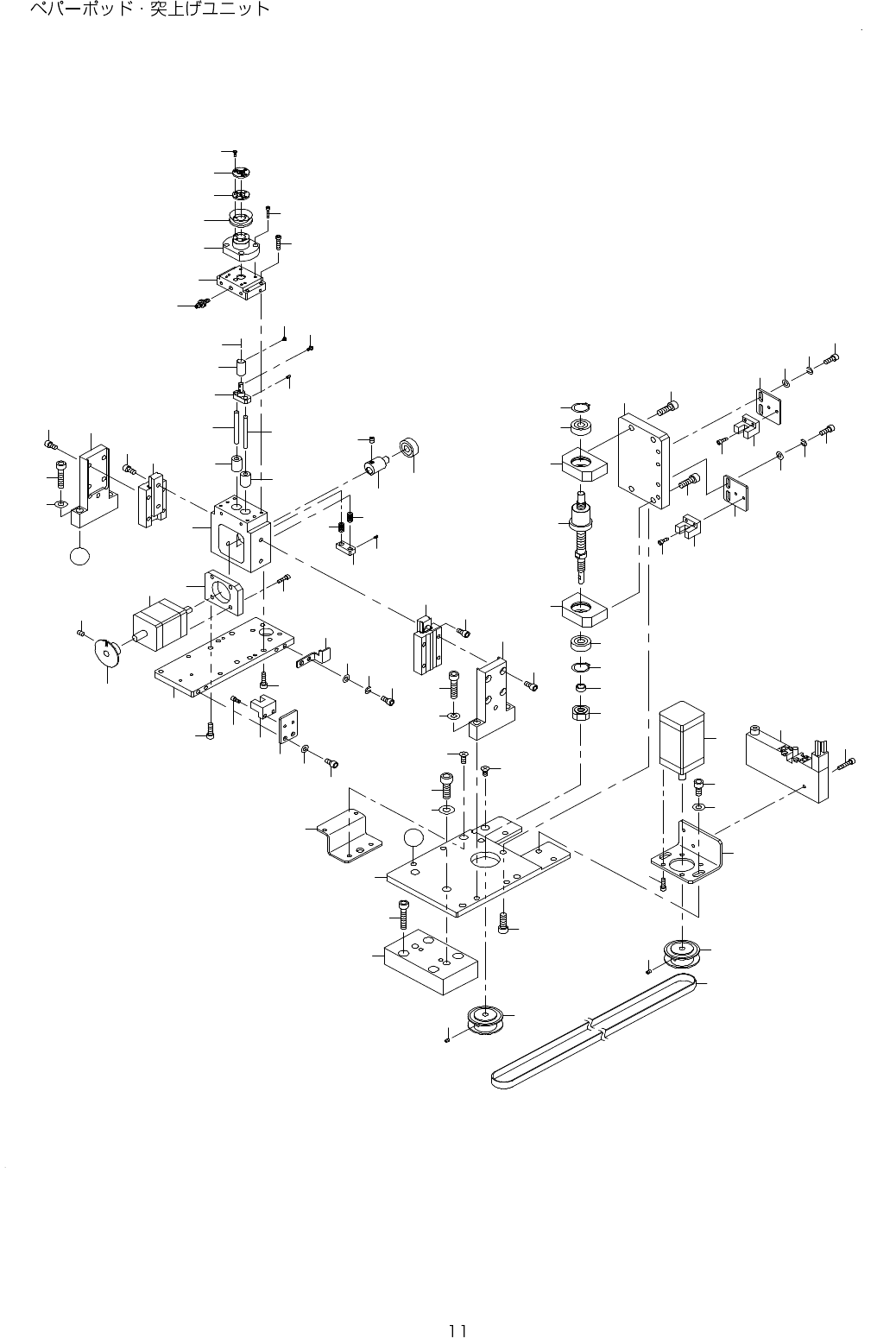

6. PEPPER POD & PUSH UP UNIT
1
3
4
7
8
9
1 0
1 1
1 2
1 3
1 4
1 4
6
1 6
1 7
1 7
1 8
1 8
1 9
1 9
2 0
2 1
2 5
2 6
2 7
2 8
5
2 9
3 0
3 1
2
3 2
3 3
3 4
3 2
3 5
3 6
3 7
3 7
3 8
5 4
A
A
4 4
5 9
6 0
5 4
4 1
6 1
6 2
6 3
4 3
6 4
4 2
4 2
6 7
6 5
6 6
4 5
4 6
6 8
6 9
4 7
4 8
7 0
7 0
5 0
5 1
5 2
4 9
5 2
4 9
5 6
7 1
5 5
7 1
5 7
7 2
7 2
7 2
7 2
4 0
7 3
7 4
7 5
5 8
7 6
1 5
2 3
7 7
2 2
7 8
7 8
5 3
7 8
5 3
6 5
6 6
6 7
4 7
2 4
3 9
3 8
- -

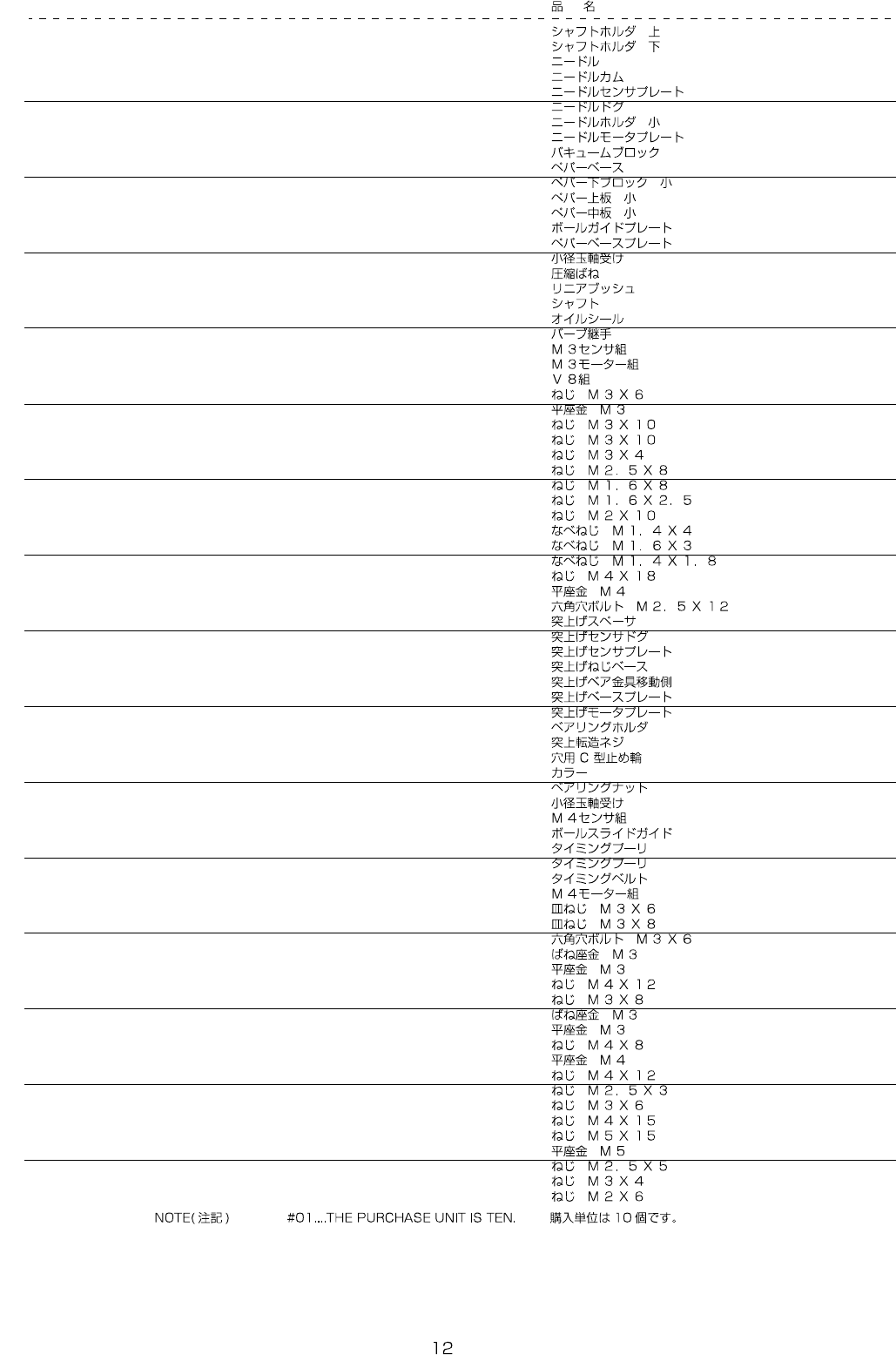

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-24552 SHAFT HOLDER UPPER 1
2 401-24553 SHAFT HOLDER LOWER 1
3
#01
401-24554 NEEDLE 1
4 401-24555 NEEDLE CAM 1
5 401-24556 NEEDLE SENSOR PLATE 1
6 401-24557 NEEDLE DOGS 1
7 401-24558 NEEDLE HOLDER SMALL 1
8 401-24559 NEEDLE MOTOR PLATE 1
9 401-24560 VACUUM BLOCK 1
10 401-24561 PEPPER BASE 1
11 401-24562 BLOCK UNDER PEPPER SMALL 1
12 401-24563 PEPPER TOP PLATE SMALL 1
13 401-24564 PEPPER MIDDLE PLATE SMALL 1
14 401-24565 BALL GUIDE PLATE 2
15 401-24566 PEPPER BASE PLATE 1
16 401-24567 SMALL BALL BEARINGS 1
17 401-23950 COMPRESSION SPRING 2
18 401-23952 LINEAR BUSHING 2
19 401-23953 SHAFT 2
20 401-23954 OIL SEAL 1
21 401-23955 JOINT 1
22 401-24430 M3 SENSOR ASM 1
23 401-24429 M3 MOTOR ASM 1
24 401-24467 V8 ASM 1
25 - SCREW M3X6 2
26 - WASHER M3 2
27 - SCREW M3X10 2
28 - SCREW M3X10 4
29 - SCREW M3X4 1
30 - SCREW M2.5X8 4
31 - SCREW M1.6X8 4
32 - SCREW M1.6X2.5 4
33 - SCREW M2X10 4
34 - SCREW M1.4X4 3
35 - SCREW M1.6X3 2
36 - SCREW M1.4X1.8 1
37 - SCREW M4X18 4
38 - WASHER M4 4
39 - BOLT M2.5X12 2
40 401-23958 PUSH UP SPACER 1
41 401-23959 PUSH UP SENSOR DOGS 1
42 401-23960 PUSH UP SENSOR PLATE 2
43 401-23961 PUSH UP SCREW BASE 1
44 401-23962 PUSH UP BEAR 1
45 401-23963 PUSH UP BASE PLATE 1
46 401-23964 PUSH UP MOTOR PLATE 1
47 401-23965 BEARING HOLDER 2
48 401-23966 PUSH UP ROLLED SCREW 1
49 401-23967 RETAINING RINGS C TYPE 4
50 401-23968 COLLAR 1
51 401-23969 BEARING NUT 1
52 401-24567 SMALL BALL BEARINGS 2
53 401-24432 M4 SENSOR ASM 1
54 401-23971 BALL SLIDE GUIDES 2
55 401-23972 TIMING PULLEYS 1
56 401-23973 TIMING PULLEYS 1
57 401-23149 TIMING BELT 1
58 401-24431 M4 MOTOR ASM 1
59 - SCREW M3X6 1
60 - SCREW M3X8 1
61 - BOLT M3X6 2
62 - SPRING WASHER M3 2
63 - WASHER M3 2
64 - SCREW M4X12 2
65 - SCREW M3X8 4
66 - SPRING WASHER M3 4
67 - WASHER M3 4
68 - SCREW M4X8 2
69 - WASHER M4 2
70 - SCREW M4X12 4
71 - SCREW M2.5X3 4
72 - SCREW M3X6 12
73 - SCREW M4X15 4
74 - SCREW M5X15 2
75 - WASHER M5 2
76 - SCREW M2.5X5 4
77 - SCREW M3X4 1
78 - SCREW M2X6 6
