2.The Machine SYS-CP842-1.1E 24 CP-842E / CP-842ME System Reference 2.1.4 Machine Controls The machine uses a combination of a touc h screen and conventio nal push buttons. The major b uttons on the opera tion box and to…
SYS-CP842-1.1E 2.The Machine
CP-842E / CP-842ME System Reference 23

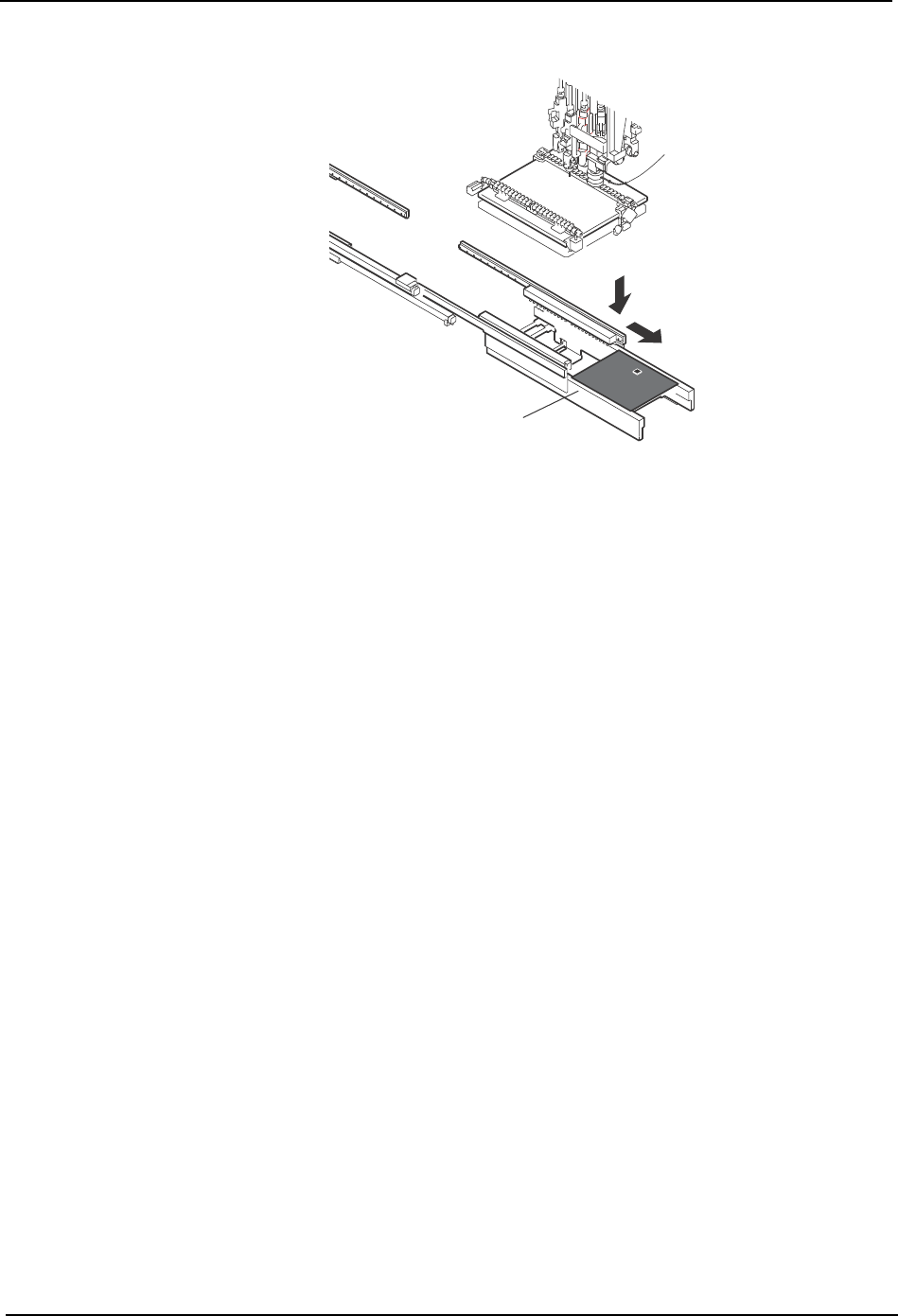

Note: This explanation describes single panel production. The double panel production
option is the same except for the use of stoppers to position the second panel at the in- and
out-conveyor.
L
Out-conveyor
C7SM1003a
2.The Machine SYS-CP842-1.1E
24 CP-842E / CP-842ME System Reference

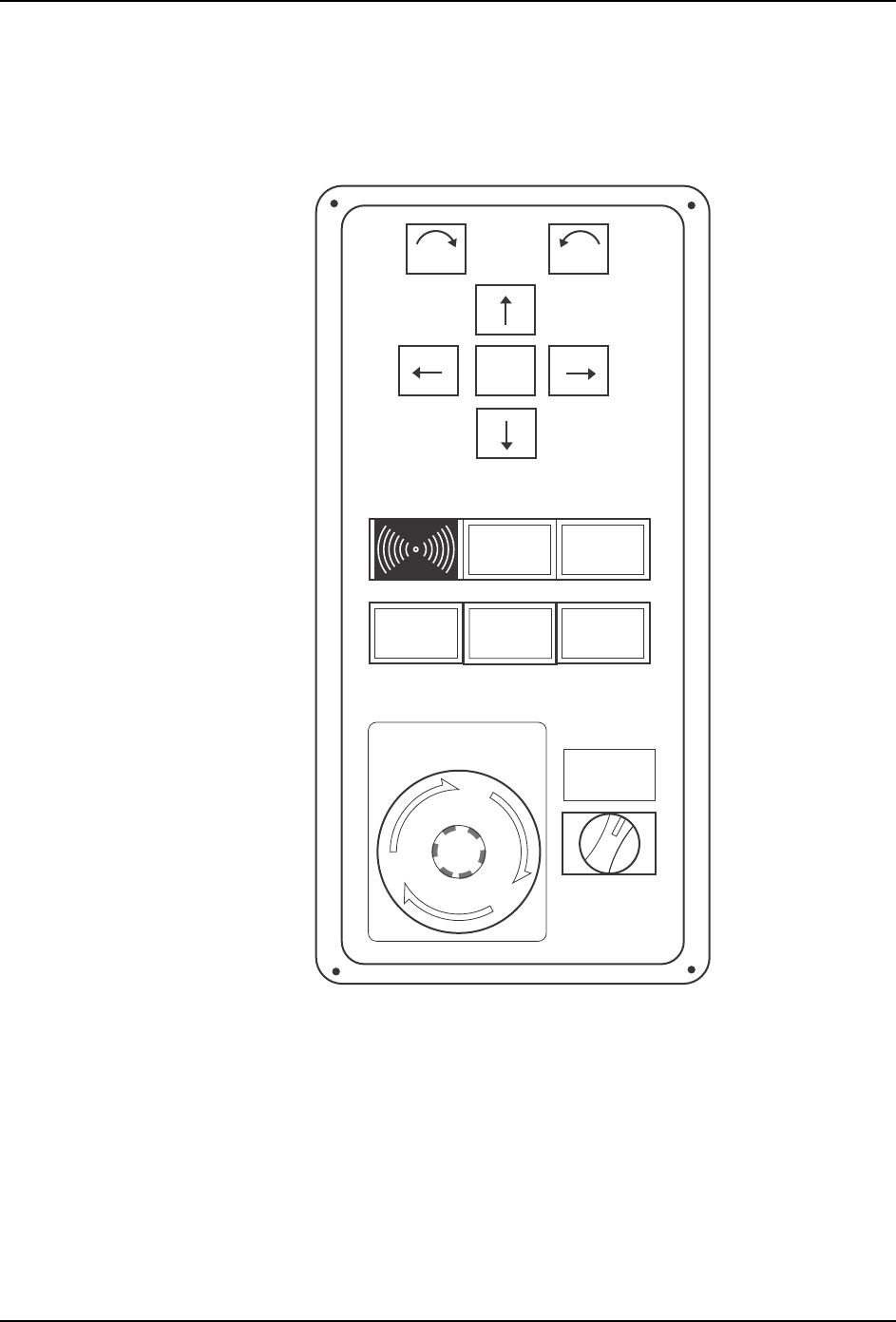

2.1.4 Machine Controls
The machine uses a combination of a touch screen and conventional push buttons.
The major buttons on the operation box and touch screen are detailed below.
POWER ON lamp
This indicator is lit when the main breaker is set to the ON position.
SYSTEM ON button
This button turns on the power supply to the machine and boots up the control software.
START button
This button is pushed to commence operation. This button can only be pushed when the
machine is in START ready status (i.e., when the button is flashing).
POWER
ON
READY
ON
Side 1
START
EMERGENCY
STOP
SYSTEM
ON
ENABLE
LOCK
CYCLE
STOP
F
θ
θ
C73OM007
SYS-CP842-1.1E 2.The Machine
CP-842E / CP-842ME System Reference 25
CYCLE STOP button
This button can be used during operation to stop the machine at the end of the current
movement. Unlike the EMERGENCY STOP button, pressing CYCLE STOP does not cut
the 200V power.
READY ON button
This button cancels an error status and resupplies the 200V power to the servo system.
EMERGENCY STOP button
Pressing an EMERGENCY STOP button cuts the 200V power to the machine and stops
operation immediately. This button locks in position when pressed, and must be turned
clockwise to release it.
Users should familiarize themselves with the locations of the EMERGENCY STOP buttons
prior to operating the machine. In addition to the button on the front of the machine (shown
in the figure above), further EMERGENCY STOP buttons are positioned at the rear of the
machine, and on the optional MTU safety fence.
Refer to the illustration in Chapter 5 of the Safety Guidelines to confirm the positions of all
the EMERGENCY STOP buttons.
Side 1/2 ENABLE/LOCK switch
Toggle this switch to enable operation at the desired side; front (Side 1) or rear (Side 2), of
the machine. Operation at a given side of the machine cannot be enabled if the switch at
the other side of the machine is set to LOCK.
Power Off button (touch screen command that displays when the EMERGENCY
STOP button is pushed)
The [Power Off] button is used to turn off the main power to the machine.
This button can only be pressed after the EMERGENCY STOP button has been pushed.
