Setup Center Application Installation
5.2.4 Setup Type - Custom Individual Setup Types and Next Steps
Installation Manual SIPLACE Setup Center 8.0 45
Step 2

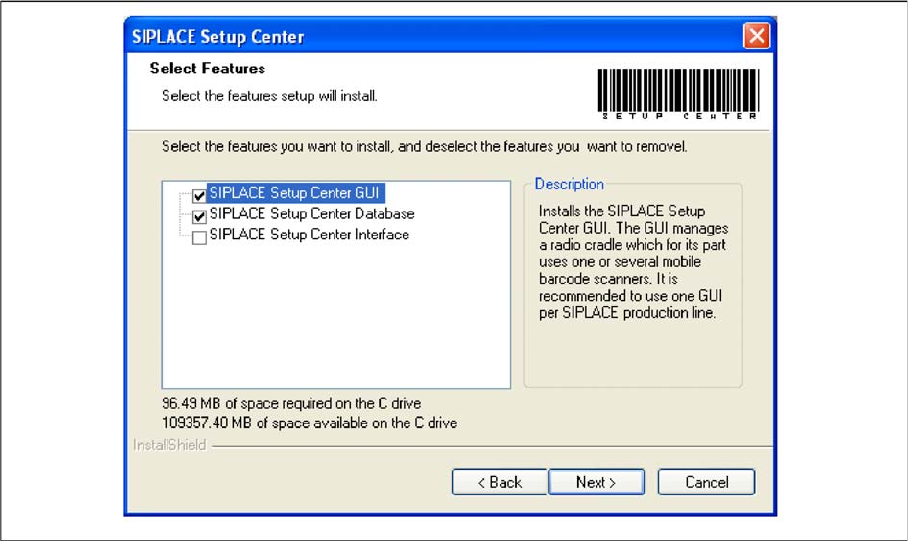

► Choose the checkbox in the Select features dialog box.
► The Description field displays detailed information to the selected feature.
► Select the features you want to install, and deselect the features you want to removel.
► Click Next and perform the respective Steps from the following dialog boxes.
Setup Center Application Installation
Setup Verification and Traceability Activation 5.3.1 Installing
46 Installation Manual SIPLACE Setup Center 8.0
5.3
5.3 Setup Verification and Traceability Activation
Setup Verification and Traceability Activation
The software CD "SIPLACE Setup Center" contains the activation of Splice Detection, Component Level
Indicator and Traceability.
The following settings can be configured during the installation at the SIPLACE station:
▪ Configuration of the Splice detection (If not X-machine)
▪ Deactivation of Fill Level Control for “empty running tracks” and Activation for "Filling level correction"
▪ Activation of locked tracks without scanning
▪ Traceability data creation
5.3.1
5.3.1 Installing
Installing
The dialog boxes shown below will be displayed during the installation procedure.
Step 1
► Insert the SIPLACE Setup Center installation CD into the CD-ROM drive. The installation routine
starts automatically.
► You can also start the installation by running the Autorun.cmd program located in the root directory
on the installation CD.
► This starts the user-controlled installation of SIPLACE Setup Center; you are prompted to select the
installation language.
"Choose setup language" dialog box
► Select the language you want.
► Click OK.
CAUTION
Activation for unforced setup verification
For unforced setup verification, the activation using the activation CD is mandatory for station
software versions 407.05 Hotfix 9 and 505.05 SP2 Hotfix 3.
NOTICE
Activation of forced setup verification and the component level indicator at the station software
70x is set by SIPLACE Pro.
► It is not necessary to activate using the activation CD.
NOTICE
This decision only relates to the language used during the installation routine!
Setup Center Application Installation
5.3.1 Installing Setup Verification and Traceability Activation
Installation Manual SIPLACE Setup Center 8.0 47

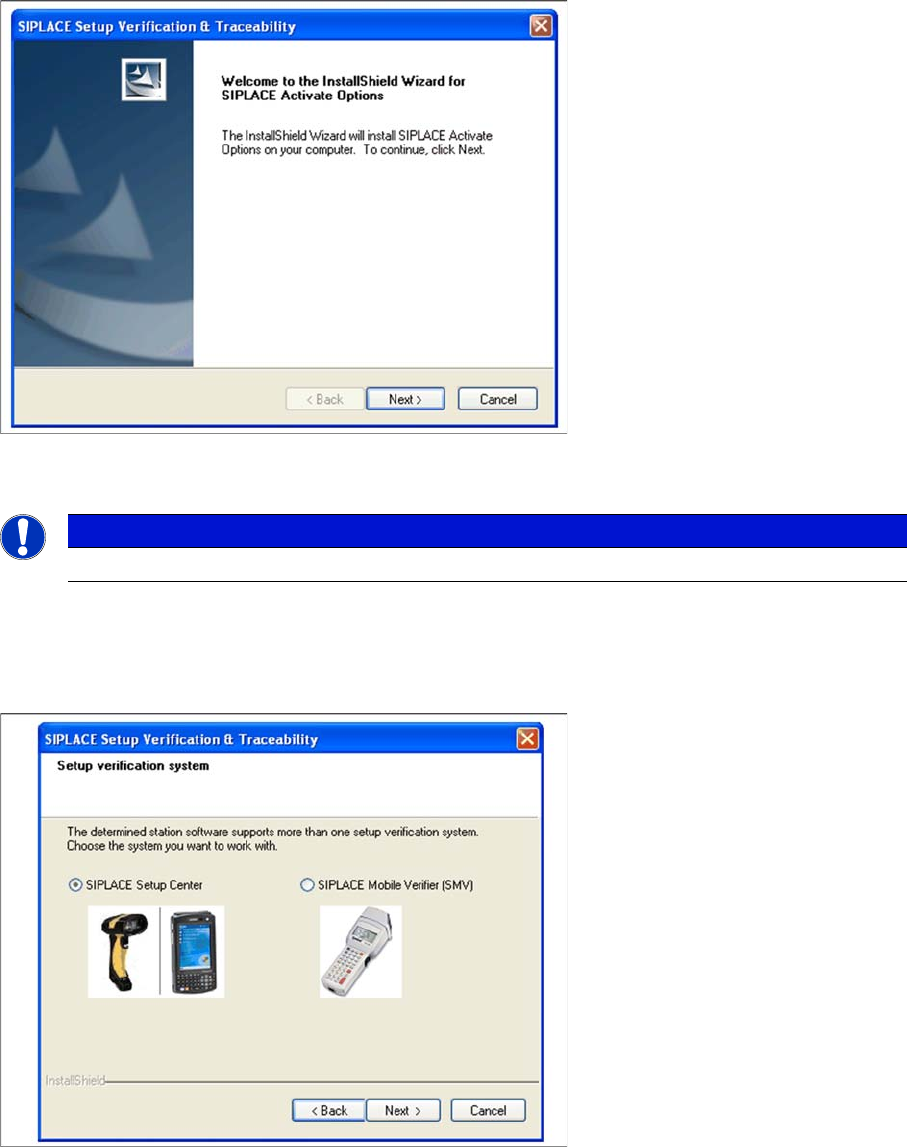

Step 2 Welcome dialog
► Log on as administrator to the station PC.
► Place the product CD in your CD-ROM drive.
► The Start screen appears.
Step 3 Setup verification system
► The station software version 407 and 505 offers two different interfaces to the Setup verification sys
-
tem. By choosing the corresponding Setup verification system the interface will be configured in the
station-software accordingly.
► Click Next to continue.
NOTICE
This Dialog will only appear for the machine with the station-software version 407 and 505!
