Setup Center Application Installation
5.3.1 Installing Setup Verification and Traceability Activation
Installation Manual SIPLACE Setup Center 8.0 47
Step 2 Welcome dialog
► Log on as administrator to the station PC.
► Place the product CD in your CD-ROM drive.
► The Start screen appears.
Step 3 Setup verification system
► The station software version 407 and 505 offers two different interfaces to the Setup verification sys
-
tem. By choosing the corresponding Setup verification system the interface will be configured in the
station-software accordingly.
► Click Next to continue.
NOTICE
This Dialog will only appear for the machine with the station-software version 407 and 505!
Setup Center Application Installation
Setup Verification and Traceability Activation 5.3.1 Installing
48 Installation Manual SIPLACE Setup Center 8.0

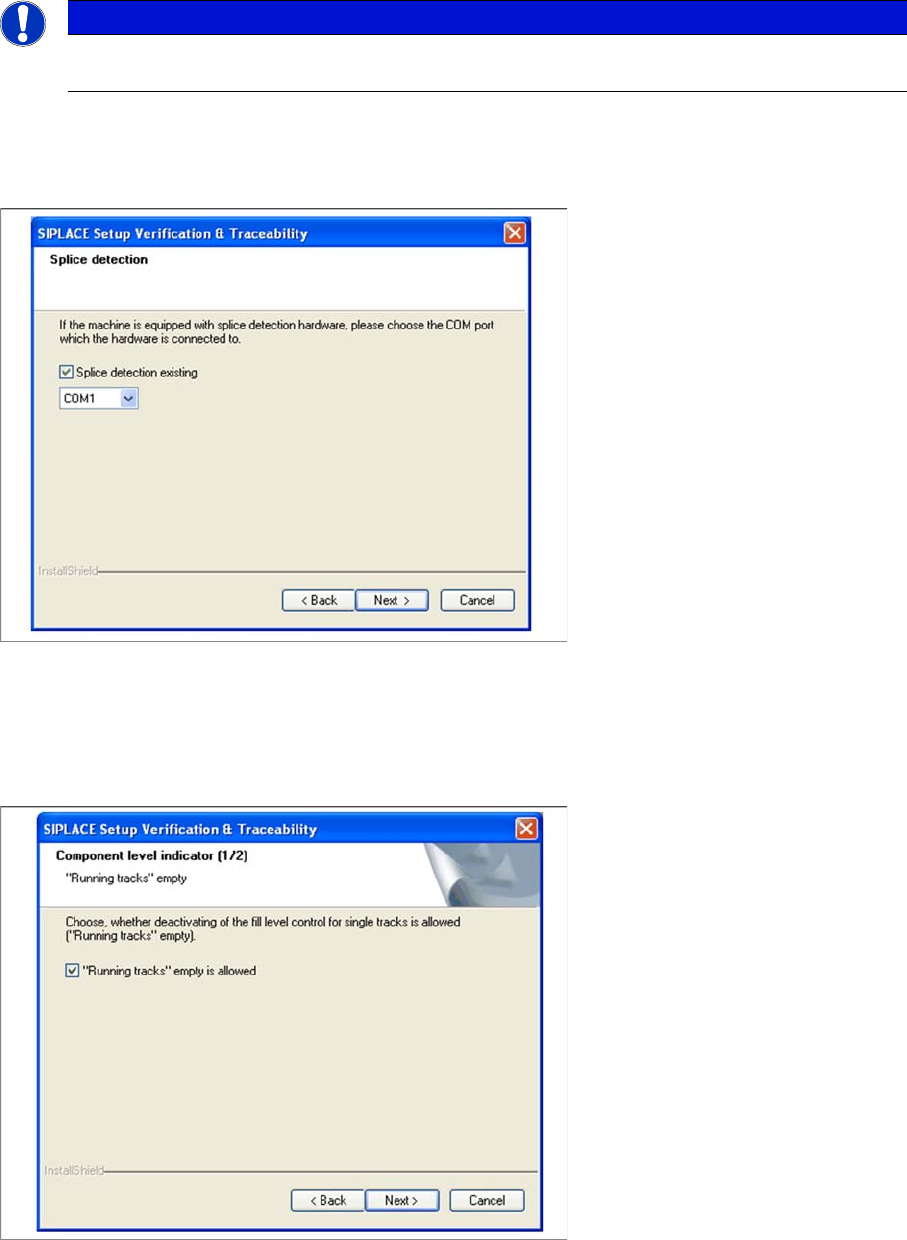

Step 4 Configuration of the Splice detection
► Select the checkbox Splice detection existing, if a splice detection is available.
► Enter the COM Port where Splice detection is plugged in or leave empty the entry field.
► Click Next to continue.
Step 5a Fill Level Control (1)
► If the fill level control should be disabled for single tracks, activate the checkbox “Running tracks”
empty is permitted. After that you can let single tracks go empty consciously.
► Click Next to continue.
NOTICE
This dialog will not appear for X-serie machines since the splice interface is always integrated
into the X feeders and is not available for S feeders at these machines!
Setup Center Application Installation
5.3.1 Installing Setup Verification and Traceability Activation
Installation Manual SIPLACE Setup Center 8.0 49

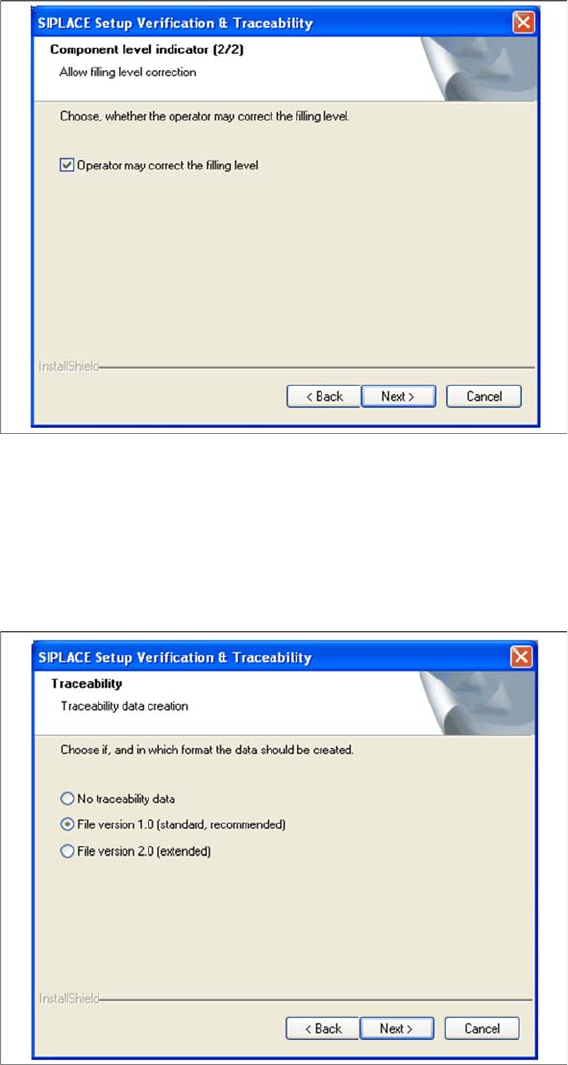

Setup 5b Fill Level Control (2)
► If the filling level correction should be allowed, activate the checkbox Operator may correct the filling
level. After that the operator may correct the filling level. Otherwise only the user with the right
"LineEngineer" and higher can correct the filling level.
► Click Next to continue.
Step 6 Traceability
► Here you can choose whether the Traceability Data should be created.
► Furthermore you can select the File version 1.0 for standard TRC file or the File version 2.0 for ex
-
tended TRC file.
► Click Next to continue. Wait until the next dialog box appears. It can be take a few minutes.
