14 WF2 CA4 V2 Check the filter discs of C&P20 A/P/M2 2 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com

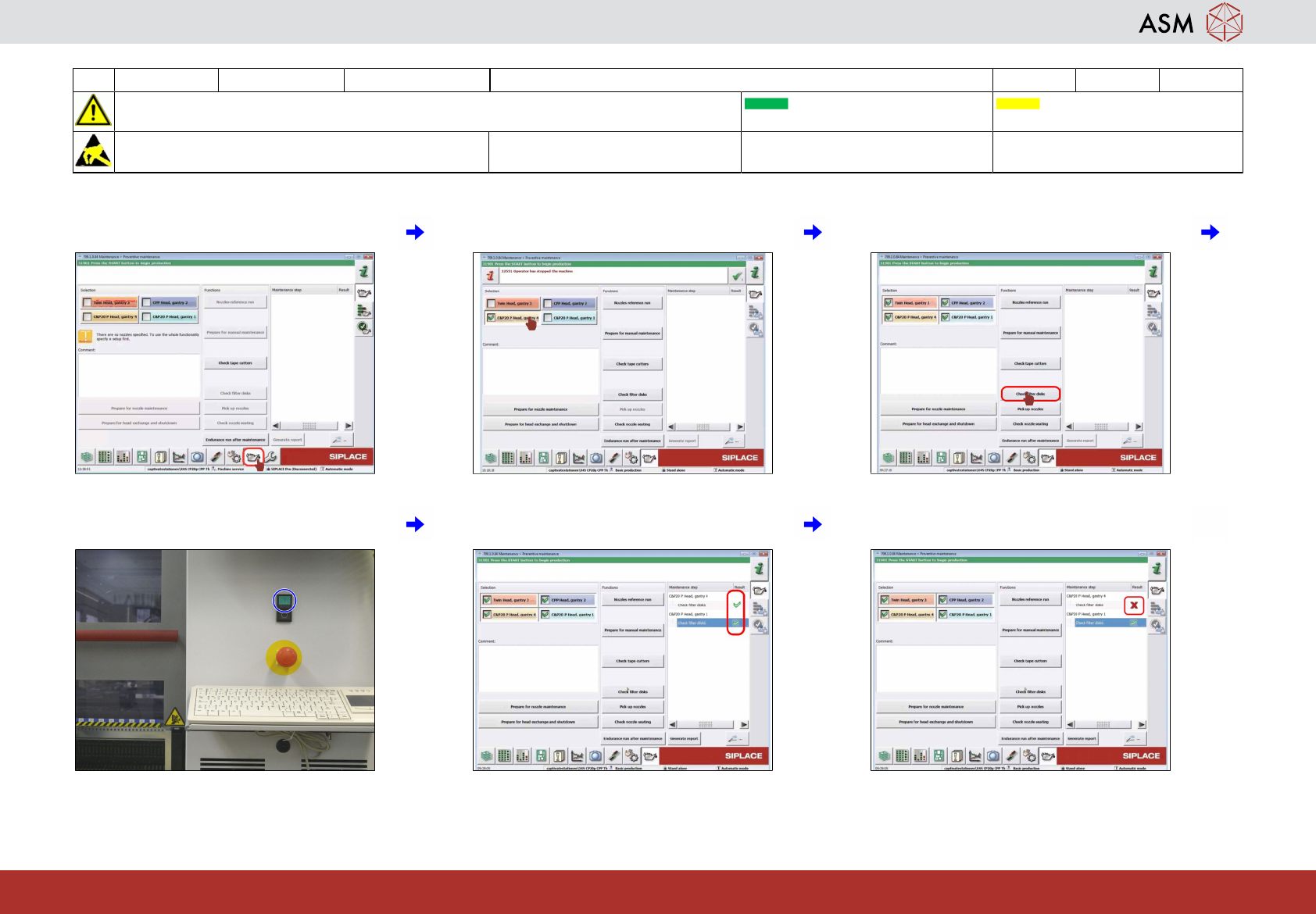

1 Click on the "Maintenance" icon. 2 Select all heads. 3 Click on the "Check filter disk" icon.
4 Press the machine start button. 5 Check if the result is OK (green hook). 6 If the result is NOT OK (red cross) contact
service.
www.asm-smt.com
15 WF2 CA4 V2 Check the nozzle seating of CPP /M and C&P20 A/P/M2 2 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com
1 Click on "Pick up nozzles". 2 Click on "Check nozzle seating". 3 Check if the result is OK (green hook).
4 If the result is NOT OK (red cross) contact
service.
