1 - 18 www.e-by-siplace.com Standard Nozzles in the 4xx Series 4103 (ceramic) L = 10.800 mm Tip: 0.900 x 0.500 mm (LxW) Item no. 03101981 4105 (ceramic) L = 11.000 mm Tip: 0.400 x 0.200 mm (LxW) Item no. 03102457 …
1 - 17
www.e-by-siplace.com
Standard Nozzles in the 4xx Series
4004 (ceramic)
L = 9.400 mm
Tip: 1.700 x 1.200 mm (LxW)
Item no. 03098544
4007 (ceramic)
L = 9.800 mm
Tip: 1.400 x 0.660 mm (LxW)
Item no. 03099684
4028 (ceramic)
L = 9.800 mm
Tip: Ø 0.600 mm
Item no. 03115821
4204 (ceramic)
L = 10.100 mm
Tip: 1.700 x 1.200 mm (LxW)
Item no. 03149000
1 - 18
www.e-by-siplace.com
Standard Nozzles in the 4xx Series

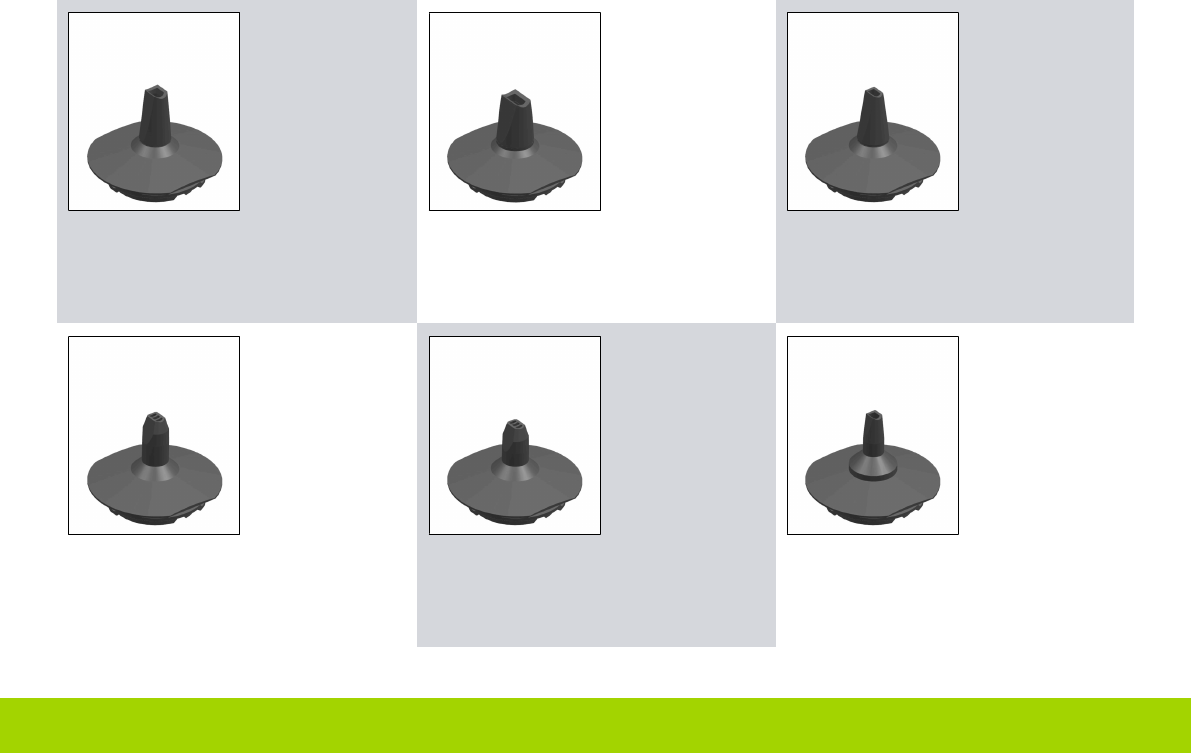

4103 (ceramic)
L = 10.800 mm
Tip: 0.900 x 0.500 mm (LxW)
Item no. 03101981
4105 (ceramic)
L = 11.000 mm
Tip: 0.400 x 0.200 mm (LxW)
Item no. 03102457
4106 (ceramic)
L = 11.000 mm
Tip: 0.440 x 0.350 mm (LxW)
Item no. 03102459
4107 (ceramic)
L = 10.400 mm (special length)
Tip: 1.400 x 0.660 mm (LxW)
Item no. 03102344
4108 (ceramic)
L = 11.000 mm
Tip: 0.470 x 0.300 mm (LxW)
Item no. 03103544
4109 (ceramic)
L = 11.000 mm
Tip: 0.600 x 0.350 mm (LxW)
Item no. 03103553
1 - 19
www.e-by-siplace.com
Standard Nozzles in the 4xx Series
4032 (TPU)
L = 9.700 mm, r
tip
= 0.900 mm
Tip: 2.100 x 1.540 mm (LxW)
Item no. 03099701
4034 (TPU)
L = 9.000 mm, r
tip
= 1.000 mm
Tip: 2.900 x 1.650 mm (LxW)
Item no. 03099697
4036 (TPU)
L = 9.600 mm, r
tip
= 0.900 mm
Tip: 1.700 x 1.100 mm (LxW)
Item no. 03099718
4042 (ceramic)
L = 9.400 mm, r
tip
= 0.750 mm
Tip: 1.760 x 1.200 mm (LxW)
Item no. 03105707
4044 (ceramic)
L = 8.600 mm, r
tip
= 1.000 mm
Tip: 1.725 x 1.200 mm (LxW)
Item no. 03105711
4046 (ceramic)
L = 9.650 mm, r
tip
= 0.750 mm
Tip: 1.540 x 1.100 mm (LxW)
Item no. 03105714
