1 - 20
www.e-by-siplace.com

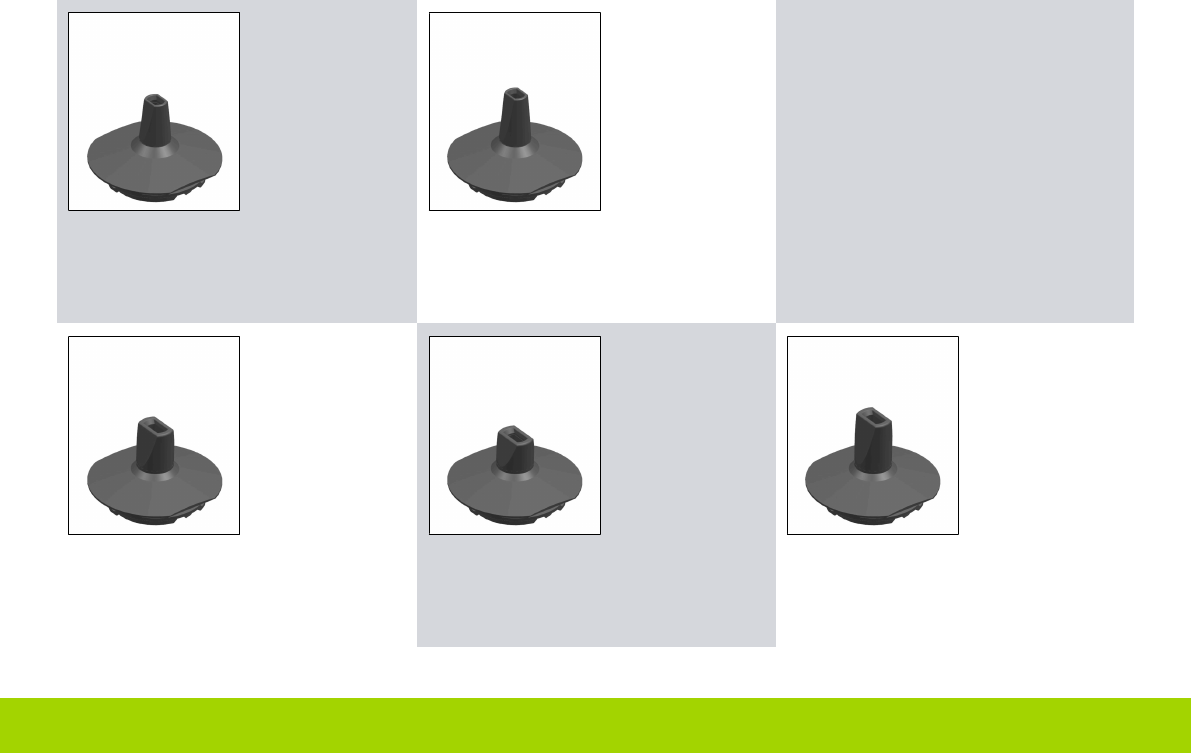

Standard Nozzles in the 4xx Series
4033 (TPU)
L = 8.700 mm
Tip: 2.200 x 1.600 mm (LxW)
Item no. 03099713
4133 (TPU)
L = 9.400 mm
Tip: 2.200 x 1.600 mm (LxW)
Item no. 03099716
4035 (TPU)
L = 8.400 mm
Tip: 3.500 x 1.900 mm (LxW)
Item no. 03099728
4135 (TPU)
L = 7.400 mm
Tip: 3.500 x 1.900 mm (LxW)
Item no. 03099722
4235 (TPU)
L = 9.400 mm
Tip: 3.500 x 1.900 mm (LxW)
Item no. 03098748
1 - 21
www.e-by-siplace.com

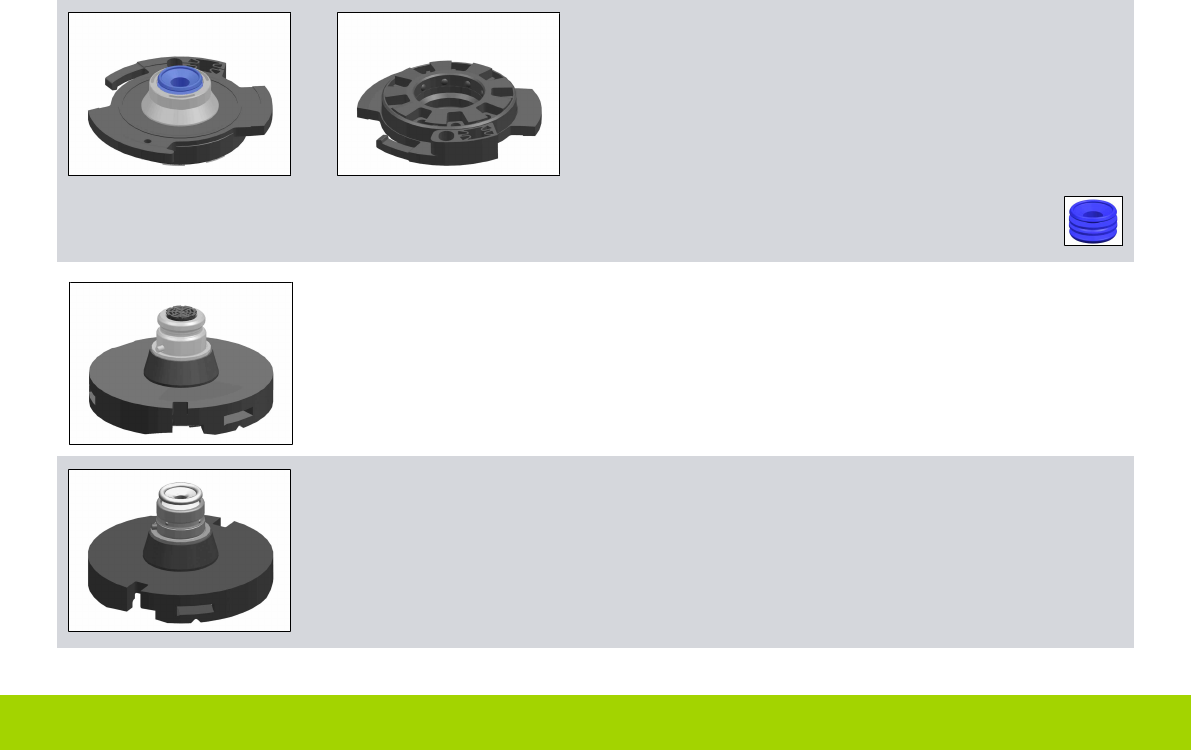

Nozzle Adapters
Nozzle adapter 5xx
Item no. 03011583
This nozzle adapter is needed when using 4xx nozzles on
a 5xx Twin Head.
This is already included with 5xx series nozzles but must
be ordered separately for grippers, special nozzles and
4xx series nozzles.
Nozzle adapter rubber seal (spare part) – Item no. 03007323 (10 pieces)
Ensure a correct installation position (observe the position during removal).
Nozzle adapter 20xx/28xx to 5xx
Item no. 03077941
This adapter includes the nozzle adapter 5xx (item no.03011583).
Nozzle adapter 7xx/9xx to 4xx
Item no. 00330027
This adapter does NOT include the nozzle adapter 5xx (item no.03011583).
1 - 22
www.e-by-siplace.com
Special Nozzles (Examples)
Nozzle type 939 short with lip seal
Shape: round
Item no. 03086390
Usage:
– Aluminum-electrolytic capacitors Ø 6.3 mm, H: 7.7 mm
Nozzle SOKO 4xx SSG from outside 13
Shape: gripper
Item no. 03103196
Usage:
– Connectors and other components with a typical width of 13 mm, which can not be
placed with nozzles.
