2 - 2-Pin Components and Standard Nozzles 2 - 1 www.e-by-siplace.com
1 - 26
www.e-by-siplace.com
2 - 2-Pin Components and Standard Nozzles
2 - 1
www.e-by-siplace.com

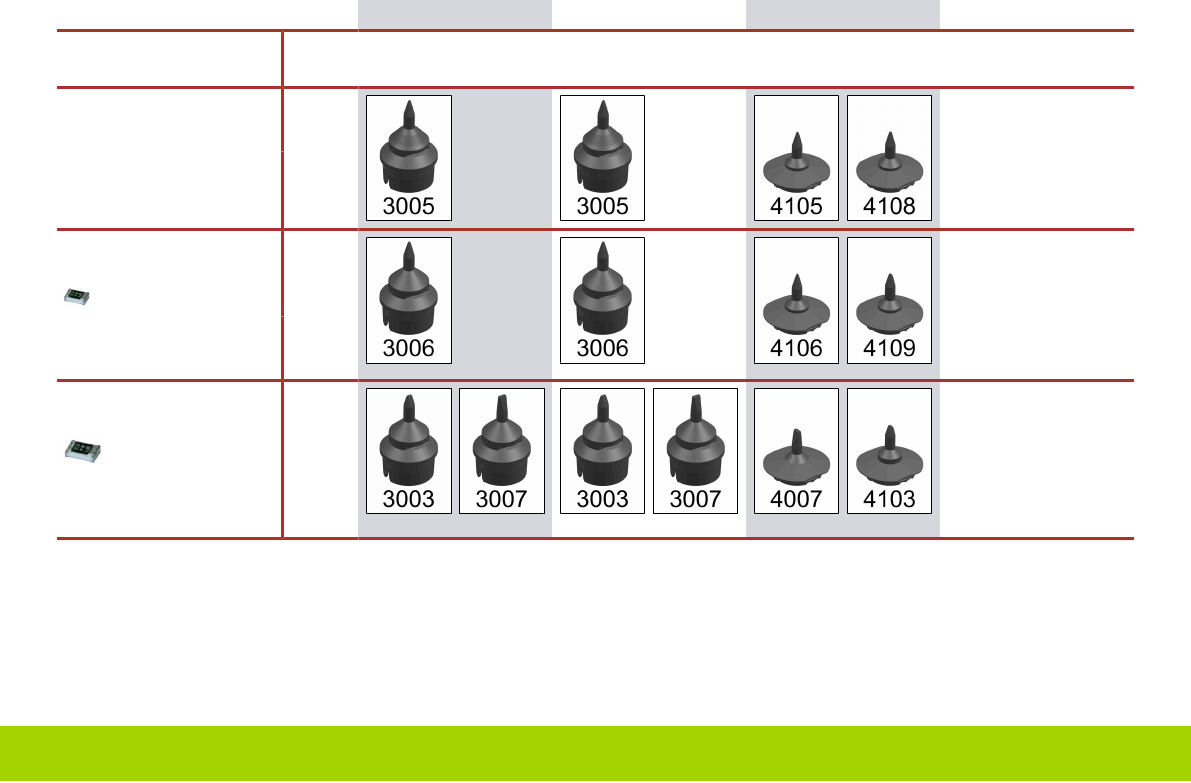

2 pin components CP6 CP12 CP14 PP / TH
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
01005 Resistor
[0.39x0.19x0.12]
96
01005 Capacitor
[0.36x0.18x0.18]
97
0201
[0.6x0.3x0.25]
98
0201
[0.6x0.3x0.3]
99
0402
[1.0x0.5x0.35]
100
0402
[1.0x0.5x0.5]
101
2 - 2
