3 - SOT/TO Components and Standard Nozzles 3 - 1 www.e-by-siplace.com
2 pin components CP6 CP12 CP14 PP / TH
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
ECS
L14.0 B6.25
[14.0x6.25x7.0]
360
Crystal SX 5020
[13.0x4.9x4.9]
381
Diode DO 214 AC
[5.0x2.6x2.29]
420
Diode DO 214 AA
[5.4x3.6x2.16]
421
Diode DO 214 AB
[8.0x5.9x2.16]
422
2 - 12
www.e-by-siplace.com
3 - SOT/TO Components and Standard Nozzles
3 - 1
www.e-by-siplace.com

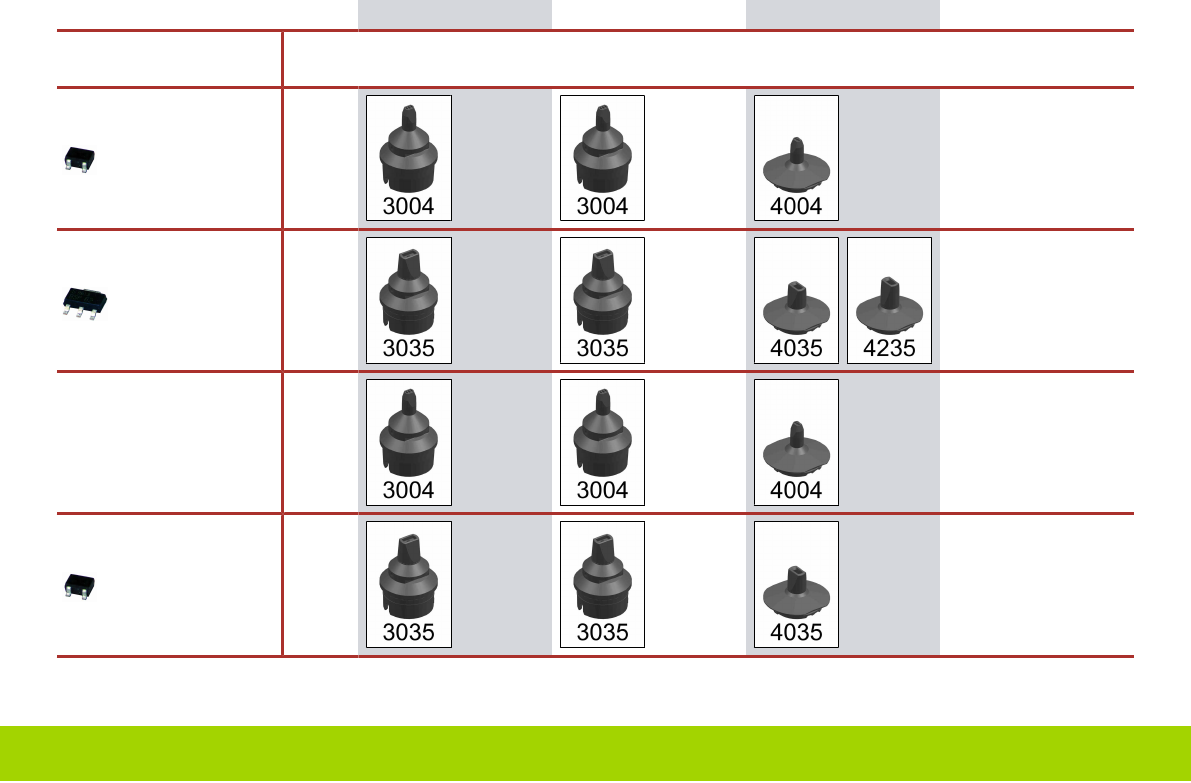

SOT/TO components CP6 CP12 CP14 PP / TH
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
SOT 23
[2.9x2.3x1.1]
400
SOT 89
[4.5x4.1x1.5]
401
SOT 143
[3.0x2.5x1.1]
402
SOT 223
[6.5x7.0x1.8]
403
3 - 2
