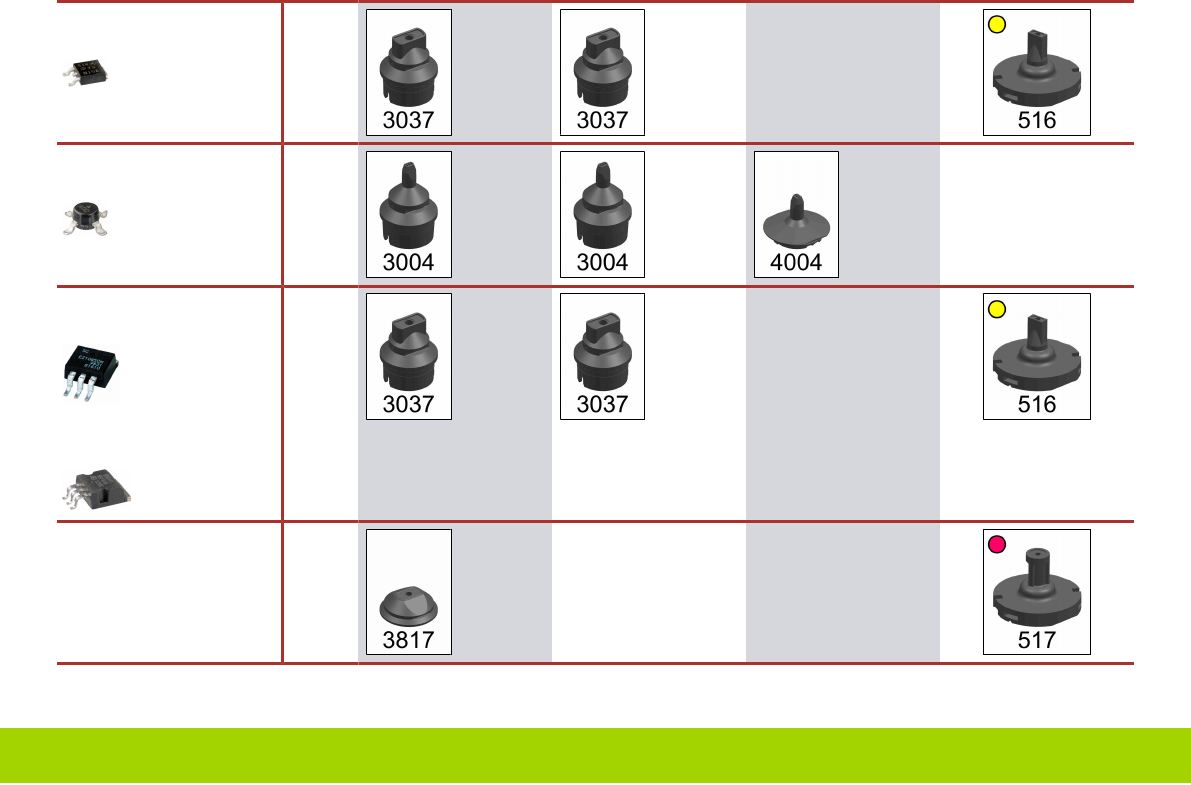

SOT/TO components CP6 CP12 CP14 PP / TH Component shape [LxWxH (mm)] CS file Nozzle types SOD 123 [3.7x1.55x1.4] 410 SOD 323 [2.5x1.25x1.2] 411 SC90 Ultra-Mini [1.6x1.6x0.7] 412 SOT 323 SOT 343 Mini SOT 363 [2.0x2.1x1.1]…
DPACK TO 252
[6.5x10.0x2.7]
404
TO 120 similar
[5.1x5.1x1.6]
405
D2PACK TO 263 AB
[10.0x15.2x4.4]
406
D2PACK TO 263 AA
[10.0x15.2x4.4]
407
D2PACK TO 268
[15.95x18.9x5.0]
408
3 - 3
www.e-by-siplace.com
SOT/TO components CP6 CP12 CP14 PP / TH
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
SOD 123
[3.7x1.55x1.4]
410
SOD 323
[2.5x1.25x1.2]
411
SC90 Ultra-Mini
[1.6x1.6x0.7]
412
SOT 323
SOT 343 Mini
SOT 363
[2.0x2.1x1.1]
413
414
416
SOT 25
SOT 26
[2.9x2.8x1.2]
417
418
