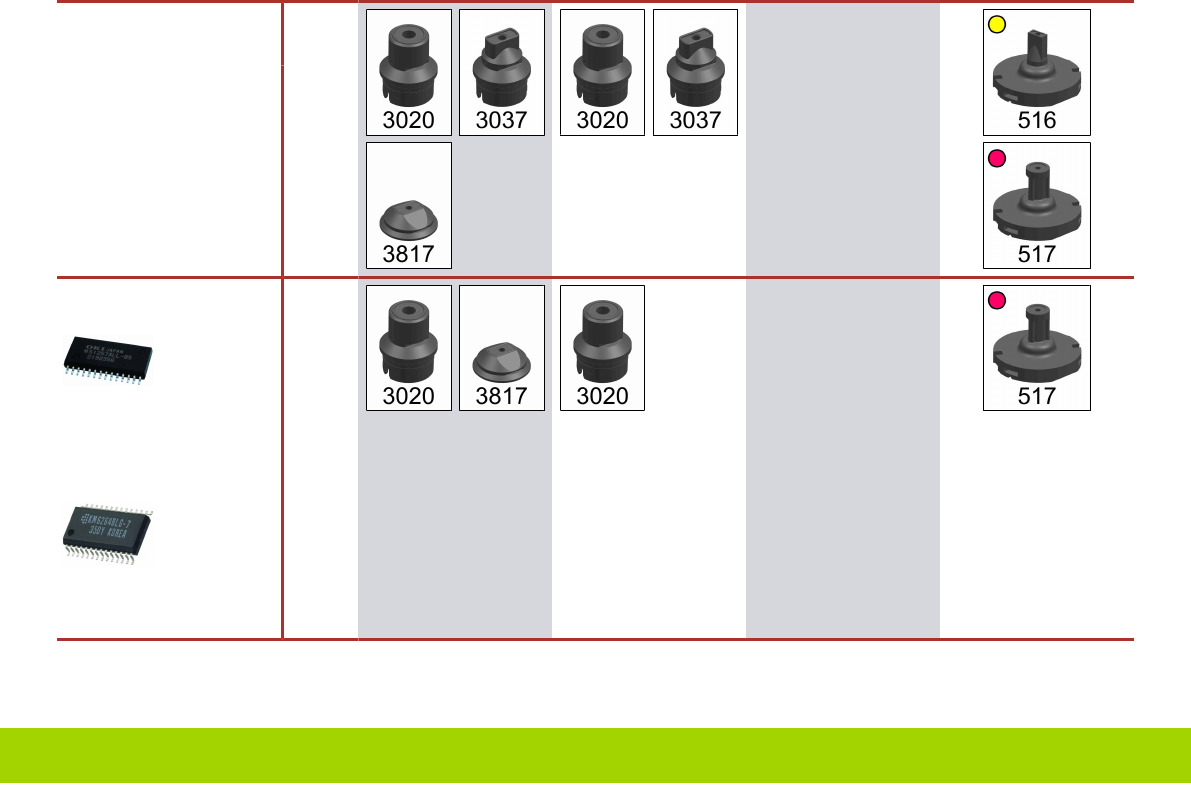

SO 24W /b 8.4 mm [15.65x12.1x2.3] 515 SO 24W_high /b 8.4 mm [15.65x12.1x2.8] 516 SO 28W [18.1x12.1x2.3] 517 SO 28W [18.1x12.1x2.3] SO 28 _high [18.1x12.1x2.8] 518 SOY 28 [18.0x14.1x2.79] 519 4 - 5 www.e-by-siplace.com

SO components CP6 CP12 CP14 PP / TH

Component shape

[LxWxH (mm)]

file

Nozzle types

SO 24L

[15.4x10.325x2.5]

512

SO 28L

[18.0x10.3x2.45]

513

SO 32Y/b14.1

[20.5x14.1x3.5]

514

4 - 4

www.e-by-siplace.com

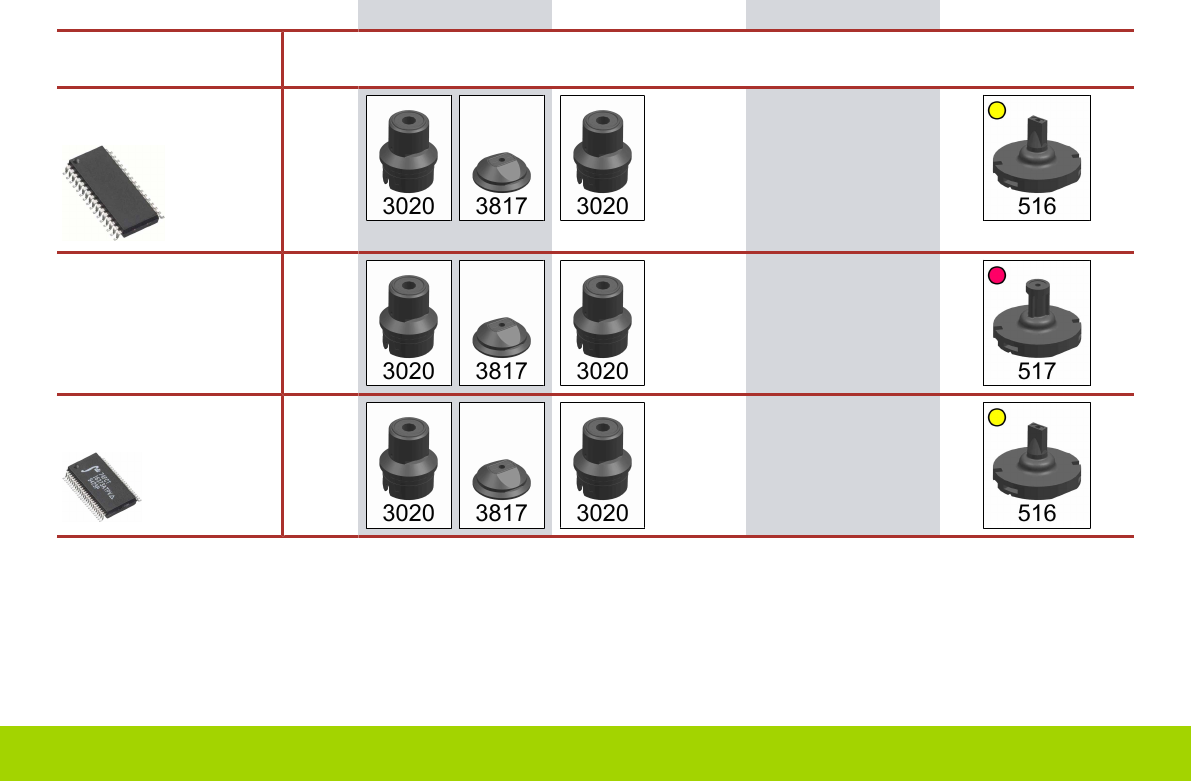

SO 24W/b 8.4 mm

[15.65x12.1x2.3]

515

SO 24W_high/b 8.4

[15.65x12.1x2.8]

516

SO 28W

[18.1x12.1x2.3]

517

SO 28W

[18.1x12.1x2.3]

SO 28_high

[18.1x12.1x2.8]

518

SOY 28

[18.0x14.1x2.79]

519

4 - 5

www.e-by-siplace.com

SO components CP6 CP12 CP14 PP / TH

Component shape

[LxWxH (mm)]

file

Nozzle types

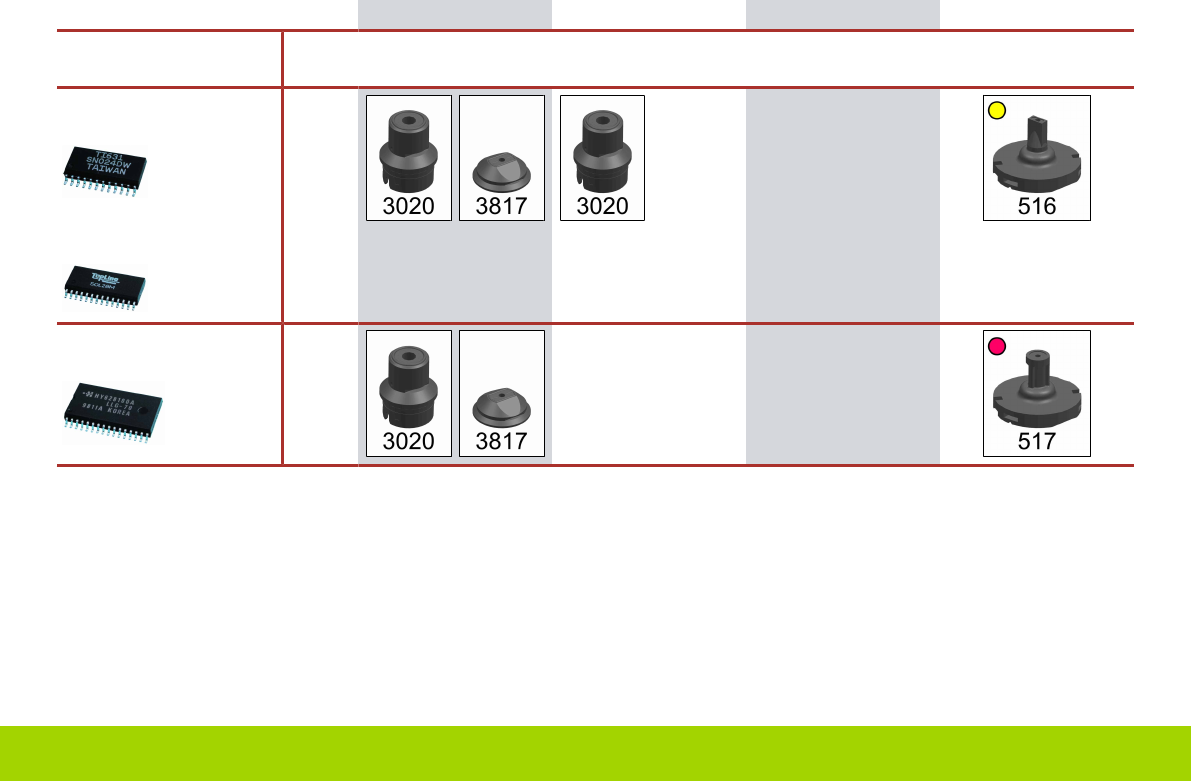

SO 32L

[21.0x10.6x2.67]

520

SO 40L

[26.6x11.8x2.9]

521

SSOP 48_0.025

[15.9x10.3x2.7]

523
