SO components CP6 CP12 CP14 PP / TH Component shape [LxWxH (mm)] CS file Nozzle types DIL 4 [4.8x9.7x4.8] 570 DIL 6 [8.6x10.0x4.4] 571 DIL 8 [9.3x10.0x4.4] 572 SO 8 _high_OK8 [4.9x6.0x3.2] 582 4 - 8 www.e-by-siplace.com
SO 32X
[21.1x13.8x2.5]
524
SO 40X
[26.2x13.65x2.4]
525
SO 40Y
[26.2x14.25x2.5]
526
TSSOP 20
[6.5x6.4x1.4]
541
4 - 7
www.e-by-siplace.com

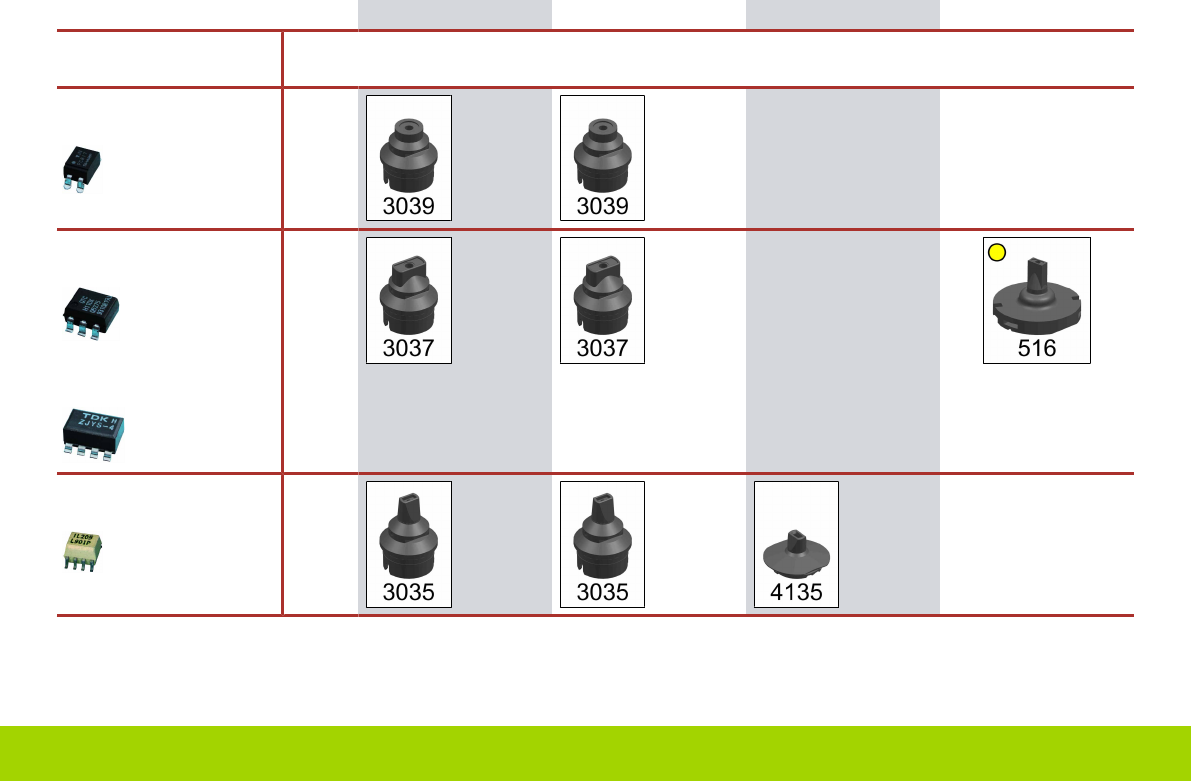

SO components CP6 CP12 CP14 PP / TH
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
DIL 4
[4.8x9.7x4.8]
570
DIL 6
[8.6x10.0x4.4]
571
DIL 8
[9.3x10.0x4.4]
572
SO 8_high_OK8
[4.9x6.0x3.2]
582
4 - 8
www.e-by-siplace.com

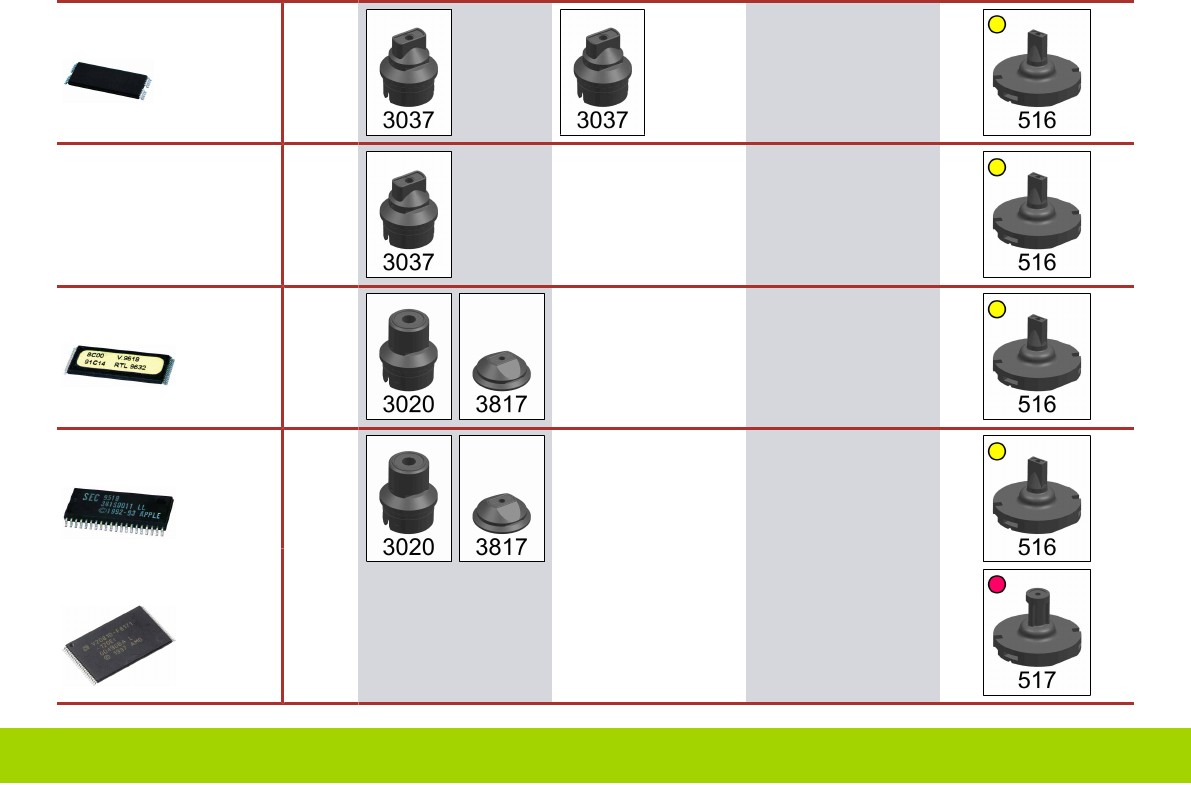

TSOP 24_20
[16.0x6.0x1.2]
600
TSOP I 24
[20.0x6.0x1.0]
601
TSOP 32
[20.0x10.1x1.0]
602
TSOP 40
[20.0x10.1x1.2]
603
TSOP I 48
[20.0x12.0x1.2]
604
4 - 9
