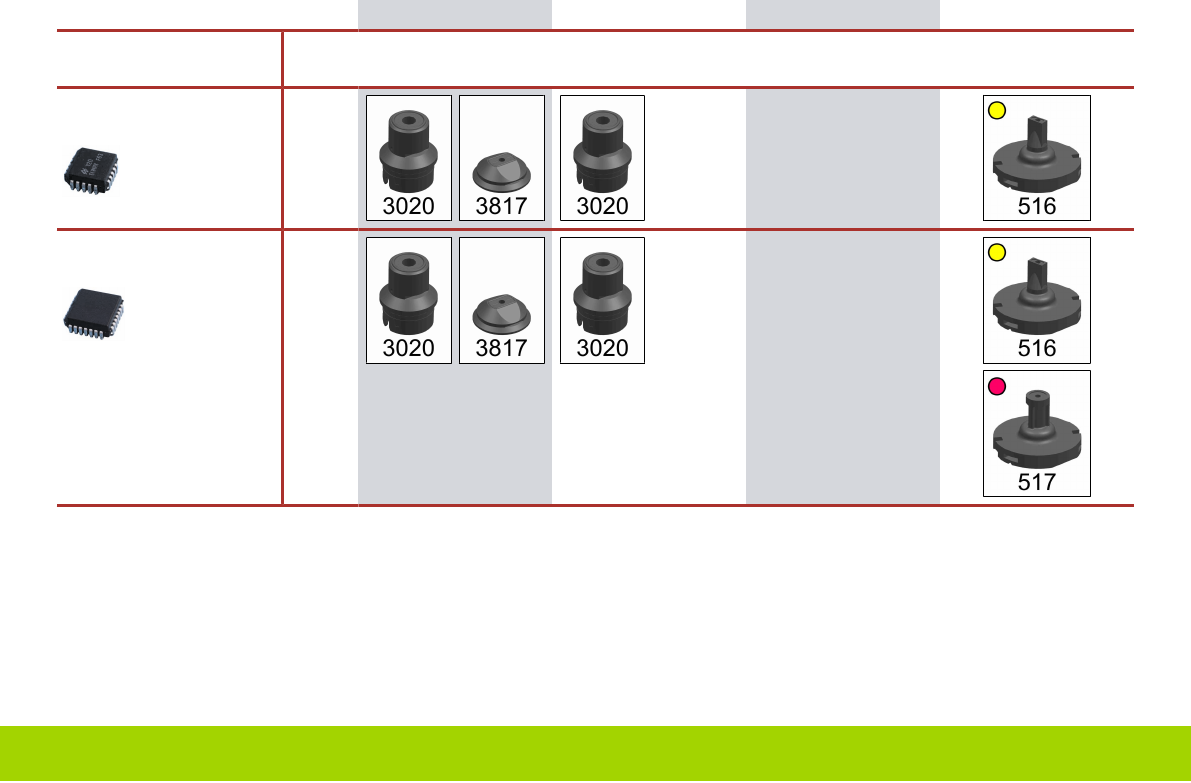

PLCC/SOJ components CP6 CP12 CP14 PP / TH Component shape [LxWxH (mm)] CS file Nozzle types PLCC 20 [9.85x9.85x4.35] 700 PLCC 28 [12.35x12.35x4.35] 701 5 - 2 www.e-by-siplace.com

100%1 / 86
5 - PLCC/SOJ Components and Standard Nozzles
5 - 1
www.e-by-siplace.com
PLCC/SOJ components CP6 CP12 CP14 PP / TH
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
PLCC 20
[9.85x9.85x4.35]
700
PLCC 28
[12.35x12.35x4.35]
701
5 - 2
www.e-by-siplace.com
PLCC 44
[17.55x17.55x4.35]
702
PLCC 52
[20.05x20.05x4.6]
703
PLCC 68
[25.15x25.15x4.6]
704
5 - 3
www.e-by-siplace.com
