PLCC/SOJ components CP6 CP12 CP14 PP / TH Component shape [LxWxH (mm)] CS file Nozzle types SOJ 24 /b8.6 [15.88x8.66x3.5] 800 SOJ 26 /b8.6 [17.15x8.66x3.5] 801 SOJ 28 /b8.66 [18.41x8.66x3.5] 802 SOJ 28 /b9.8 [18.42x9.78x…

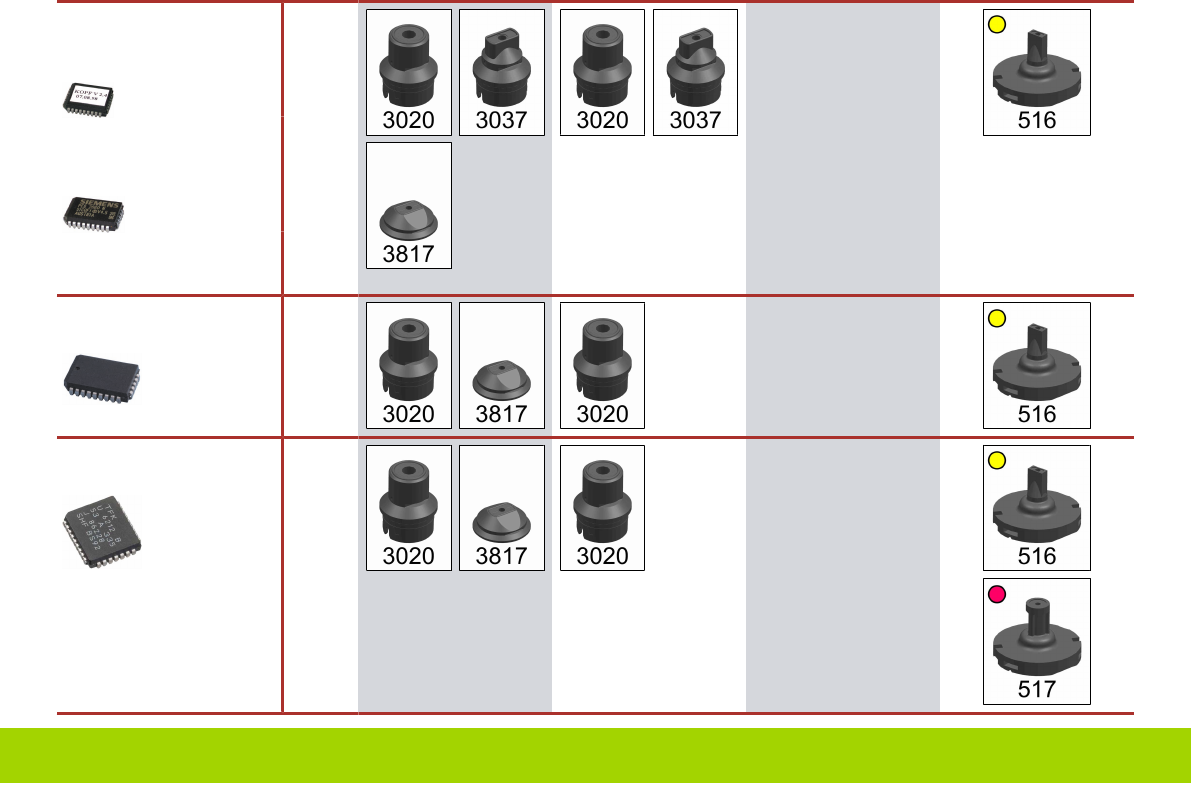

PLCC 18R /
11.75*8.25
[11.75x8.25x3.45]
708
PLCC 18R /
13.45*8.25
[13.45x8.25x3.45]
709
PLCC 22R
[13.45x8.25x3.45]
710
PLCC 28R
[15.05x9.95x3.45]
711
PLCC 32R
[15.05x12.45x3.4]
712
5 - 5
www.e-by-siplace.com

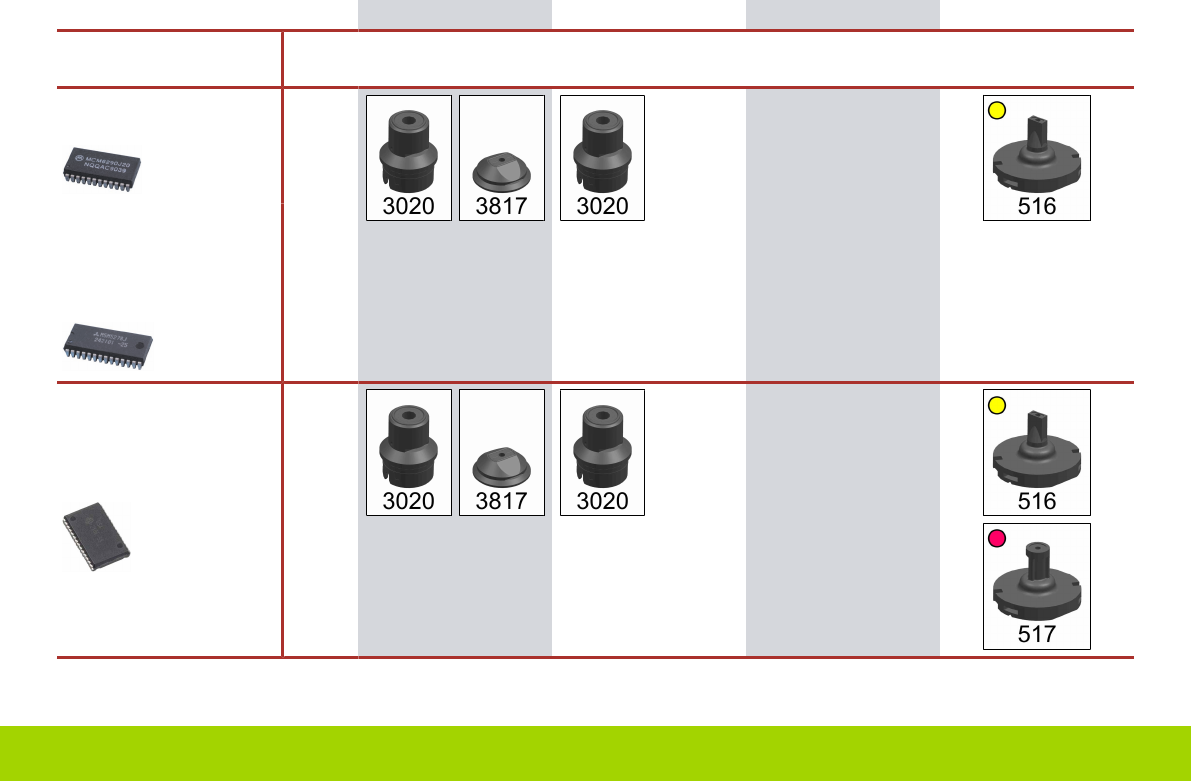

PLCC/SOJ components CP6 CP12 CP14 PP / TH
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
SOJ 24/b8.6
[15.88x8.66x3.5]
800
SOJ 26/b8.6
[17.15x8.66x3.5]
801
SOJ 28/b8.66
[18.41x8.66x3.5]
802
SOJ 28/b9.8
[18.42x9.78x3.5]
803
SOJ 28/b18.42
[18.42x11.18x3.5]
804
5 - 6
www.e-by-siplace.com

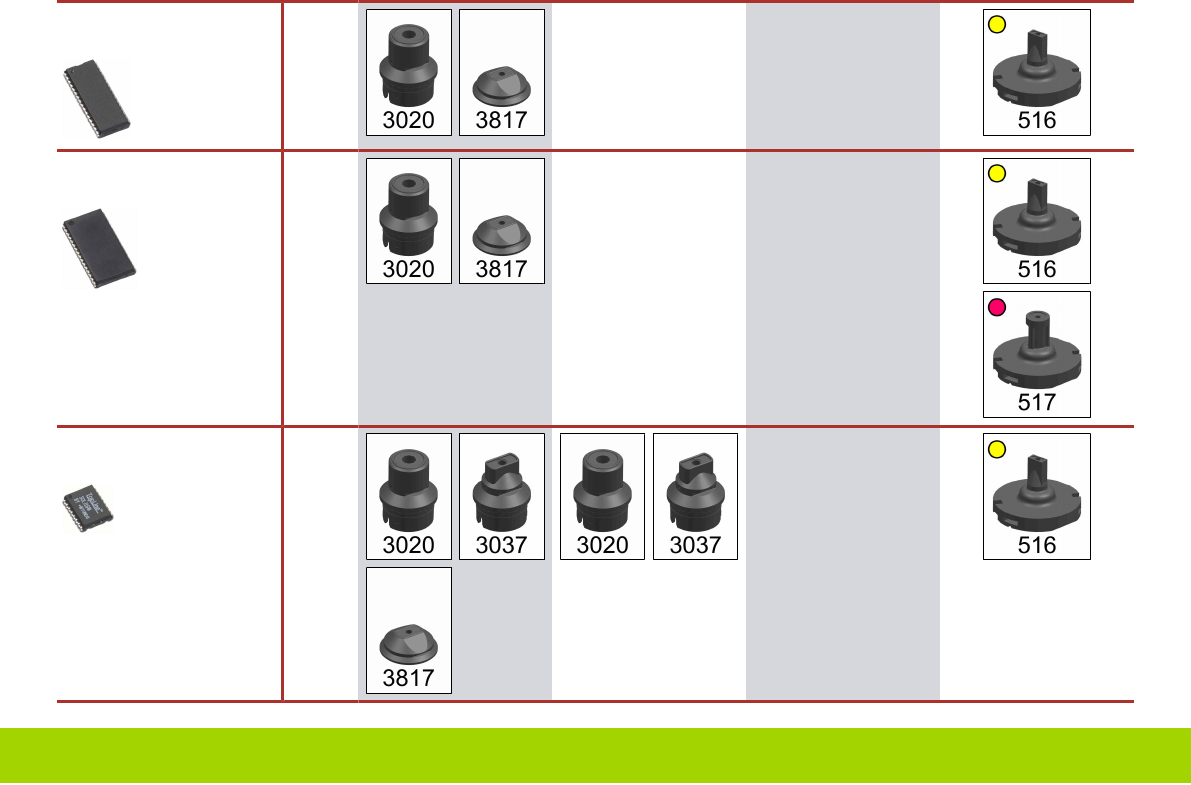

SOJ 32/b8.5
[20.96x8.51x3.5]
805
SOJ 32/b11.2
[20.96x11.16x3.5]
806
SOJ 16
[10.3x8.7x3.2]
807
5 - 7
www.e-by-siplace.com
