6 - QFP Components and Standard Nozzles 6 - 1 www.e-by-siplace.com

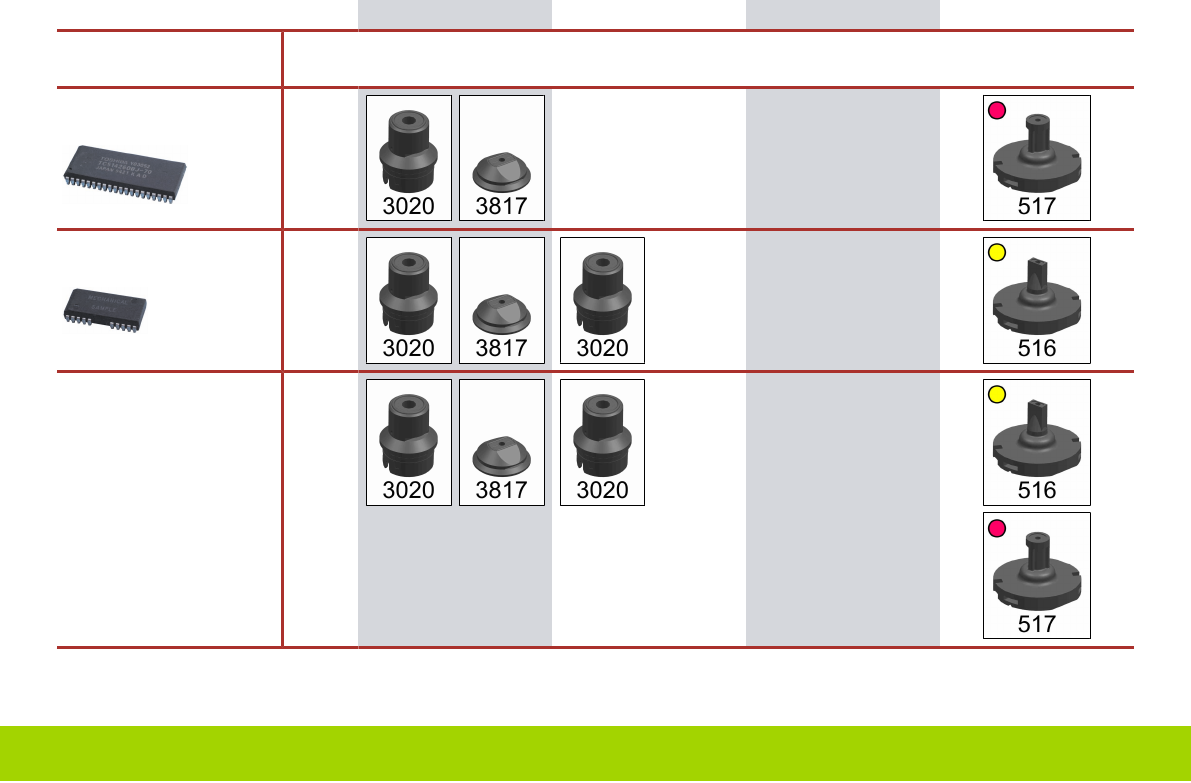

PLCC/SOJ components CP6 CP12 CP14 PP / TH
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
SOJ 40
[26.1x11.2x2.5]
809
SOJ 26_20/b8.5
[17.15x8.51x3.5]
810
SOJ 26_20/b9.5
[17.15x9.78x3.5]
811
5 - 8
www.e-by-siplace.com
6 - QFP Components and Standard Nozzles
6 - 1
www.e-by-siplace.com

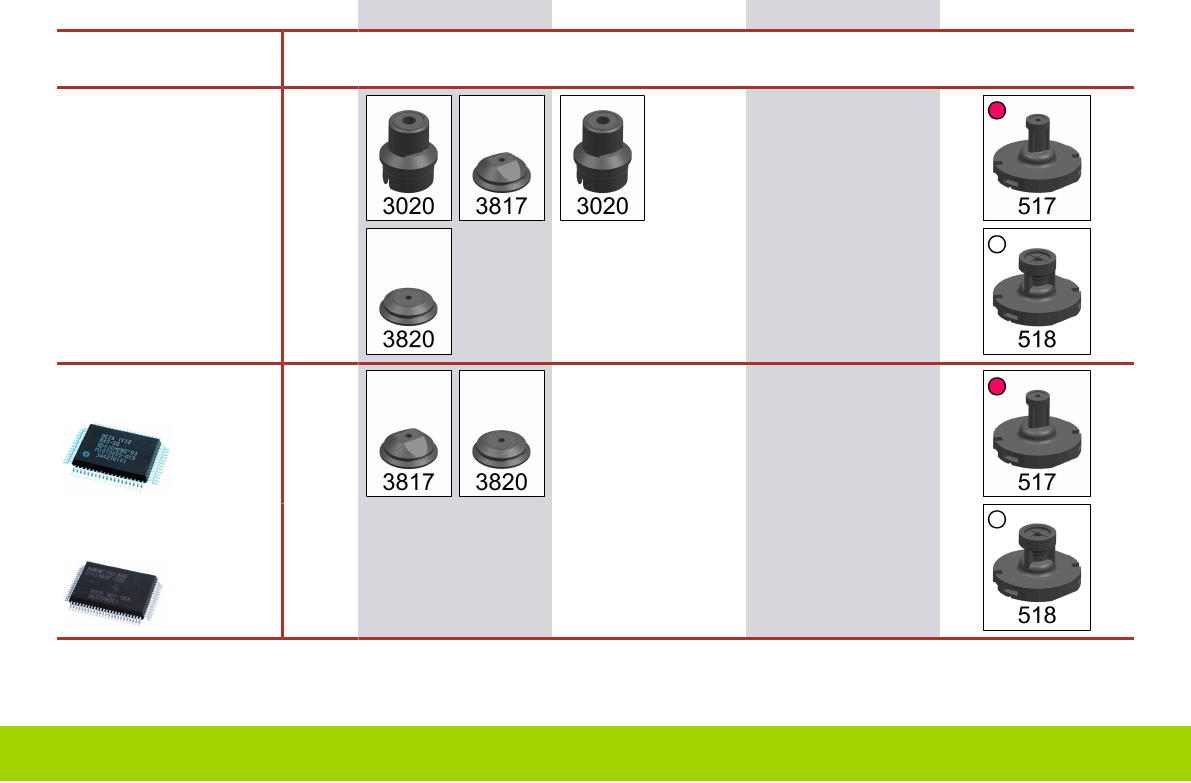

QFP components CP6 CP12 CP14 PP / TH
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
QFP 44_1.0
[18.6x18.6x2.6]
900
QFP 64R_1.0
[24.7x18.7x3.2]
903
QFP 80R_1.0
[24.7x18.7x3.2]
913
6 - 2
www.e-by-siplace.com
