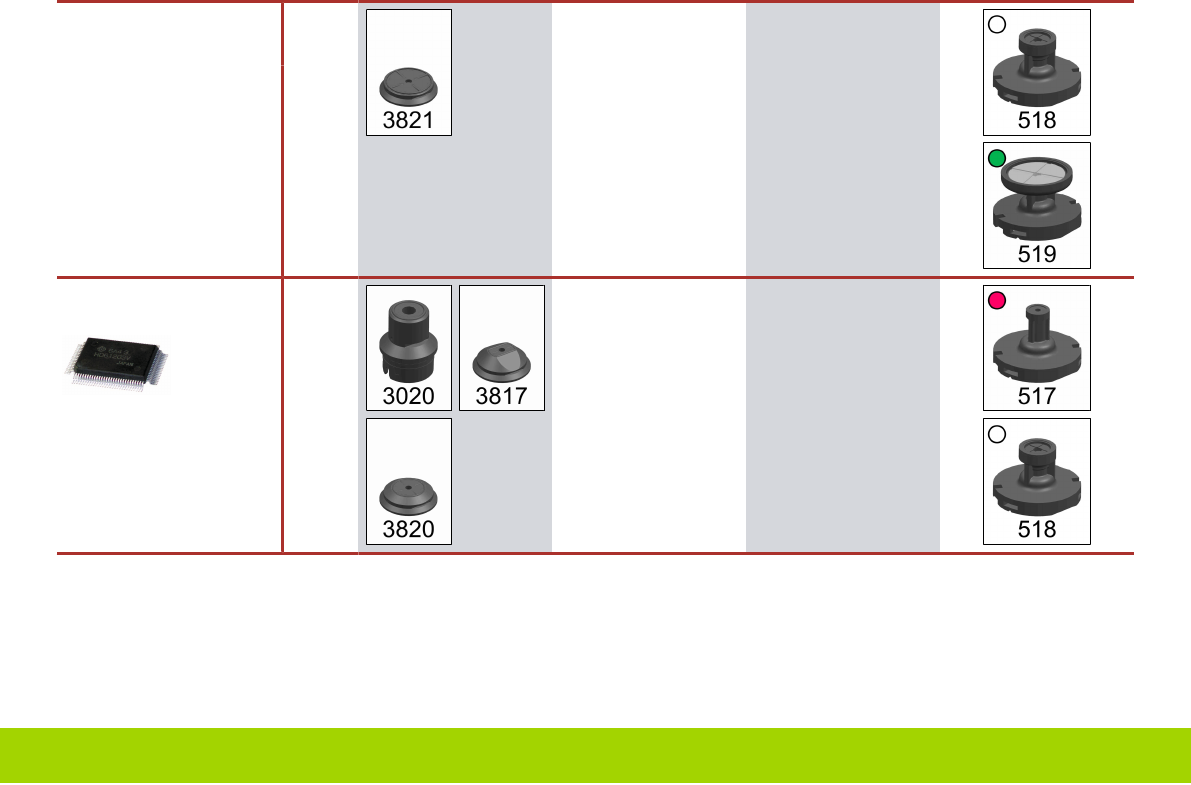

QFP components CP6 CP12 CP14 PP / TH Component shape [LxWxH (mm)] CS file Nozzle types QFP 44 _1.0 [18.6x18.6x2.6] 900 QFP 64R _1.0 [24.7x18.7x3.2] 903 QFP 80R _1.0 [24.7x18.7x3.2] 913 6 - 2 www.e-by-siplace.com

100%1 / 86
6 - QFP Components and Standard Nozzles
6 - 1
www.e-by-siplace.com
QFP components CP6 CP12 CP14 PP / TH
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
QFP 44_1.0
[18.6x18.6x2.6]
900
QFP 64R_1.0
[24.7x18.7x3.2]
903
QFP 80R_1.0
[24.7x18.7x3.2]
913
6 - 2
www.e-by-siplace.com
QFP 120_0.8
[32.5x32.5x3.8]
916
QFP 128_0.8
[32.5x32.5x3.8]
917
QFP 100R_0.65
[24.7x18.8x3.2]
922
6 - 3
www.e-by-siplace.com
