7 - Various Components and Standard Nozzles
7 - 1
www.e-by-siplace.com

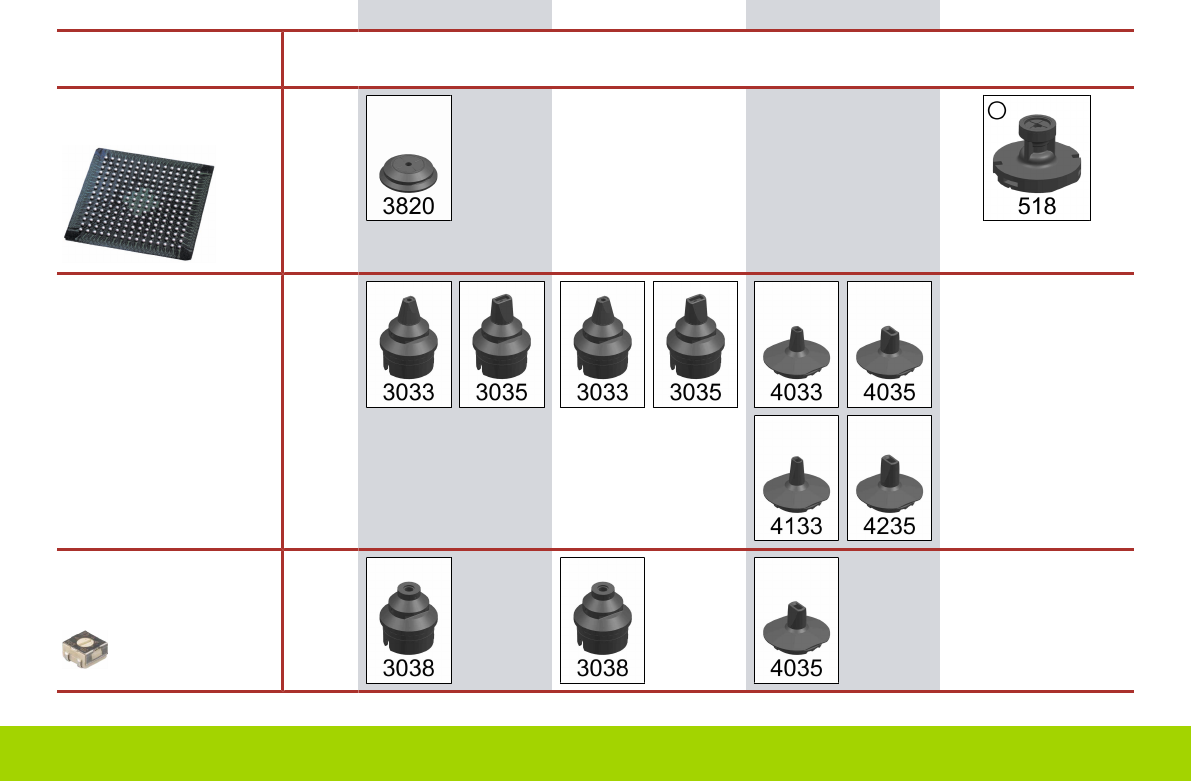

Various components CP6 CP12 CP14 PP / TH
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
BGA 255_1.50
[27.0x27.0x2.2]
1100
TOPLED
[3.2x2.8x1.9]
1201
Poti BOURNS 3314J
light
[5.0x5.2x2.7]
1202
7 - 2
www.e-by-siplace.com

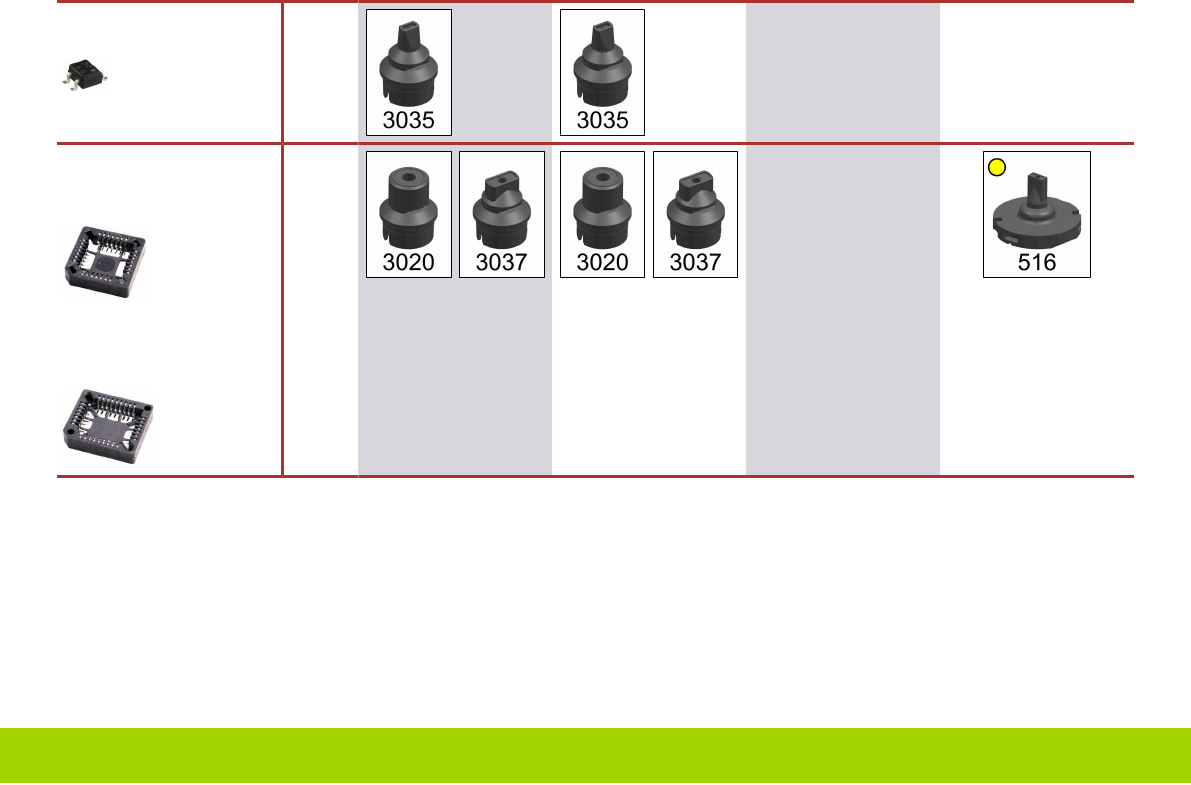

Bridge Rectifier
[4.8x6.8x2.6]
1203
Socket PLCC 28
METHOD
[17.0x17.0x1.5]
719
Socket PLCC 32
METHOD
[20.3x17.8x1.5]
720
7 - 3
