PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 7 挿入ﾍｯﾄ ﾞ部(挿入 動力部3) INSERTION H EAD SECT. (INSERTION P OWER SECT. -3) 部 品 名 品 番 個数 備 考 R 1 R 2 MSMD042PJA S 1 A002 N610074303AA MOTOR ﾓｰﾀ 1 008 N210145709AA SPRING ﾊ…
挿入ﾍｯﾄﾞ部(挿入動力部3)
INSERTION HEAD SECT.(INSERTION POWER SECT.-3)
7
FN610129985AA_05-3
M107
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
挿入ﾍｯﾄﾞ部(挿入動力部3)
INSERTION HEAD SECT.(INSERTION POWER SECT.-3)
部 品 名 品 番 個数
備 考
R
1
R
2
MSMD042PJA S
1
A002
N610074303AA
MOTOR ﾓｰﾀ
1
008 N210145709AA
SPRING ﾊﾞﾈ
1
016 N210084989AB
PLATE ﾌﾟﾚｰﾄ
1017 X02G45106
BRACKET(SENSOR) ﾌﾞ
ﾗｹｯﾄ(ｾﾝｻ)
1021 X02G45111
PULLEY(TIMING) ﾌﾟｰﾘｰ(
ﾀｲﾐﾝｸﾞ)
1
028 N210092175AC
LEVER ﾚﾊﾞｰ
1
029 X02G45126
WASHER ﾜｯｼｬ
2051 N210092183AA
SPRING ｽﾌ
ﾟﾘﾝｸﾞ
4056 N210048696AA
WASHER ﾜｯｼｬ
1
057 N210092184AA
BRACKET ﾌﾞﾗｹｯﾄ
3058 N210084980AA
COLLAR ｶﾗ-
1059 N210084981AA
COLLAR ｶﾗｰ
1
060 X01A45069
COLLAR ｶﾗｰ
1
067 X01A45090
PIN ｼﾃﾝﾋﾟﾝ
87FWSSM-D15.0-V8.0-T3
1
N016
N510038169AA
WASHER ﾜｯｼｬ
EE-SX672
1
N017
KXF01YHAA00
SENSOR ｾﾝｻ
6905ZZ
2
N032
KXF06P1AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
CFN8R-A
1
N033
N531CFN8RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
P0S8L
1
N036
N534P0S8L
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
POS8
1
N037
N534P0S8
ROD END ﾛｯﾄ
ﾞｴﾝﾄﾞ
M8,1-TYPE,STEEL,Z.C.T
1
N046
N510018953AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
F696ZZIMC3PS2S
4
N047
N510020363AA
BEARING ﾍﾞｱﾘﾝｸﾞ
87LBMFN8-130
1
N051
N510038167AA
ROD ﾛｯﾄ
ﾞ
M4X16-10.9 A2J (Triva
6
X506
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X16-10.9 A2J (Triva
3
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X10-10.9 A2J (Triva
3
X511
N510017424AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X20-10.9 A2J (Triva
3
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M8X20-10.9 A2J (Triva
5
X516
N510017472AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
2
X561
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
4
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
3
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
6 10H A2J (Trivalent)
3
X564
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
8 10H A2J (Trivalent)
8
X565
N510018503AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M3
2
X571
N510020098AA
WASHER ｻﾞｶﾞﾈ
Thick washer for M8
3
X575
N510020102AA
WASHER ｻﾞ
ｶﾞﾈ
M6-6H-4T A2J (Trivale
2
X594
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M3X6-10.9 A2J (Trival
2
X609
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X10-10.9 A2J (Triva
2
X610
N510017305AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X12-10.9 A2J (Triva
1
X629
N510017428AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X45-10.9 A2J (Triva
1
X633
N510017444AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M108
FN610129985AA_05-3

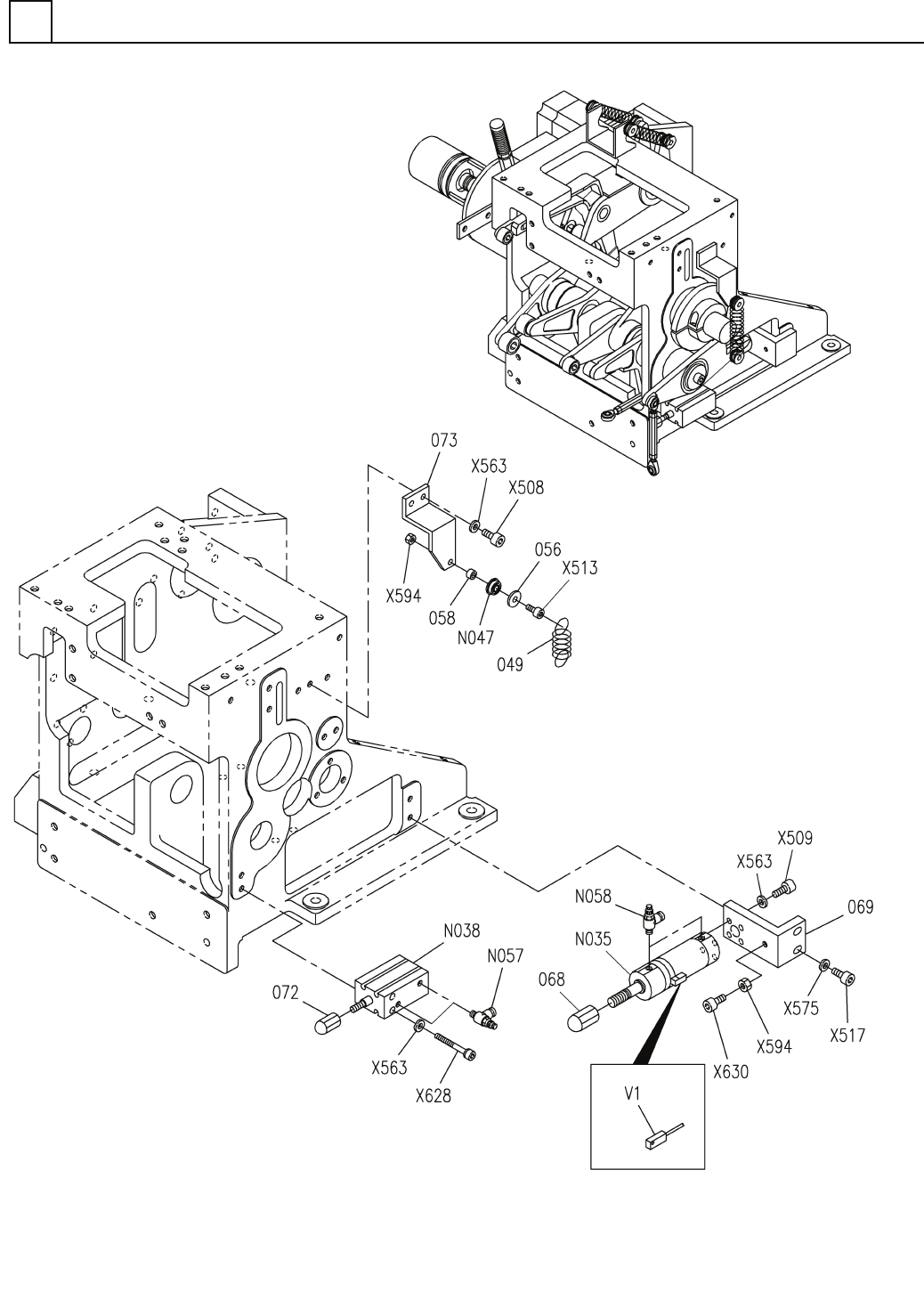

挿入ﾍｯﾄﾞ部(挿入動力部4)
INSERTION HEAD SECT.(INSERTION POWER SECT.-4)
7
FN610129985AA_05-4
M109
