部品手册2N7203A389B03 - 第179页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 9 ﾃｰﾌﾟ屑ﾀ ﾞｸﾄ部(80 ｽﾃｰｼｮﾝ) WASTE T APE DUCT SECT. (80 STATI ON) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610130631AA WASTE TAPE DUCT UNIT ﾃｰﾌﾟ ｸｽﾞ ﾀﾞｸﾄﾕﾆｯﾄ 2 001 N210152892AB DUCT ﾀ…

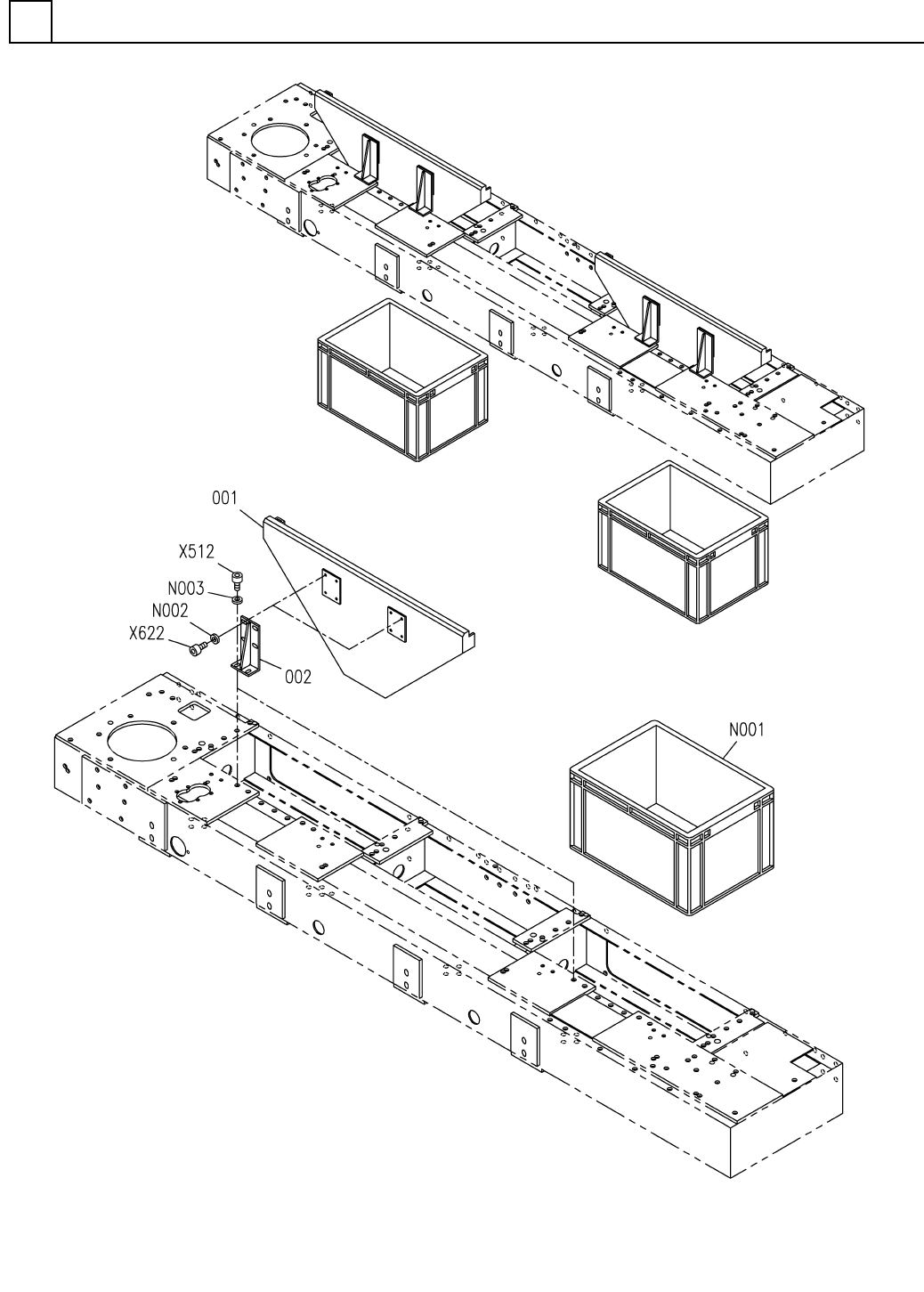

ﾃｰﾌﾟ屑ﾀﾞｸﾄ部(80ｽﾃｰｼｮﾝ)
WASTE TAPE DUCT SECT.(80 STATION)
9
FN610130631AA_03
M147
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
9
ﾃｰﾌﾟ屑ﾀﾞｸﾄ部(80ｽﾃｰｼｮﾝ)
WASTE TAPE DUCT SECT.(80 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610130631AA
WASTE TAPE DUCT UNIT ﾃｰﾌﾟ
ｸｽﾞ ﾀﾞｸﾄﾕﾆｯﾄ
2
001 N210152892AB
DUCT ﾀﾞｸﾄ
4
002 X02P14008
BRACKET ﾌﾞﾗｹｯﾄ
NMC406-Blue
2
N001
N510040711AA
BOX ﾎ
ﾞｯｸｽ
M5
16
N002
N510020100AA
WASHER ｻﾞ
ｶﾞﾈ
M6
8
N003
N510020101AA
WASHER ｻﾞｶﾞﾈ
M6X16-10.9 A2J (Triva
8
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10-10.9 A2J (Triva
16
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M148
FN610130631AA_03
下部ｱﾝﾋﾞﾙ部(本体部1)
LOWER ANVIL SECT.(MAIN BODY SECT.-1)
10
FN610074515AA_10-1
