PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 10 下部ｱﾝﾋﾞﾙ部 (本体部 1) LOWER ANVIL SECT.(MA IN BODY SECT .-1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610074515AA UNDER ANVIL U NIT ｶﾌﾞ ｱﾝﾋﾞﾙﾕﾆｯﾄ 1 A001 N610135836AA SHAFT ｼｬﾌﾄ 1 0…

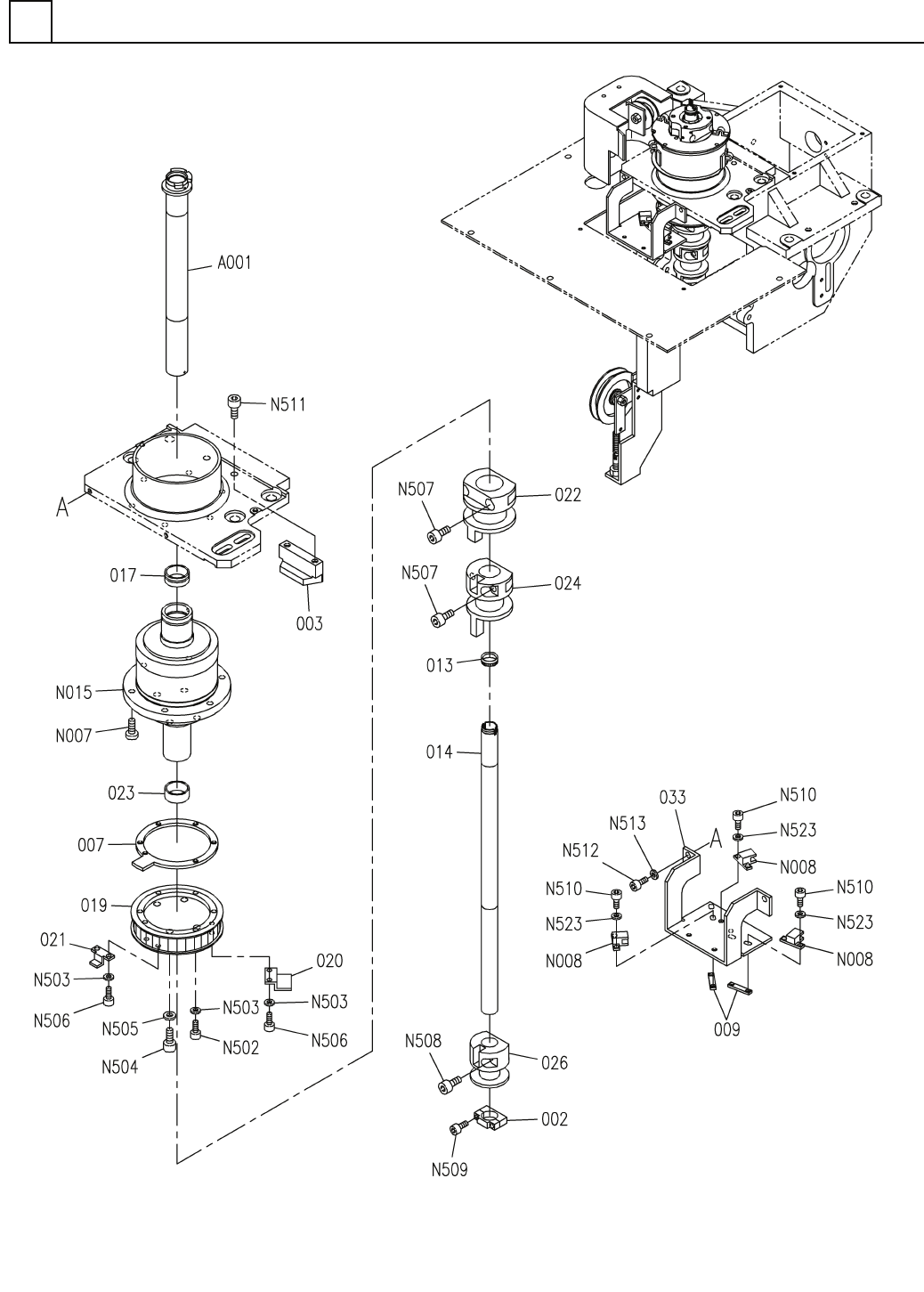

下部ｱﾝﾋﾞﾙ部(本体部1)
LOWER ANVIL SECT.(MAIN BODY SECT.-1)
10
FN610074515AA_10-1
M149
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
10
下部ｱﾝﾋﾞﾙ部(本体部1)
LOWER ANVIL SECT.(MAIN BODY SECT.-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610074515AA
UNDER ANVIL UNIT ｶﾌﾞ
ｱﾝﾋﾞﾙﾕﾆｯﾄ
1
A001
N610135836AA
SHAFT ｼｬﾌﾄ
1
002 X02G52102
COLLAR ｶﾗｰ
1003 X02G52103
BLOCK(STOPPER) ﾌﾞ
ﾛｯｸ(ｽﾄｯﾊﾟ)
1007 X02G52112
PLATE(STOPPER) ﾌﾟﾚｰﾄ(
ｽﾄｯﾊﾟ)
2
009 N210084456AA
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
1
013 N210157565AA
NUT ﾅｯﾄ
1014 X01L52013
ROD ﾛｯﾄ
ﾞ
1017 X01L52018
BUSHING ﾌﾞｯｼｭ
1
019 N210139012AA
PULLEY ﾌﾟｰﾘ
1020 X01L52023
DETECTION PLATE ｹﾝｼｭﾂﾊﾞﾝ
1021 X01L52024
DETECTION PLATE ｹﾝｼｭﾂﾊ
ﾞﾝ
1
022 N210131187AA
PUSHER ﾌﾟｯｼｬ
1
023 X01L52026
BUSHING ﾌﾞｯｼｭ
1024 N210131168AA
PUSHER ﾌﾟｯｼｬ
1026 N210131178AA
PUSHER ﾌ
ﾟｯｼｬ
1
033 X01L52058
BRACKET(SENSOR) ﾌﾞﾗｹｯﾄ(ｾﾝｻ)
M6X20-10.9 A2J (Triva
6
N007
N510017558AA
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ
EE-SX672A
3
N008
N310EESX672A
SENSOR ｾﾝｻ
LTR32UUZZCL+170LPN(12
1
N015
N510058201AA
BALL SPLINE ﾎﾞ
ｰﾙｽﾌﾟﾗｲﾝ
M3X25-10.9 A2J (Triva
6
N502
N510017321AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
10
N503
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M6X12-10.9 A2J (Triva
4
N504
N510017428AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
6 10H A2J (Trivalent)
4
N505
N510018481AA
ROUND PLAIN WASHER ｺｶﾞ
ﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
M3X5-10.9 A2J (Trival
4
N506
N510017333AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X20-10.9 A2J (Triva
4
N507
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X16-10.9 A2J (Triva
2
N508
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X16-10.9 A2J (Triva
2
N509
N510017313AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X10-10.9 A2J (Triva
6
N510
N510017305AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X16-10.9 A2J (Triva
2
N511
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10-10.9 A2J (Triva
2
N512
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
5 10H A2J (Trivalent)
2
N513
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
No.2 3 S A2J (Trivale
6
N523
N510018327AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
M150
FN610074515AA_10-1
下部ｱﾝﾋﾞﾙ部(本体部2)
LOWER ANVIL SECT.(MAIN BODY SECT.-2)
10
FN610074515AA_10-2
M151
