部品手册2N7203A389B03 - 第233页
PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 17 部品供 給部（ﾃｰﾌﾟﾌ ｨｰﾀﾞ駆動部 2）(40ｽﾃ ｰｼｮﾝ) FEEDER CARRIAGE SECT .(TAPE FE EDER DRIVING SECT.-2)( 40 STATIO N) 部 品 名 品 番 個数 備 考 R 1 R 2 1 001 N210145900AA PLATE ﾌ ﾟﾚｰﾄ 2 0…

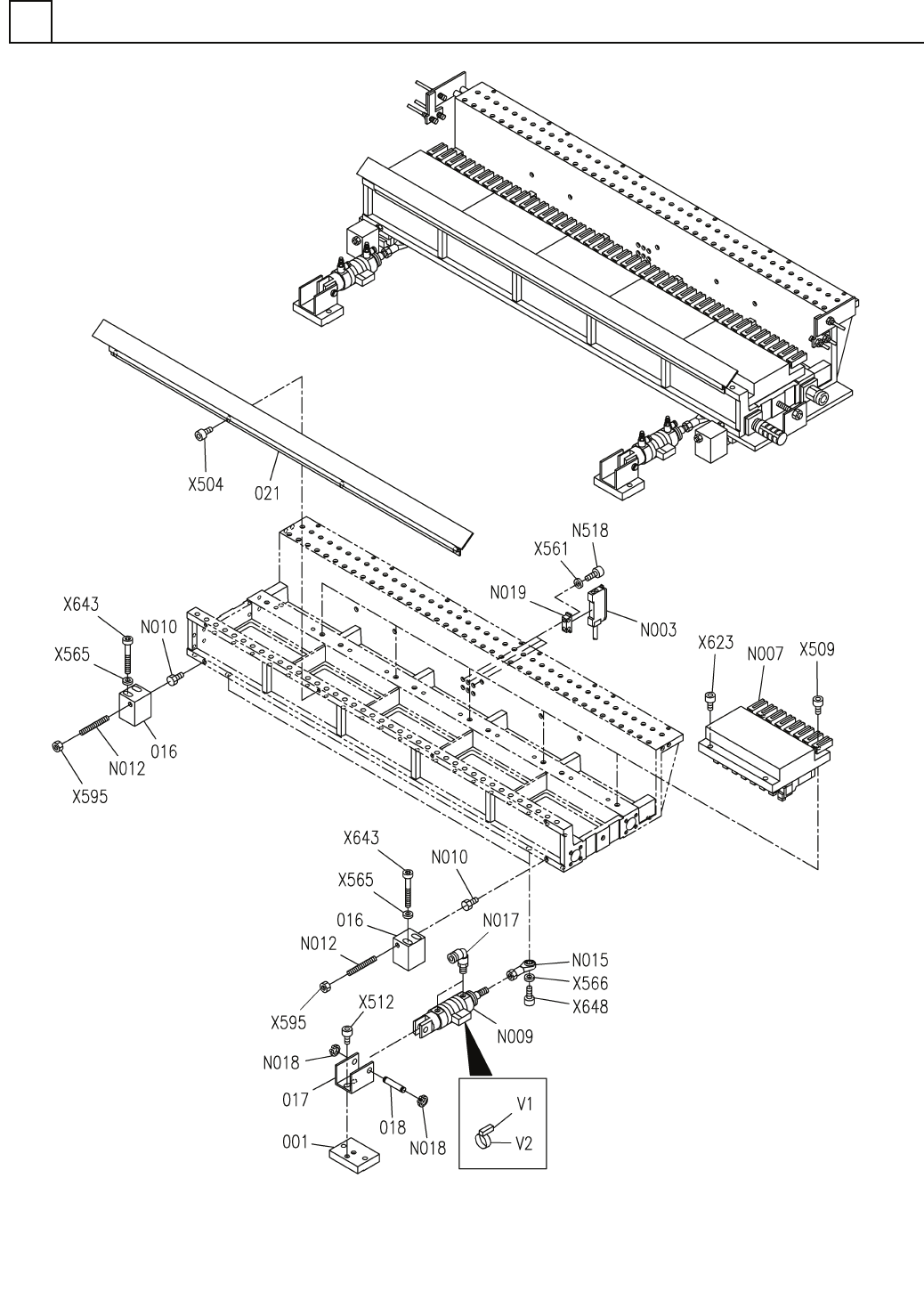

部品供給部（ﾃｰﾌﾟﾌｨｰﾀﾞ駆動部2）(40ｽﾃｰｼｮﾝ)
FEEDER CARRIAGE SECT.(TAPE FEEDER DRIVING SECT.-2)(40 STATION)
17
FN610123557AA_05-2
M201
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
17
部品供給部（ﾃｰﾌﾟﾌｨｰﾀﾞ駆動部2）(40ｽﾃｰｼｮﾝ)
FEEDER CARRIAGE SECT.(TAPE FEEDER DRIVING SECT.-2)(40 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1001 N210145900AA
PLATE ﾌ
ﾟﾚｰﾄ
2
016 N210114725AA
BLOCK ﾌﾞﾛｯｸ
2
017 N210091896AA
BRACKET ﾌﾞﾗｹｯﾄ
2018 N210091897AA
PIN ﾋ
ﾟﾝ
1021 N210124702AB
CHUTE ｼｭｰﾄ
E3X-NA11
3
N003
N310E3XNA11
AMPLIFIER ｱﾝﾌﾟ
NK-81296
5
N007
N510051545AA
CYLINDER ｼﾘﾝﾀﾞ
MF32X10-S-CA-TRA002B
2
N009
N510059534AA
CYLINDER ｼﾘﾝﾀ
ﾞ
SPM-M5
2
N010
N510038036AA
STOPPER ｽﾄｯﾊ
ﾟ
87ANBN8-60
2
N012
N510032612AA
SCREW ｽｸﾘｭｰ
SIBP10S/B1
2
N015
N510059544AA
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
KJL06-01S
4
N017
KXF029KAA00
FITTING ﾂｷ
ﾞﾃ
STW-9
4
N018
KXF0A74AA00
RETAINING RING C-TYPE,SHAFT Cｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
E39-L143
3
N019
KXF0E0BBA00
BRACKET ﾄﾘﾂｹｶﾅｸﾞ
M8X60-10.9 A2J (Triva
4
X643
N510017485AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8-6H-4T A2J (Trivale
2
X595
N510017877AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5X16-10.9 A2J (Triva
10
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X25-10.9 A2J (Triva
10
X623
N510017399AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X6-10.9 A2J (Trival
4
X504
N510017376AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M10X25-10.9 A2J (Triv
2
X648
N510017166AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
8 10H A2J (Trivalent)
4
X565
N510018503AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M6X16-10.9 A2J (Triva
4
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
6
X561
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
10 10H A2J (Trivalent
2
X566
N510018505AA
WASHER ﾋﾗｻ
ﾞｶﾞﾈ
M3X8-6g 4T A2J (Triva
6
N518
N510017721AA
HEXAGON HEAD BOLT ﾛｯｶｸﾎﾞﾙﾄ
CS1-S-2
2V 1 N510059720AA
SWITCH ｽｲｯﾁ
BL-S-32
2V 2 N510059721AA
BAND ﾊ
ﾞﾝﾄﾞ
M202
FN610123557AA_05-2

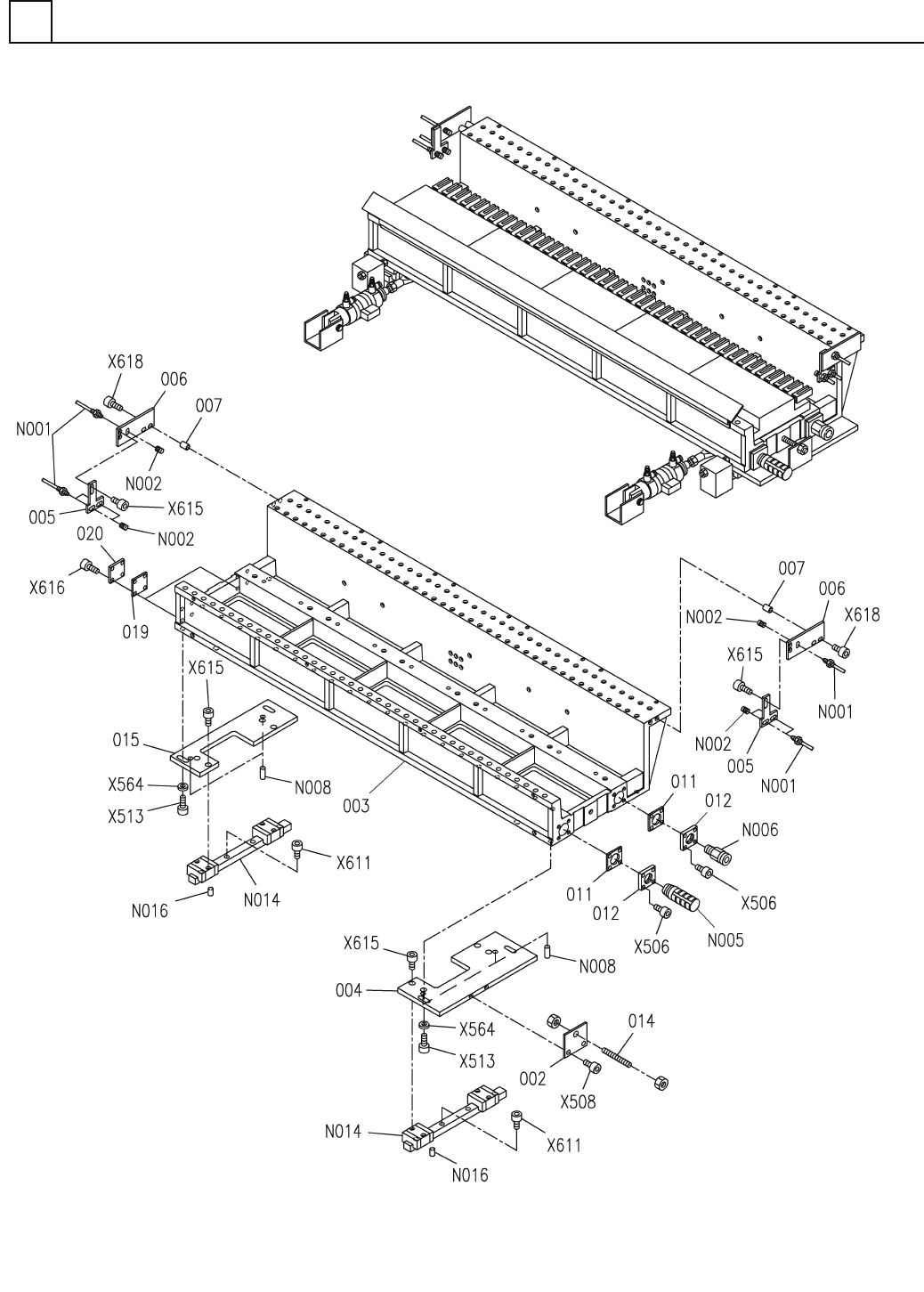

部品供給部（ﾃｰﾌﾟﾌｨｰﾀﾞ駆動部1）(80ｽﾃｰｼｮﾝ)
FEEDER CARRIAGE SECT.(TAPE FEEDER DRIVING SECT.-1)(80 STATION)
17
FN610131770AA_02-1
M203
