部品手册2N7203A389B03 - 第242页

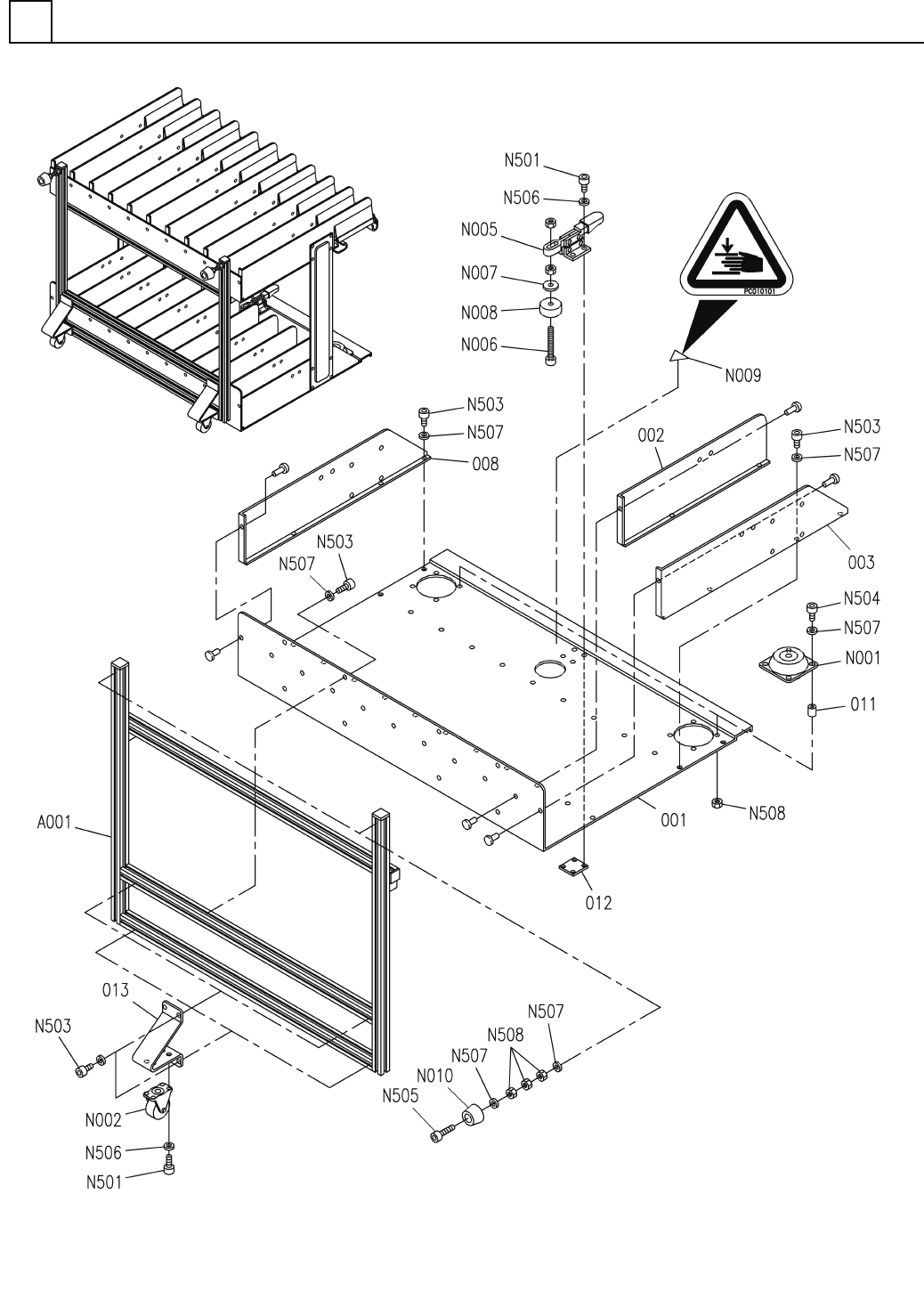

部品ﾎﾞ ｯｸｽ部(ｷｬｽﾀｰ付 き<小> 1) PARTS BOX SECT.(CAST OR TYPE<S MALL>-1) 18 FN610116453AA_01-1 M211
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
18
部品ﾎﾞｯｸｽ部(ｷｬｽﾀｰ付き<大>2)
PARTS BOX SECT.(CASTER TYPE<LARGE>-2)
部 品 名 品 番 個数
備 考
R
1
R
2
2004 N210137290AA
PLATE ﾌ
ﾟﾚｰﾄ
1
005 N210137284AA
FRAME ﾌﾚｰﾑ
1
006 N210098714AB
GUIDE ｶﾞｲﾄﾞ
1007 N210098713AA
GUIDE ｶ
ﾞｲﾄﾞ
1009 N210137291AA
SEPARATOR ｾﾊﾟ
ﾚｰﾀ
2
010 N210137280AC
SEPARATOR ｾﾊﾟﾚｰﾀ
8
011 N210137282AC
SEPARATOR ｾﾊﾟﾚｰﾀ
1015 N210103746AA
SEAL ｼｰﾙ
THA-31-6
1
N003
N982THA3406A
DRAWER PULL ﾄｯﾃ
THA-268-3452
2
N004
N982THA3452
WASHER ｻﾞｶﾞﾈ
M5X6-10.9 A2J (Trival
6
N502
N510017414AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X8-10.9 A2J (Trival
2
N503
N510017419AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
5 10H A2J (Trivalent)
2
N507
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M210
FN610116452AA_02-2
部品ﾎﾞｯｸｽ部(ｷｬｽﾀｰ付き<小>1)
PARTS BOX SECT.(CASTOR TYPE<SMALL>-1)
18
FN610116453AA_01-1
M211
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
18
部品ﾎﾞｯｸｽ部(ｷｬｽﾀｰ付き<小>1)
PARTS BOX SECT.(CASTOR TYPE<SMALL>-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610116453AA
PARTS BOX UNIT ﾌﾞﾋﾝﾎ
ﾞｯｸｽﾕﾆｯﾄ
1
A001
N610132100AA
HANDLE ﾊﾝﾄﾞﾙ
1
001 N210137278AC
FRAME ﾌﾚｰﾑ
9002 N210137457AB
SEPARATOR ｾﾊ
ﾟﾚｰﾀ
1003 N210137281AC
PLATE ﾌﾟﾚｰﾄ
1
008 N210137288AC
PLATE ﾌﾟﾚｰﾄ
8
011 N210137289AA
BLOCK ﾌﾞﾛｯｸ
1012 X02P70660
NUT PLATE ﾅｯﾄﾌ
ﾟﾚｰﾄ
2013 N210153441AB
BRACKET ﾌﾞﾗｹｯﾄ
420-OTP-00N32
2
N001
N510014936AA
CASTER ｷｬｽﾀｰ
87CASR 420R-38R
2
N002
N510059311AA
CASTER ｷｬｽﾀｰ
No.HH350
1
N005
KXF05UBAA00
CLAMP ｸﾗﾝﾌ
ﾟ
M6X65-10.9 A2J (Triva
1
N006
N510017453AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
87WASMH25-6
1
N007
N510034997AA
WASHER ﾜｯｼｬ
C-30-RK-3617
1
N008
KXF0AAKAA00
RUBBER LEG ｺﾞﾑｱｼ
PC010101 S
1
N009
N986PC010101
LABEL ﾗﾍ
ﾞﾙ
TK-3220
2
N010
N510057852AA
RUBBER LEG ｺﾞﾑｱｼ
M4X8-10.9 A2J (Trival
12
N501
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X8-10.9 A2J (Trival
12
N503
N510017419AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X25-10.9 A2J (Triva
8
N504
N510017399AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X45-10.9 A2J (Triva
1
N505
N510017408AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
4 10H A2J (Trivalent)
12
N506
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
24
N507
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M5-6H-4T A2J (Trivale
14
N508
N510017865AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M212
FN610116453AA_01-1
