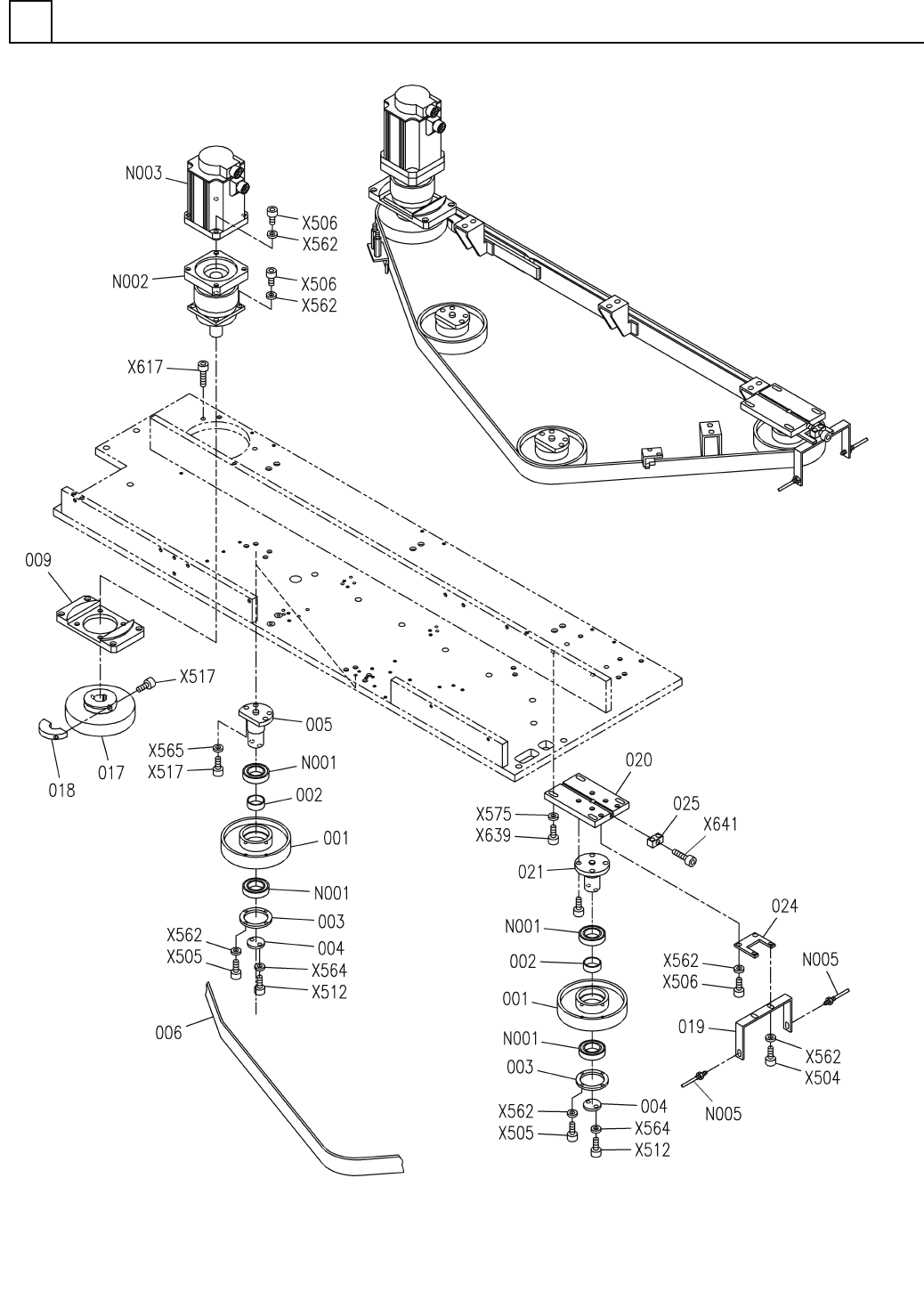

部品搬送部(2)(40ｽﾃｰｼｮﾝ)
PARTS TRANSFER SECT.(2)(40 STATION)
19
FN610123556AA_05-2
M223
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
　　　　　　　　　 PART NAME
　　　 REMARKS　
Q'TY
19
部品搬送部(2)(40ｽﾃｰｼｮﾝ)
PARTS TRANSFER SECT.(2)(40 STATION)
部 品 名 品　 番 個数
備 考
R
1
R
2
3001 X01A35005
PULLEY(TIMING) ﾌﾟｰﾘｰ
(ﾀｲﾐﾝｸﾞ)
3
002 X01A35006
COLLAR ｶﾗｰ
3
003 X01A35008
COLLAR ｶﾗｰ
3004 X02G35101
COLLAR ｶﾗｰ
2005 X01A35004A
SHAFT ｼｬﾌﾄ
1
006 N210148102AA
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ)
1
009 N210147040AA
BLOCK(MOUNT) ﾌﾞﾛｯｸ(ﾏｳﾝﾄ)
1017 N210147177AA
PULLEY ﾌ
ﾟｰﾘ
1018 N210147199AA
NUT ﾅｯﾄ
1
019 N210145906AA
BRACKET ﾌﾞﾗｹｯﾄ
1020 N210145905AA
PLATE ﾌﾟﾚｰﾄ
1021 X01A35012A
SHAFT ｼｬﾌﾄ
1
024 N210145907AA
BRACKET ﾌﾞﾗｹｯﾄ
1
025 N210146449AA
BLOCK ﾌﾞﾛｯｸ
6008ZZ
6
N001
XLC6008ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
PAT-B320S009KP1-K3M(G
1
N002
N510057986AA
GEAR HEAD ｷﾞ
ﾔｰﾍｯﾄﾞ
MDMA202P1C S
1
N003
MDMA202P1C
MOTOR ﾓｰﾀ
E32-TC200
1
N005
N310E32TC200
SENSOR ｾﾝｻ
M4X6-10.9 A2J (Trival
2
X504
N510017376AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Triva
12
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X16-10.9 A2J (Triva
6
X506
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X16-10.9 A2J (Triva
4
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X25-10.9 A2S (Triva
12
X517
N510017474AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
4 10H A2J (Trivalent)
20
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
6 10H A2J (Trivalent)
6
X564
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
8 10H A2J (Trivalent)
12
X565
N510018503AA
WASHER ﾋﾗｻﾞｶﾞﾈ
Thick washer for M8
4
X575
N510020102AA
WASHER ｻ
ﾞｶﾞﾈ
M4X20-10.9 A2J (Triva
4
X617
N510017354AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X40-10.9 A2J (Triva
4
X639
N510017478AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X50-10.9 A2J (Triva
1
X641
N510017482AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
