PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 20 部品加工部 (Vｶｯﾄ部 (2P/3P)1) PART PROCES S SECT. ( V-CUT SECT.( 2P/3P)-1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610125960AA PARTS PROCESS UNIT ﾌﾞﾋﾝｶｺｳﾕﾆｯﾄ 1 001 N210149186AA BLOC…
部品加工部(Vｶｯﾄ部(2P/3P)1)
PART PROCESS SECT. (V-CUT SECT.(2P/3P)-1)
20
FN610125960AA_02-1
M257
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(Vｶｯﾄ部(2P/3P)1)
PART PROCESS SECT. (V-CUT SECT.(2P/3P)-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610125960AA
PARTS PROCESS UNIT ﾌﾞﾋﾝｶｺｳﾕﾆｯﾄ
1
001 N210149186AA
BLOCK ﾌﾞﾛｯｸ
1
002 N210131188AA
PUSHER ﾌﾟｯｼｬ
2003 X02G13105
PIN ﾋ
ﾟﾝ
1004 X02G13111
COLLAR ｶﾗｰ
1
005 X01L1300201
FORK ﾌｫｰｸ
1
010 X01A13001
HOOK ﾌｯｸ
1011 N210156839AA
GUIDE ｶ
ﾞｲﾄﾞ
2013 X01A13014
BUSHING ﾌﾞｯｼｭ
2
014 X01A13016
BUSHING ﾌﾞｯｼｭ
1026 N210108085AA
PLATE ﾌﾟﾚｰﾄ
1027 N210130940AB
LEVER ﾚﾊ
ﾞｰ
1
030 N210088893AB
PIN ﾋﾟﾝ
6566
1
N001
N9866566
SPRING ﾊﾞﾈ
87SBSPO4-30
1
N002
N510023413AA
POST ﾎﾟｽﾄ
MR95ZZ1
2
N003
N510001936AA
BEARING ﾍﾞ
ｱﾘﾝｸﾞ
SPP4-15
2
N004
KXF052RAA00
PIN ﾋﾟﾝ
NP3.2X3.5
2
N006
N560NP3.23.5
GREASE NIPPLE ｸﾞﾘｽﾆｯﾌﾟﾙ
MMS4-10
2
N015
N986MMS410
PIN ﾋﾟﾝ
M4X20-6g 4T A2J (Triv
1
N017
N510017729AA
HEXAGON HEAD BOLT ﾛｯｶｸﾎ
ﾞﾙﾄ
M3X5-10.9 A2J (Trival
1
X501
N510017333AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X12-10.9 A2J (Triva
3
X503
N510017308AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trival
4
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X12-10.9 A2J (Triva
4
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X25-10.9 A2J (Triva
1
X618
N510017359AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X12-10.9 A2J (Triva
2
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X20-10.9 A2J (Triva
2
X510
N510017398AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X20-10.9 A2J (Triva
2
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
6 10H A2J (Trivalent)
2
X564
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
3 10H A2J (Trivalent)
1
X551
N510018478AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
4
X553
N510018480AA
ROUND PLAIN WASHER ｺｶﾞ
ﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
M4-6H-4T A2J (Trivale
2
X592
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M258
FN610125960AA_02-1

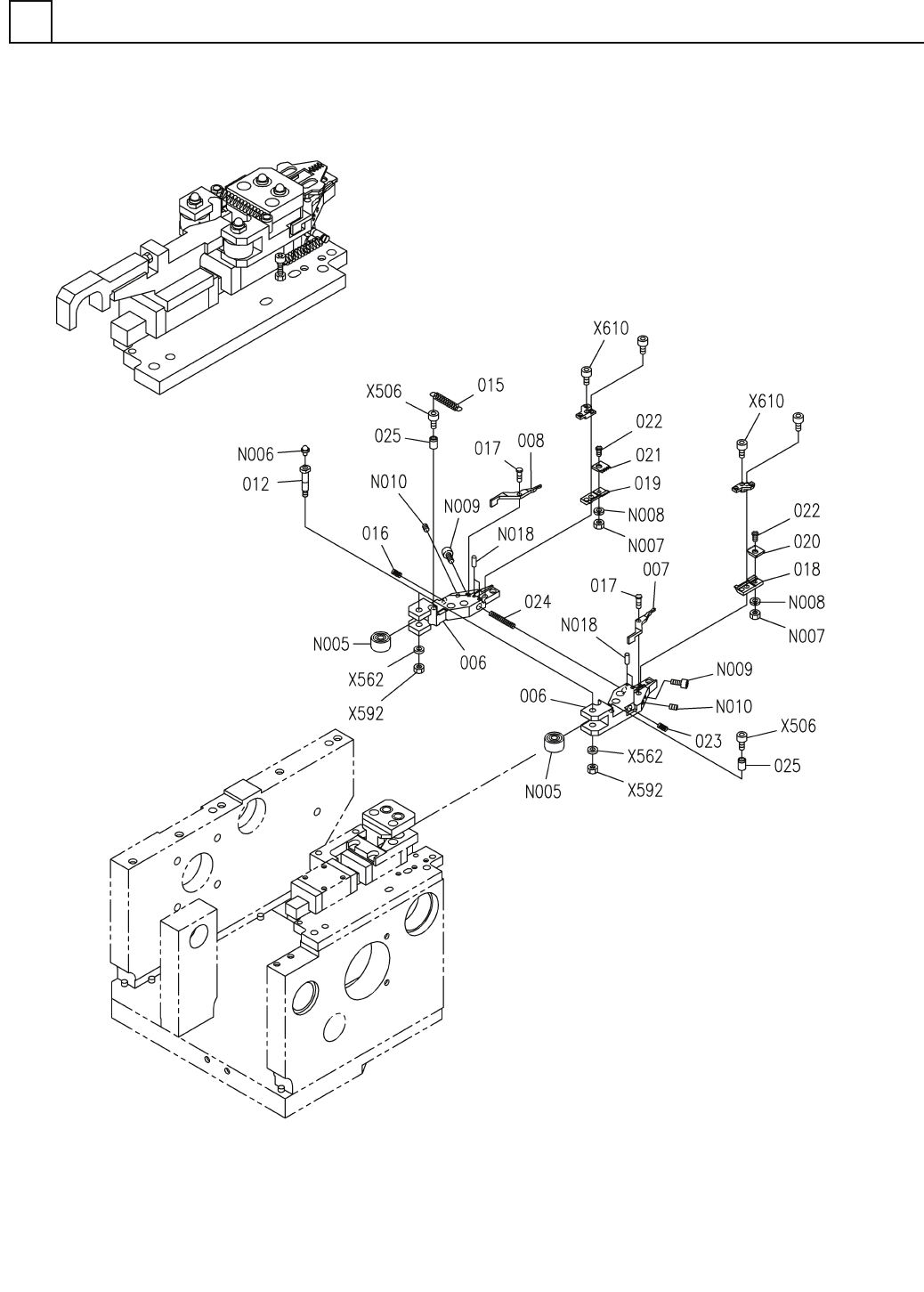

部品加工部(Vｶｯﾄ部(2P/3P)2)
PART PROCESS SECT. (V-CUT SECT.(2P/3P)-2)
20
FN610125960AA_02-2
M259
