PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 20 部品加工部 (ﾎﾞﾃﾞｨ 修正2)(ｵﾌﾟ ｼｮﾝ) PARTS PROCE SS SECT.( BODY AMEND-2 )(OPTION) 部 品 名 品 番 個数 備 考 R 1 R 2 1 002 X02G12103 PIN ｼﾃﾝﾋ ﾟﾝ 7 004 X01L12012 COLLAR ｶﾗｰ 1 005 N210…

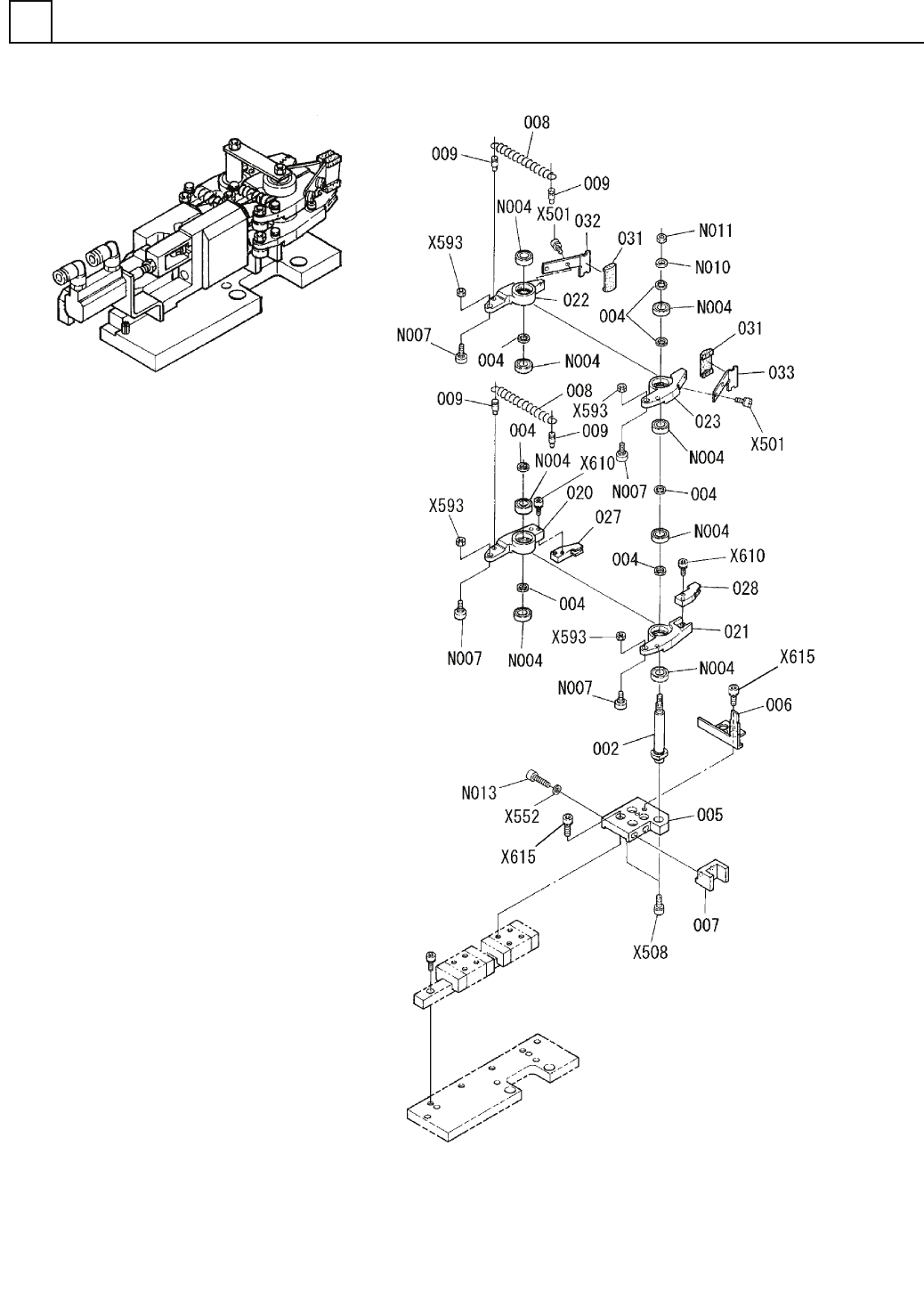

部品加工部(ﾎﾞﾃﾞｨ修正2)(ｵﾌﾟｼｮﾝ)
PARTS PROCESS SECT.(BODY AMEND-2)(OPTION)
20
FN610125686AA_01-2
M271
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(ﾎﾞﾃﾞｨ修正2)(ｵﾌﾟｼｮﾝ)
PARTS PROCESS SECT.(BODY AMEND-2)(OPTION)
部 品 名 品 番 個数
備 考
R
1
R
2
1002 X02G12103
PIN ｼﾃﾝﾋ
ﾟﾝ
7
004 X01L12012
COLLAR ｶﾗｰ
1
005 N210148376AA
PLATE ﾌﾟﾚｰﾄ
1006 N210148377AA
STOPPER ｽﾄｯﾊ
ﾟ
1007 X01L12020
FORK ﾌｫｰｸ
2
008 X01L1202101
SPRING ﾊﾞﾈ
4
009 X01L12022
PIN ﾋﾟﾝ(ﾊﾞﾈｶｹ)
1020 X01L1204101
LEVER ﾚﾊ
ﾞｰ
1021 X01L1204201
LEVER ﾚﾊ
ﾞｰ
1
022 X01L12043A
LEVER ﾚﾊﾞｰ
1023 X01L12043B
LEVER ﾚﾊﾞｰ
1027 N210097356AA
BLOCK ﾌ
ﾞﾛｯｸ
1
028 N210097357AA
BLOCK ﾌﾞﾛｯｸ
2
031 X01L1206001
RUBBER ｺﾞﾑ
1032 N210097365AA
GUIDE(PARTS) ｶﾞｲﾄﾞ(ﾊﾟｰﾂ)
1033 N210097366AA
GUIDE(PARTS) ｶﾞ
ｲﾄﾞ(ﾊﾟｰﾂ)
688ZZ
8
N004
KXF00MGAA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
CFS5
4
N007
N532CFS5
CAM FOLLOWER ｶﾑﾌｫﾛｱ
87FWSSB-D10.0-V6.0-T2
1
N010
N510038092AA
WASHER ﾜｯｼｬ
M6-6H-4T A2J (Trivale
1
N011
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X40-10.9 A2J (Triva
2
N013
N510017365AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X5-10.9 A2J (Trival
4
X501
N510017333AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X10-10.9 A2J (Triva
4
X610
N510017305AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X8-10.9 A2J (Trival
6
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X12-10.9 A2J (Triva
1
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5-6H-4T A2J (Trivale
4
X593
N510017862AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
4 10H A2J (Trivalent)
2
X552
N510018479AA
ROUND PLAIN WASHER ｺｶﾞ
ｶﾏﾙﾋﾗｻﾞｶﾞﾈ
M272
FN610125686AA_01-2
部品加工部(専用部)
PARTS PROCESS SECT.(EXCLUSIVE SECT.)
20
FN610133112AA_00
M273
