部品手册2N7203A389B03 - 第308页
部品ｶﾞｲﾄﾞ ﾏｳﾝﾄ部(左 右共通取付部) (80ｽﾃｰｼｮ ﾝ) PARTS GUIDE MOUNT SE CT.(L & R CO MMON ATTAC HMENT SECT.)(8 0 STATI ON) 21 FN610082519AA_00_A M277
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
21
部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通取付部)(40ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(L & R COMMON ATTACHMENT SECT.)(40 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610123559AA
PARTS GUIDE MOUNT UNIT ﾌﾞﾋﾝｶ
ﾞｲﾄﾞﾏｳﾝﾄﾕﾆｯﾄ
2
001 N210155301AA
BRACKET ﾌﾞﾗｹｯﾄ
2
002 N210148686AC
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
M6X16-10.9 A2J (Triva
6
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
6 10H A2J (Trivalent)
6
X564
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻ
ﾞｶﾞﾈ
M6X20-10.9 A2J (Triva
8
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6
8
X574
N510020101AA
WASHER ｻﾞｶﾞﾈ
M276
FN610123559AA_02

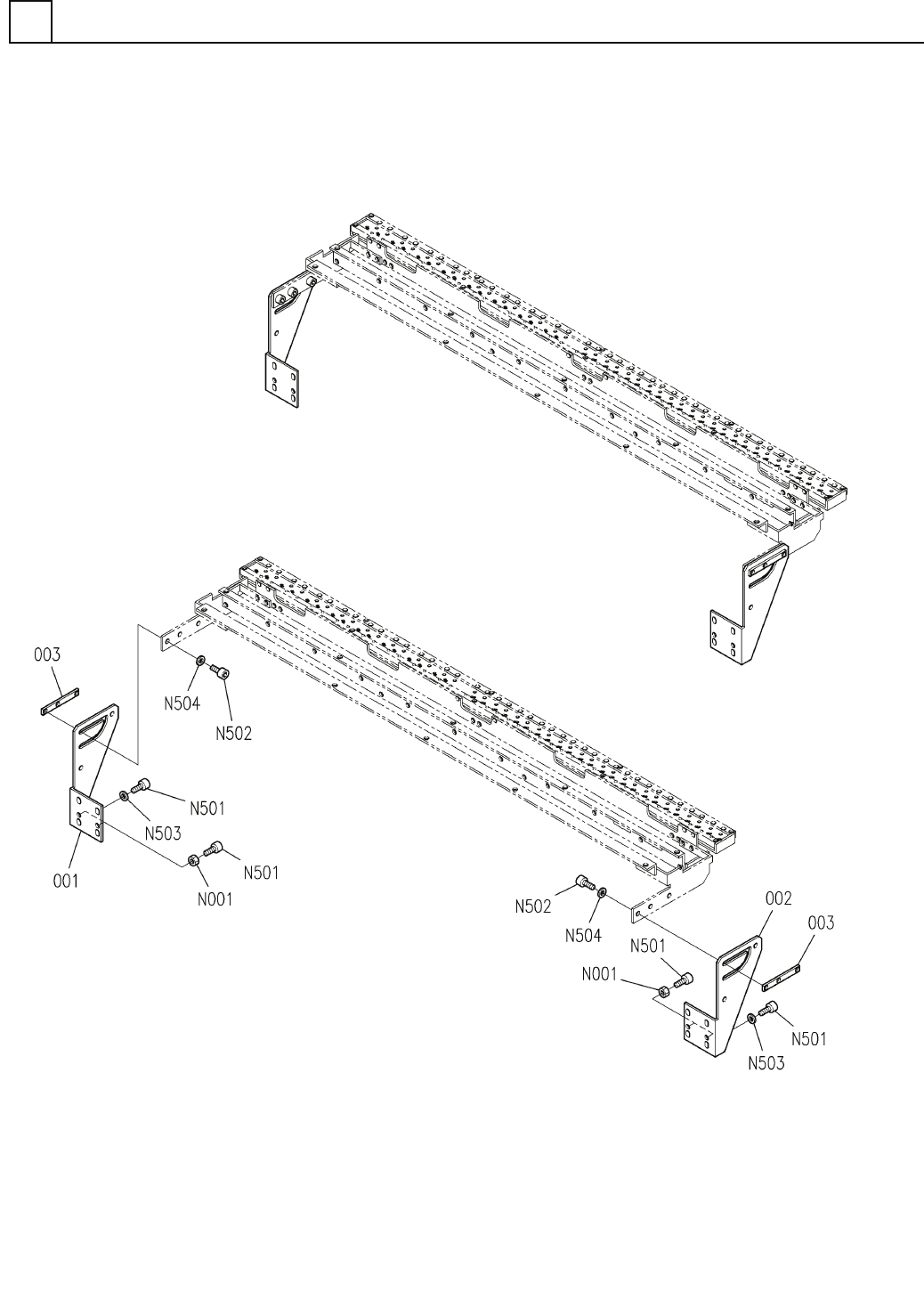

部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通取付部)(80ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(L & R COMMON ATTACHMENT SECT.)(80 STATION)
21
FN610082519AA_00_A
M277
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
21
部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通取付部)(80ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(L & R COMMON ATTACHMENT SECT.)(80 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610082519AA
PARTS GUIDE MOUNT UNIT ﾌﾞﾋﾝｶ
ﾞｲﾄﾞﾏｳﾝﾄﾕﾆｯﾄ
1
001 N210088870AB
BRACKET ﾌﾞﾗｹｯﾄ
1
002 N210088871AB
BRACKET ﾌﾞﾗｹｯﾄ
2003 N210088873AA
NUT PLATE ﾅｯﾄﾌ
ﾟﾚｰﾄ
M6-6H-4T A2J (Trivale
4
N001
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M6X20-10.9 A2J (Triva
12
N501
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X16-10.9 A2J (Triva
6
N502
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6
8
N503
N510020101AA
WASHER ｻ
ﾞｶﾞﾈ
6 10H A2J (Trivalent)
6
N504
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻ
ﾞｶﾞﾈ
M278
FN610082519AA_00_A
