部品手册2N7203A389B03 - 第34页
本体部(共通 部2) MAIN BODY S ECT.(COMM ON SECT.-2) 1 FN610129356AA_05-2 M3
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
本体部(共通部1)
MAIN BODY SECT.(COMMON SECT.-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610129356AA
COMMON UNIT ｷｮｳﾂｳﾕﾆｯﾄ
6
A001
1043889510AA
ADJUSTING BOLT ｱｼﾞｬｽﾄﾎﾞﾙﾄ
1
A002
N610130679AD
MAIN FRAME ﾒｲﾝﾌﾚｰﾑ
1004 N210156479AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1008 N210154581AB
BRACKET ﾌﾞﾗｹｯﾄ
1
014 N210156481AA
BRACKET ﾌﾞﾗｹｯﾄ
10X30,m6A,STEEL
4
N001
XPK10A30FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
SN0046
2
N002
N972SN0046
SPANNER ｽﾊ
ﾟﾅ
N510013515AA S
2
N004
N510013515AA
TERMINAL ﾀｰﾐﾅﾙ
M4X8, STEEL, P.C
16
N005
XYN4+J8FN
PAN HEAD M/C SCREW & W. ｻﾞｶﾞﾈｸﾐｺﾐﾅﾍﾞｺﾈｼﾞ
V-M32
1
N011
N348VM32
GROMMET ｸﾞﾛﾒｯﾄ
HB-1218
1
N014
N510028733AA
BOX ﾎ
ﾞｯｸｽ
M5X10-10.9 A2J (Triva
4
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trival
4
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Triva
4
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M2

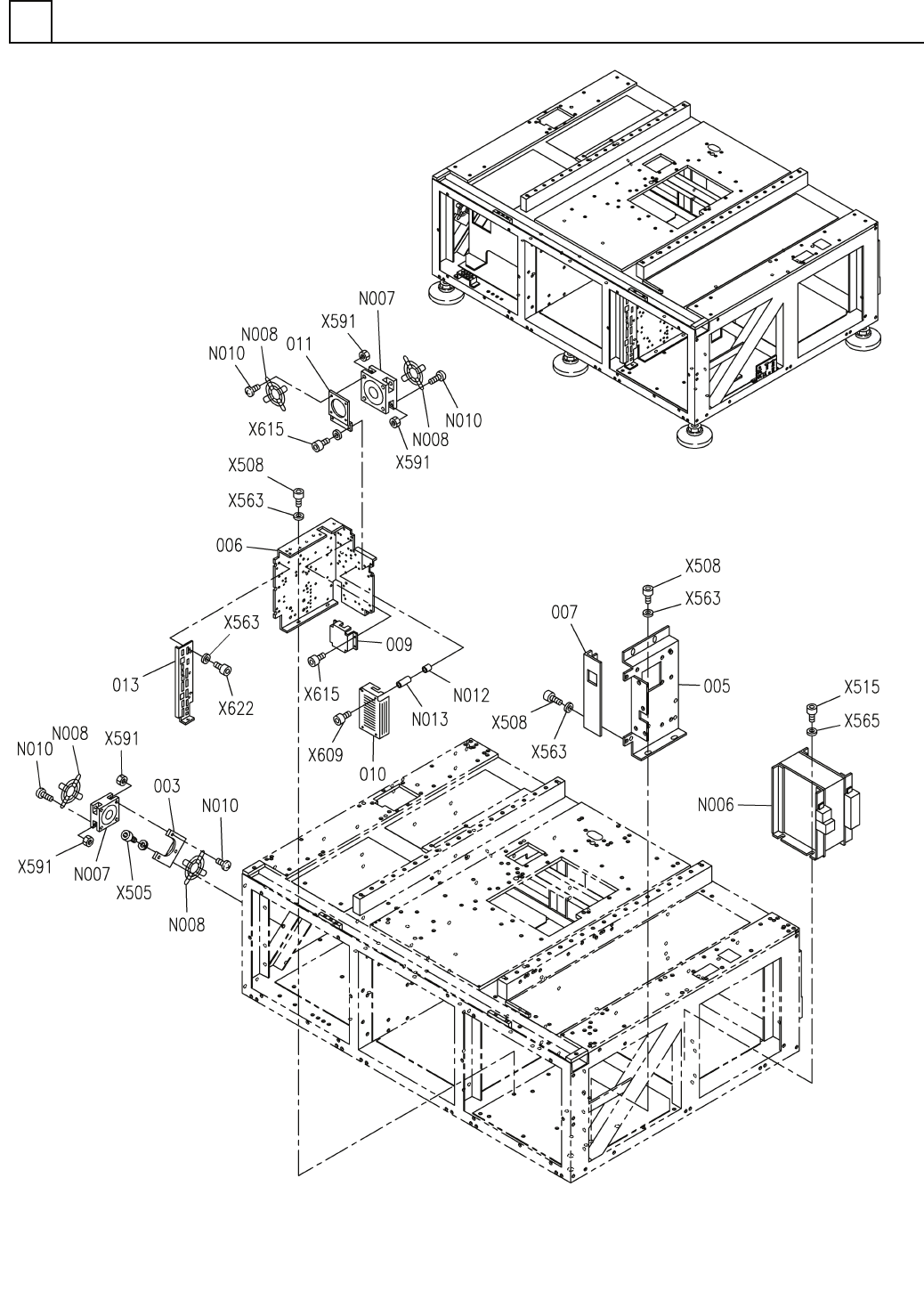

FN610129356AA_05-1
本体部(共通部2)
MAIN BODY SECT.(COMMON SECT.-2)
1
FN610129356AA_05-2
M3
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
本体部(共通部2)
MAIN BODY SECT.(COMMON SECT.-2)
部 品 名 品 番 個数
備 考
R
1
R
2
1003 1083501014
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
005 N210147730AD
PLATE ﾌﾟﾚｰﾄ
1
006 N210147731AC
PLATE ﾌﾟﾚｰﾄ
1007 N210147733AB
PLATE ﾌ
ﾟﾚｰﾄ
1009 N210085999AA
COVER ｶﾊ
ﾞｰ
1
010 N210086000AC
COVER ｶﾊﾞｰ
1
011 N210096518AA
BRACKET ﾌﾞﾗｹｯﾄ
1013 N210155369AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
TE3N-4.8K-GR/TD-16672 S
1
N006
N510050636AA
TRANSFORMER ﾄﾗﾝｽ
4715KL-05W-B29-P53
2
N007
N510035075AA
FAN WITH MOTOR ﾌｧﾝ
PG-47-02(8130)
4
N008
N238PG47-091
COVER(FAN) ｶﾊﾞｰ(ﾌｧﾝ)
M4X15-4.8 A2J (Trival
16
N010
N510018263AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
87BSSC3-10
12
N012
N510040930AA
POST ﾎﾟｽﾄ
87BSSC3-50
8
N013
N510039247AA
POST ﾎﾟｽﾄ
M4-6H-4T A2J (Trivale
16
X591
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
8 10H A2J (Trivalent)
4
X565
N510018482AA
ROUND PLAIN WASHER ｺｶﾞ
ﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
M5X10-10.9 A2J (Triva
3
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X6-10.9 A2J (Trival
4
X609
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
12
X563
N510018480AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
M5X12-10.9 A2J (Triva
9
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X8-10.9 A2J (Trival
5
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X16-10.9 A2J (Triva
4
X515
N510017470AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Triva
2
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4
FN610129356AA_05-2
