部品手册2N7203A389B03 - 第44页

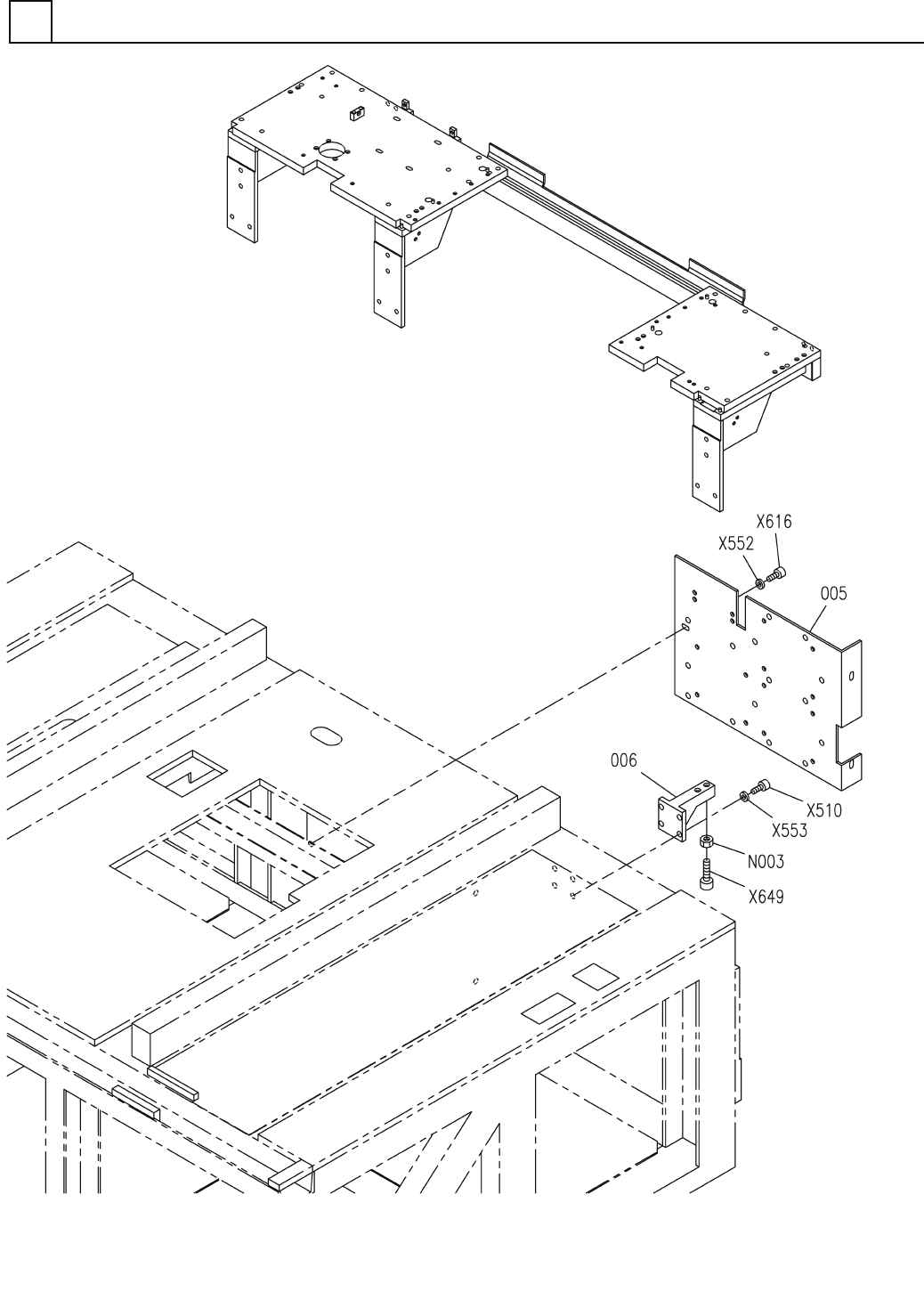

Z軸ﾌﾚｰﾑ部 (40ｽﾃ ｰｼｮﾝ2) Z-AXIS FRAM E SECT.(4 0 STATION-2) 2 FN610123554AB_01-2 M13
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
2
Z軸ﾌﾚｰﾑ部(40ｽﾃｰｼｮﾝ1)
Z-AXIS FRAME SECT.(40 STATION-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610123554AB
Z-AXIS FRAME UNIT Z ｼ
ﾞｸ ﾌﾚｰﾑﾕﾆｯﾄ
1
A001
N610123862AB
FRAME(SUPPORT) ﾌﾚｰﾑ(ｻﾎﾟｰﾄ)
3
001 N210146334AC
BASE ﾍﾞｰｽ
1002 N210153646AC
PLATE ﾌ
ﾟﾚｰﾄ
1003 N210153647AC
PLATE ﾌﾟﾚｰﾄ
1
004 N210155359AA
BLOCK ﾌﾞﾛｯｸ
2
007 N210155523AA
BRACKET ﾌﾞﾗｹｯﾄ
1008 N210156009AA
COVER ｶﾊ
ﾞｰ
M8X25-10.9 A2J (Triva
15
X517
N510017473AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M8X30-10.9 A2J (Triva
8
X518
N510017475AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
6
X553
N510018480AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
6 10H A2J (Trivalent)
18
X554
N510018481AA
ROUND PLAIN WASHER ｺｶﾞ
ﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
M5X10-10.9 A2J (Triva
6
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X40-10.9 A2J (Triva
6
X632
N510017442AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M10X25-10.9 A2J (Triv
12
X648
N510017166AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
6X12,h8B,STEEL
8
N001
XPJ6E12FW
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
M8-6H-4T A2J (Trivale
3
N002
N510017879AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M12
FN610123554AB_01-1
Z軸ﾌﾚｰﾑ部(40ｽﾃｰｼｮﾝ2)
Z-AXIS FRAME SECT.(40 STATION-2)
2
FN610123554AB_01-2
M13
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
2
Z軸ﾌﾚｰﾑ部(40ｽﾃｰｼｮﾝ2)
Z-AXIS FRAME SECT.(40 STATION-2)
部 品 名 品 番 個数
備 考
R
1
R
2
1005 N210145899AA
PLATE ﾌ
ﾟﾚｰﾄ
1
006 N210155120AA
BRACKET ﾌﾞﾗｹｯﾄ
M5X20-10.9 A2J (Triva
4
X510
N510017398AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
4 10H A2J (Trivalent)
3
X552
N510018479AA
ROUND PLAIN WASHER ｺｶ
ﾞｶﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
4
X553
N510018480AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻ
ﾞｶﾞﾈ
M4X12-10.9 A2J (Triva
3
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M10X35-10.9 A2J (Triv
2
X649
N510017169AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M10-6H-4T A2J (Trival
2
N003
N510017889AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M14
FN610123554AB_01-2
