PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 2 Z軸ﾌﾚ ｰﾑ部(80ｽﾃ ｰｼｮﾝ) Z-AXIS FRAME SECT.(8 0 STATION ) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610130658AA Z-AXIS FRAM E UNIT Z ｼ ﾞｸﾌﾚｰﾑﾕ ﾆｯﾄ 1 A001 N610131512AB FRAME ﾌﾚｰﾑ 1 A0…

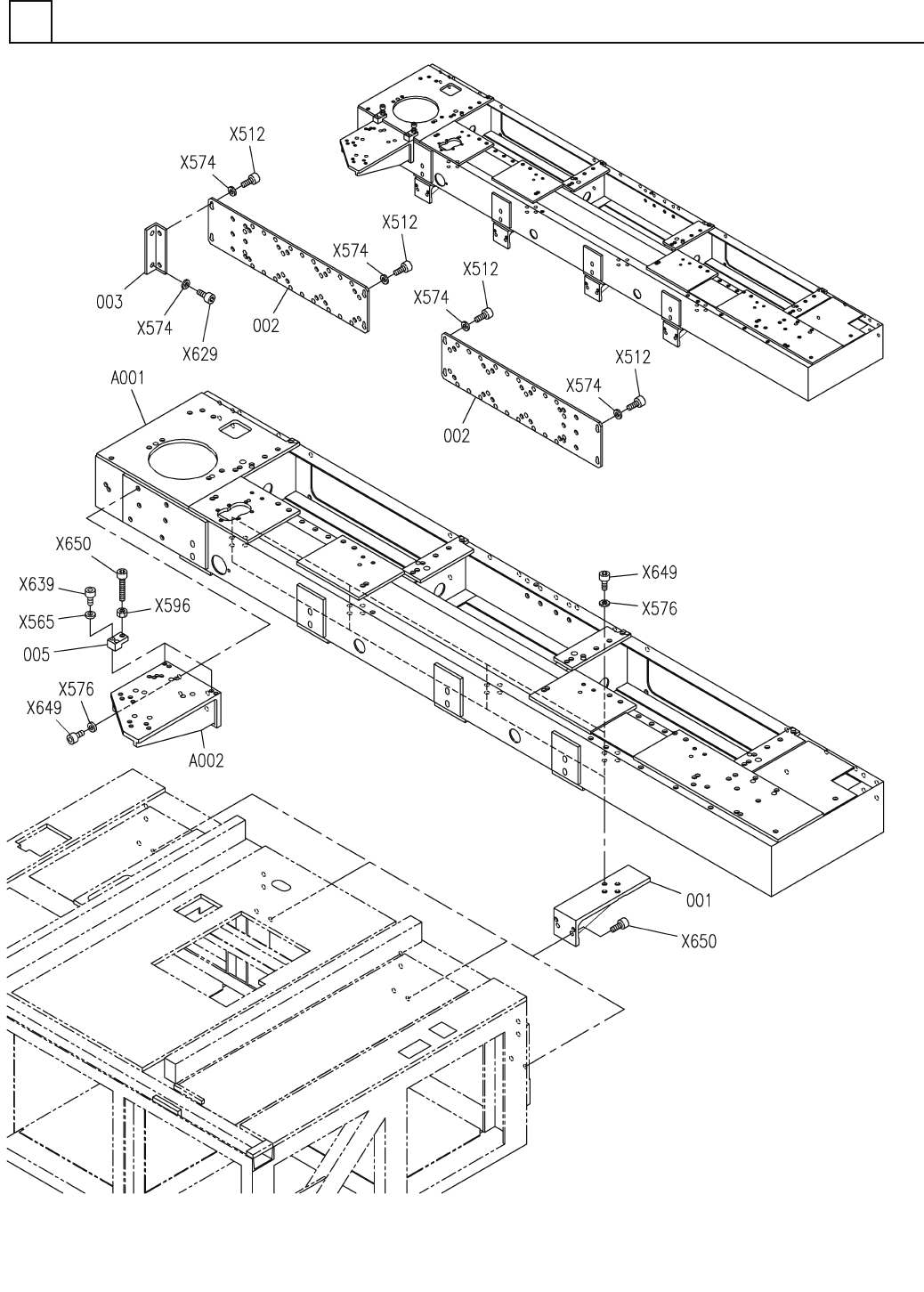

Z軸ﾌﾚｰﾑ部(80ｽﾃｰｼｮﾝ)
Z-AXIS FRAME SECT.(80 STATION)
2
FN610130658AA_04
M15
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
2
Z軸ﾌﾚｰﾑ部(80ｽﾃｰｼｮﾝ)
Z-AXIS FRAME SECT.(80 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610130658AA
Z-AXIS FRAME UNIT Z ｼ
ﾞｸﾌﾚｰﾑﾕﾆｯﾄ
1
A001
N610131512AB
FRAME ﾌﾚｰﾑ
1
A002
N610132681AA
BASE FRAME ﾍﾞｰｽﾌﾚｰﾑ
4001 N210150066AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
2002 N210091990AA
PLATE ﾌﾟﾚｰﾄ
1
003 N210090916AA
BRACKET ﾌﾞﾗｹｯﾄ
2
005 N210152172AA
BLOCK ﾌﾞﾛｯｸ
M6X12-10.9 A2J (Triva
2
X629
N510017428AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X16-10.9 A2J (Triva
8
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M8X40-10.9 A2J (Triva
4
X639
N510017478AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M10X35-10.9 A2J (Triv
12
X649
N510017169AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M10X45-10.9 A2J (Triv
10
X650
N510017171AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
8 10H A2J (Trivalent)
4
X565
N510018503AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M6
10
X574
N510020101AA
WASHER ｻﾞｶﾞﾈ
M10
12
X576
N510020103AA
WASHER ｻﾞｶﾞﾈ
M10-6H-4T A2J (Trival
2
X596
N510017887AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M16
FN610130658AA_04

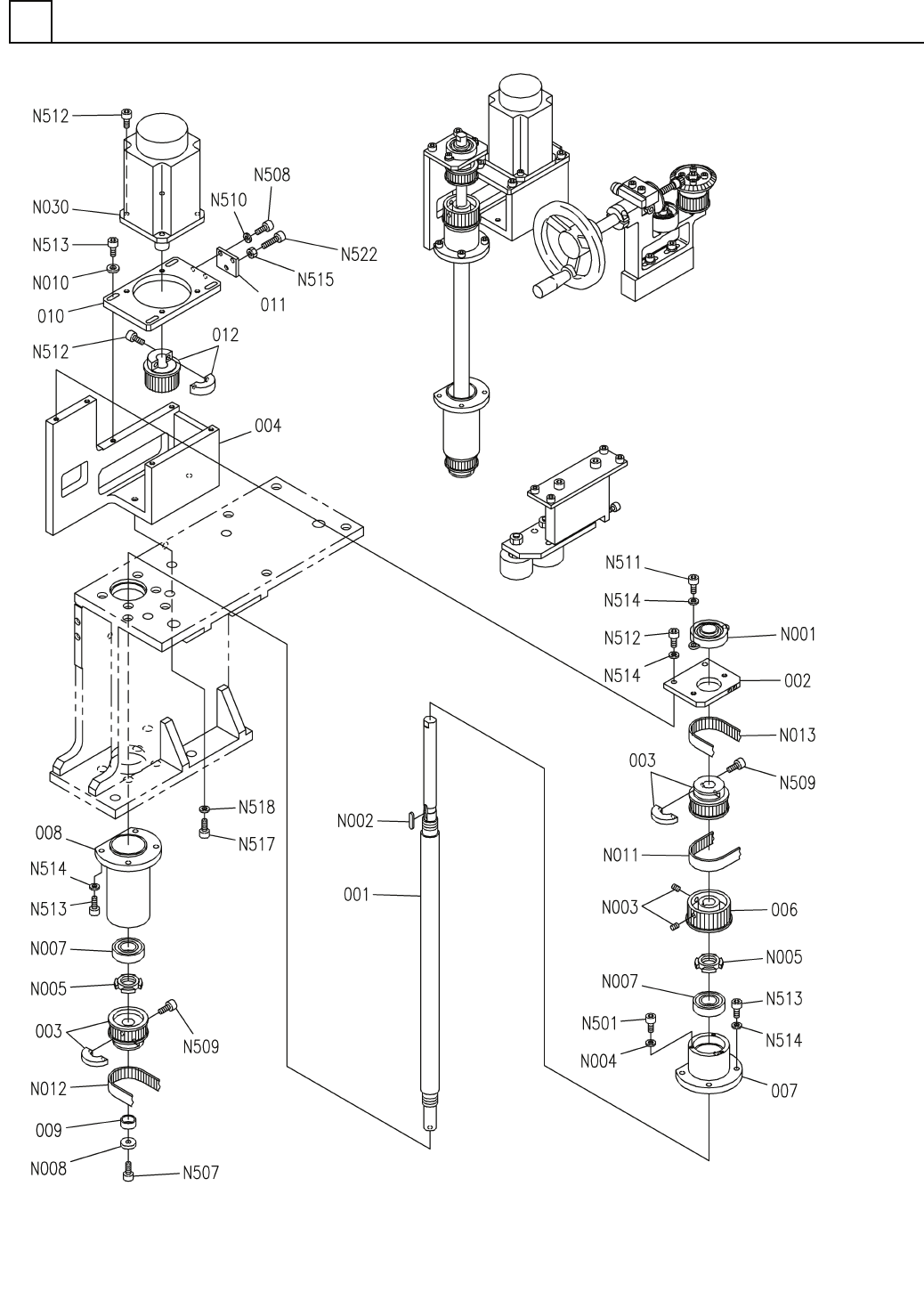

ﾒｲﾝ駆動部(1)
MAIN DRIVING SECT.(1)
3
FN610130987AA_01-1
M17
