部品手册2N7203A389B03 - 第560页

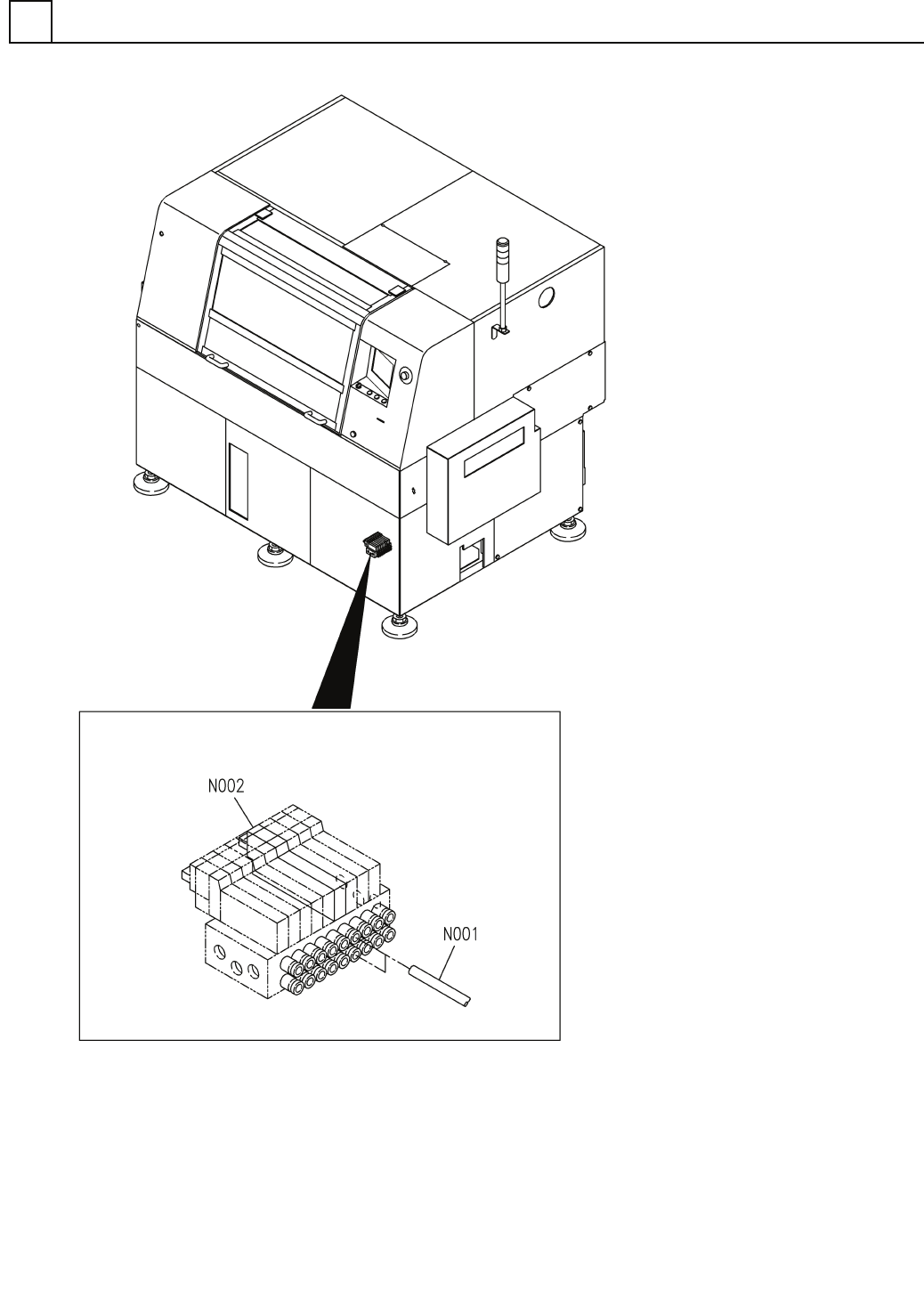

空圧制御部( ﾎﾞﾃﾞｨ修 正)(ｵﾌﾟｼｮﾝ) PNEUMATIC S YSTEM SEC T.(BODY AMEN D)(OPTION) 1 FN610131860AA_00 P19

100%1 / 566
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
　　　　　　　　　 PART NAME
　　　 REMARKS　
Q'TY
1
空圧制御部(RL 4P ｵﾌﾟｼｮﾝ部)
PNEUMATIC SYSTEM SECT.(FOR RL 4P OPTION SECT.)
部 品 名 品　 番 個数
備 考
R
1
R
2
1 N610116535AA
PNEUMATIC SYSTEM ｸｳｱﾂｾｲｷ
ﾞｮﾕﾆｯﾄ
1
001 N210137845AA
PLATE ﾌﾟﾚｰﾄ
KQ2U10-00
1
N001
KXF0E495A00
FITTING ﾂｷﾞﾃ
KQ2P-06
2
N005
KXF09ZBAA00
PLUG ﾌ
ﾟﾗｸﾞ
TU0604B-20
1
N008
KXF03U6AA00
TUBE ﾁｭｰﾌ
ﾞ
TU1065B-20
1
N009
KXF03V4AA00
TUBE ﾁｭｰﾌﾞ
NK-SI-11001
1
N010
N510060051AA
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
M4X30-10.9 A2J (Triva
2
X619
N510017361AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X35-10.9 A2J (Triva
2
X620
N510017364AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
KQ2L10-01S
1
V 1 KXF0E0YFA00
FITTING ﾂｷﾞﾃ
VV5QZ15-02C6C
1V 2 N510033370AA
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
VQZ1151B-5LO1-X555
2V 3 N510055093AA
SOLENOID VALVE ｿﾚﾉｲﾄ
ﾞﾊﾞﾙﾌﾞ
AN103-01
2
V 4 KXF00W9AA00
SILENCER ｻｲﾚﾝｻ
87MSWT1
3
V 5 N510023436AA
PLUG ﾌﾟﾗｸﾞ
P18
FN610116535AA_02
空圧制御部(ﾎﾞﾃﾞｨ修正)(ｵﾌﾟｼｮﾝ)
PNEUMATIC SYSTEM SECT.(BODY AMEND)(OPTION)
1
FN610131860AA_00
P19
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
　　　　　　　　　 PART NAME
　　　 REMARKS　
Q'TY
1
空圧制御部(ﾎﾞﾃﾞｨ修正)(ｵﾌﾟｼｮﾝ)
PNEUMATIC SYSTEM SECT.(BODY AMEND)(OPTION)
部 品 名 品　 番 個数
備 考
R
1
R
2
1 N610131860AA
PNEUMATIC UNIT ｸｳｱﾂﾕﾆｯﾄ
TU0604B-20
1
N001
KXF03U6AA00
TUBE ﾁｭｰﾌﾞ
VQZ1151B-5LO1-X555
1
N002
N510055093AA
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
P20
FN610131860AA_00
