PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 4 X-Yﾃｰﾌﾞﾙ 部(配線配 管部1) X-Y TABLE S ECT.(WIRI NG & PIPING SECT.-1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610055729AA WIRING & PIPI NG UNIT ﾊｲｾﾝ ･ﾊｲｶﾝﾕﾆｯﾄ 1 004 N21006967…

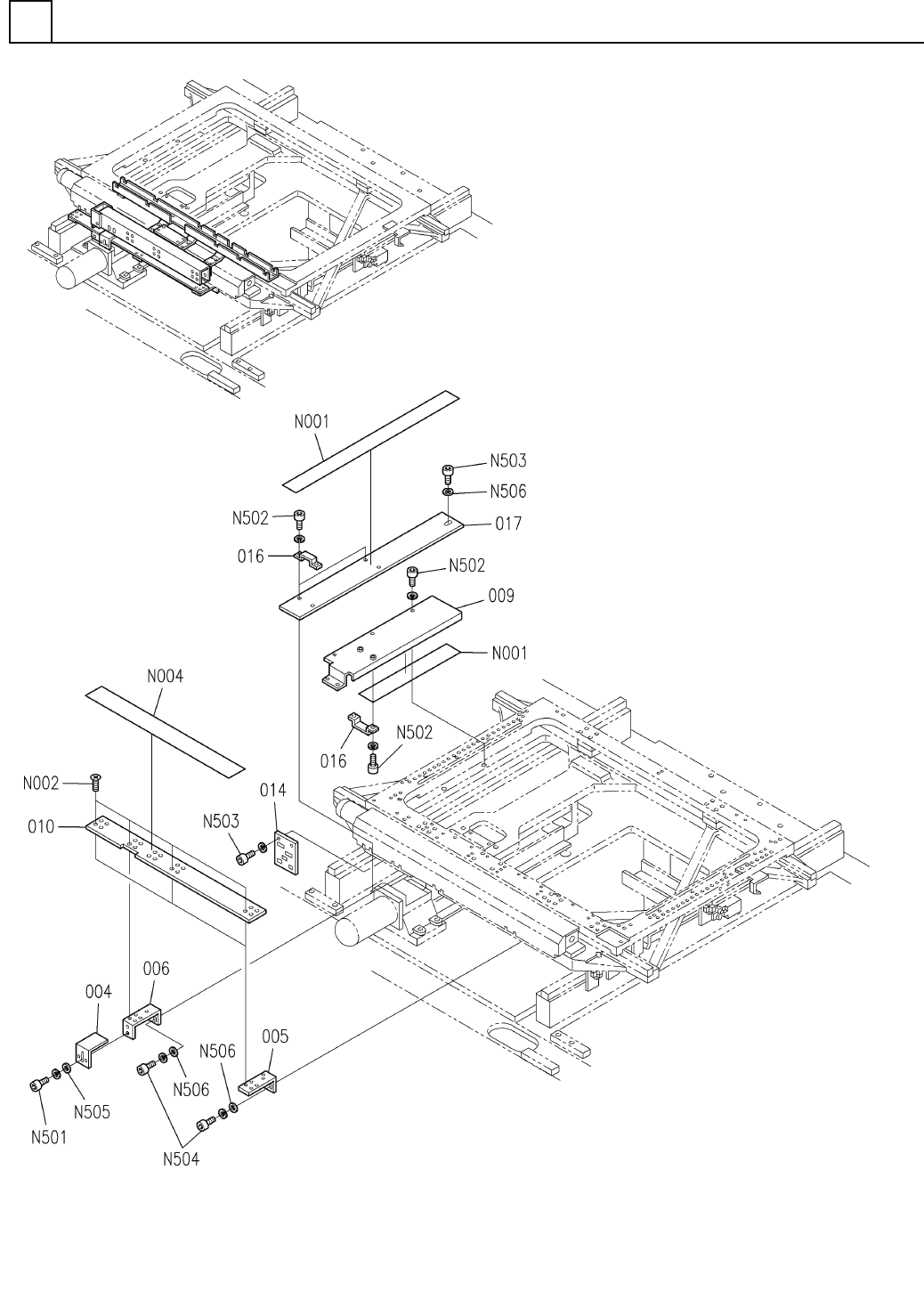

X-Yﾃｰﾌﾞﾙ部(配線配管部1)
X-Y TABLE SECT.(WIRING & PIPING SECT.-1)
4
FN610055729AA_07-1
M31
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
4
X-Yﾃｰﾌﾞﾙ部(配線配管部1)
X-Y TABLE SECT.(WIRING & PIPING SECT.-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610055729AA
WIRING & PIPING UNIT ﾊｲｾﾝ
･ﾊｲｶﾝﾕﾆｯﾄ
1
004 N210069675AB
BRACKET ﾌﾞﾗｹｯﾄ
3
005 N210133079AA
BRACKET ﾌﾞﾗｹｯﾄ
1006 N210133080AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1009 N210069680AB
PLATE ﾌﾟﾚｰﾄ
1
010 N210069681AB
PLATE ﾌﾟﾚｰﾄ
1
014 N210069848AA
CONNECTOR BRACKET ｺﾈｸﾀﾌﾞﾗｹｯﾄ
3016 104130415601
BRACKET ﾌ
ﾞﾗｹｯﾄ
1017 N210118837AA
PLATE ﾌﾟﾚｰﾄ
NO.903UL0.13X50
1
N001
N986N090-528
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌﾟ
M3X6-4.8 A2J (Trivale
16
N002
N510018158AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
NO.903UL0.13X30
1
N004
N986N090-523
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌ
ﾟ
M3X6-10.9 A2J (Trival
2
N501
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trival
9
N502
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Triva
3
N503
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-10.9 A2J (Triva
8
N504
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
3 10H A2J (Trivalent)
2
N505
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
9
N506
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M32
FN610055729AA_07-1

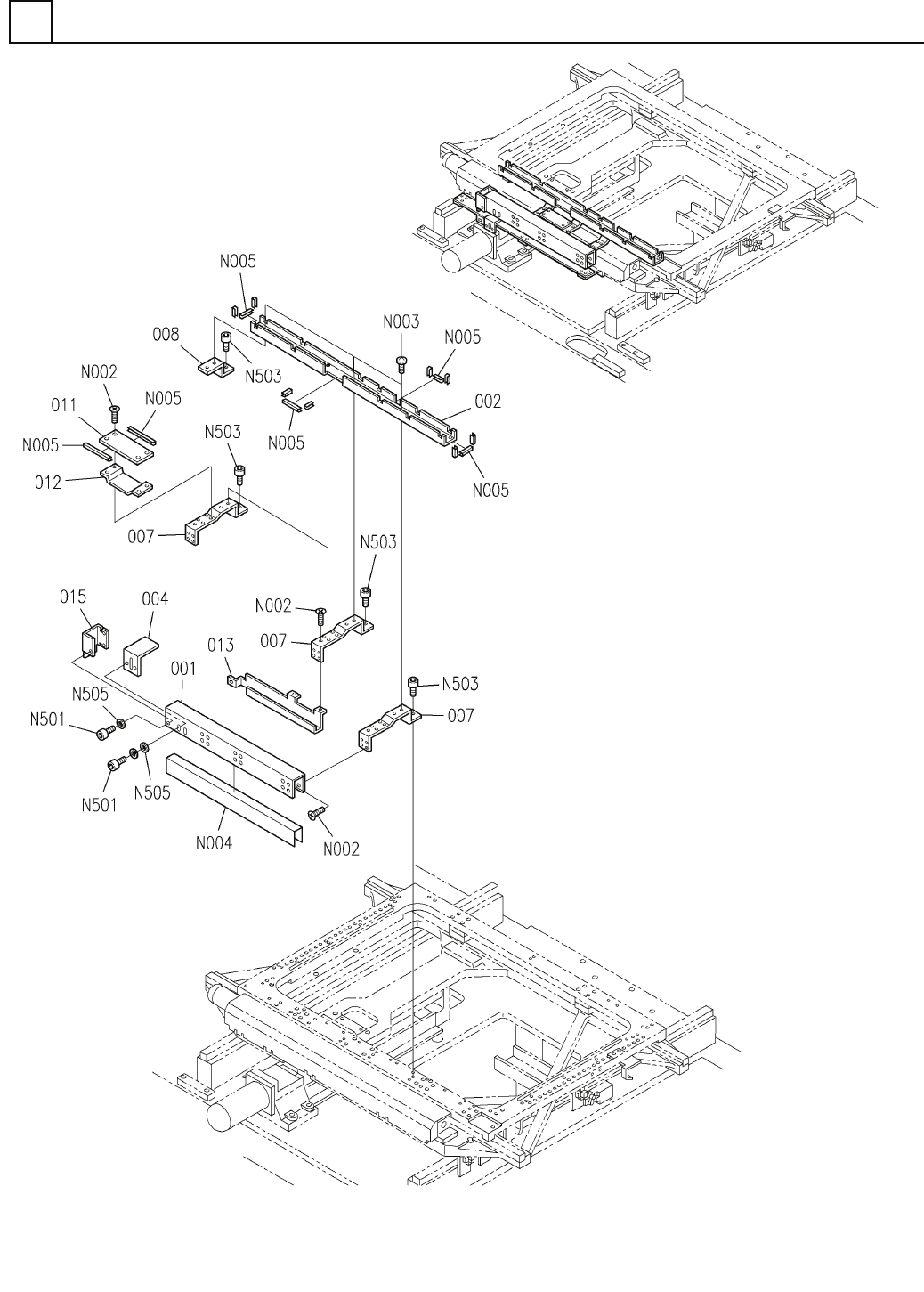

X-Yﾃｰﾌﾞﾙ部(配線配管部2)
X-Y TABLE SECT.(WIRING & PIPING SECT.-2)
4
FN610055729AA_07-2
M33
