部品手册2N7203A389B03 - 第66页
ﾛｰﾀﾞ･ｱﾝﾛｰﾀ ﾞ部(ﾛｰ ﾀﾞ部1) LOADER & UN LOADER SE CT.(LOADER S ECT.-1) 5 FN610128952AA_05-1 M35
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
4
X-Yﾃｰﾌﾞﾙ部(配線配管部2)
X-Y TABLE SECT.(WIRING & PIPING SECT.-2)
部 品 名 品 番 個数
備 考
R
1
R
2
1001 N210069670AC
GUIDE ｶ
ﾞｲﾄﾞ
1
002 N210069671AC
GUIDE ｶﾞｲﾄﾞ
1
004 N210069675AB
BRACKET ﾌﾞﾗｹｯﾄ
3007 N210135837AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1008 N210087140AA
BRACKET ﾌﾞﾗｹｯﾄ
1
011 N210135962AA
PLATE ﾌﾟﾚｰﾄ
1
012 N210135963AB
PLATE ﾌﾟﾚｰﾄ
1013 N210087360AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1015 N210069849AD
CONNECTOR BRACKET ｺﾈｸﾀﾌ
ﾞﾗｹｯﾄ
M3X6-4.8 A2J (Trivale
18
N002
N510018158AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M3X4-4.8 A2J (Trivale
8
N003
N510018249AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
NO.903UL0.13X30
1
N004
N986N090-523
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌ
ﾟ
EL-10
1
N005
N348EL10
BUSHING FOR WIRING ﾌﾞｯｼｭ
M3X6-10.9 A2J (Trival
5
N501
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Triva
8
N503
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
3
N505
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M34
FN610055729AA_07-2

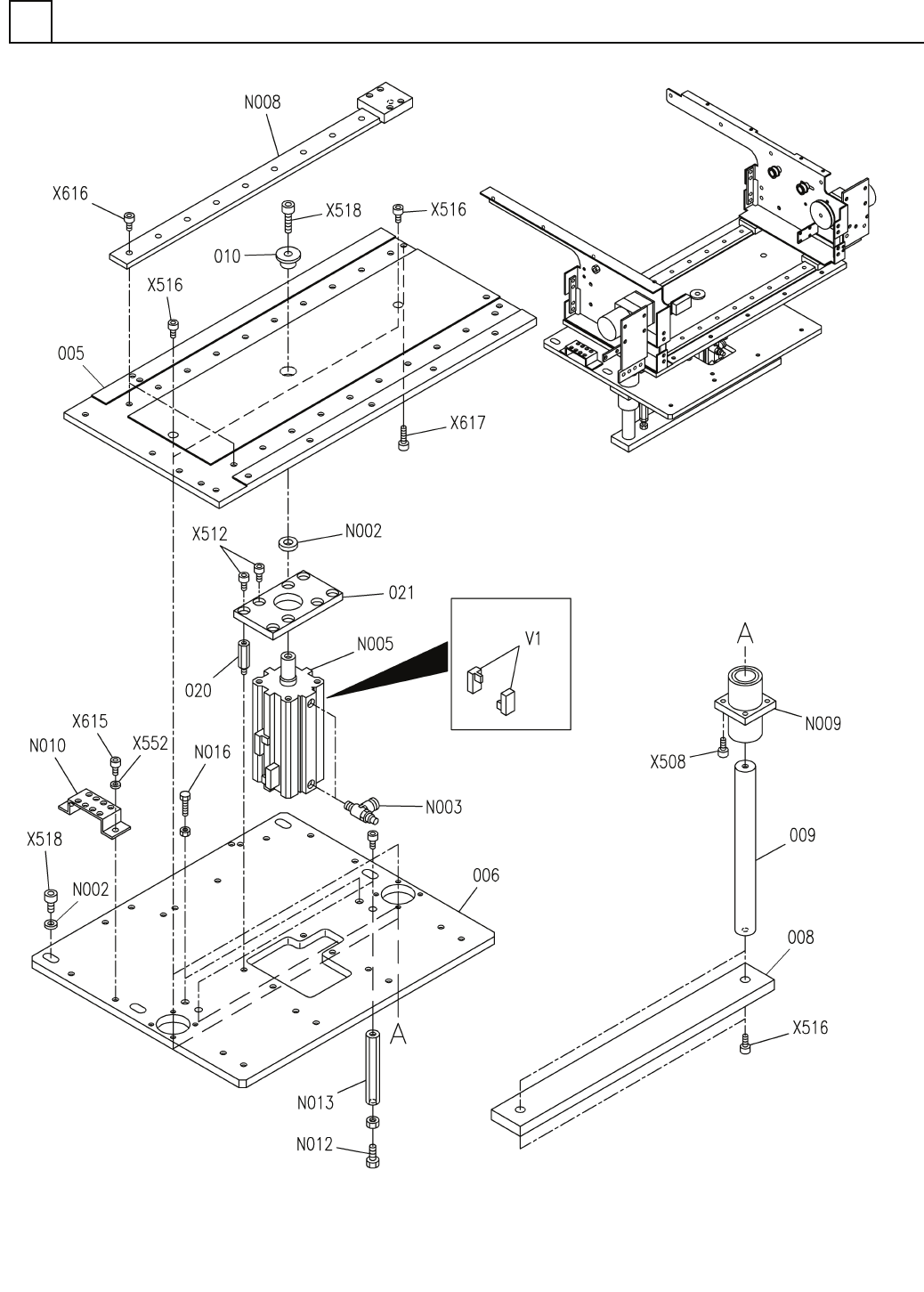

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞ部1)
LOADER & UNLOADER SECT.(LOADER SECT.-1)
5
FN610128952AA_05-1
M35
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
5
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞ部1)
LOADER & UNLOADER SECT.(LOADER SECT.-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610128952AA
LOADER UNIT ﾛｰﾀ
ﾞﾕﾆｯﾄ
1
005 N210149404AE
PLATE ﾌﾟﾚｰﾄ
1
006 N210153375AC
PLATE(BASE) ﾌﾟﾚｰﾄ(ﾍﾞｰｽ)
1008 N210149407AB
PLATE ﾌ
ﾟﾚｰﾄ
2009 N210149409AA
SHAFT ｼｬﾌﾄ
1
010 N210151020AA
STOPPER ｽﾄｯﾊﾟ
4
020 N210155077AA
SHAFT ｼｬﾌﾄ
1021 N210155076AA
PLATE ﾌ
ﾟﾚｰﾄ
Thick washer for M8
5
N002
N510020102AA
WASHER ｻﾞ
ｶﾞﾈ
AS2211F-01-06S
2
N003
KXF072PAA00
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
CDBQ2A40-50DC-RN-M9NV
1
N005
N510059464AA
CYLINDER ｼﾘﾝﾀﾞ
MR12WNSS1V0N-390L-15-
2
N008
N510058905AA
LINEAR WAY ﾘﾆｱｳｪｲ
SMKC20UU
2
N009
N510058906AA
BUSHING ﾌﾞｯｼｭ
N510013514AA S
1
N010
N510013514AA
TERMINAL ﾀｰﾐﾅﾙ
87UST8-30
2
N012
N510027184AA
BOLT ﾎﾞﾙﾄ
87PLSBRK13-80
2
N013
N510058908AA
POST ﾎ
ﾟｽﾄ
SUB-M8X45
2
N016
N510060327AA
BOLT ﾎﾞﾙﾄ
M5X12-10.9 A2J (Triva
8
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-10.9 A2J (Triva
20
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X20-10.9 A2J (Triva
4
X516
N510017472AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M8X30-10.9 A2J (Triva
5
X518
N510017475AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trival
2
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X20-10.9 A2J (Triva
1
X617
N510017354AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
4 10H A2J (Trivalent)
2
X552
N510018479AA
ROUND PLAIN WASHER ｺｶﾞ
ｶﾏﾙﾋﾗｻﾞｶﾞﾈ
M6X16-10.9 A2J (Triva
8
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
D-M9NV
2V 1 N510000684AA
SWITCH ｽｲｯﾁ
M36
FN610128952AA_05-1
