- - REF.NO NOTE P ART NO D E S C R I P T I O N Qt y 1 401 -69048 MPC-CAN 2 2 400 -73033 SWITC HING H UB 1 3 401 -88165 MPC_ BASE_F 1 4 401 -88166 MPC_ BASE_R 1 5 401 -75609 MPC_ BR 2 6 400 -01512 COVER STUD YF 2 7 HX -…
- -

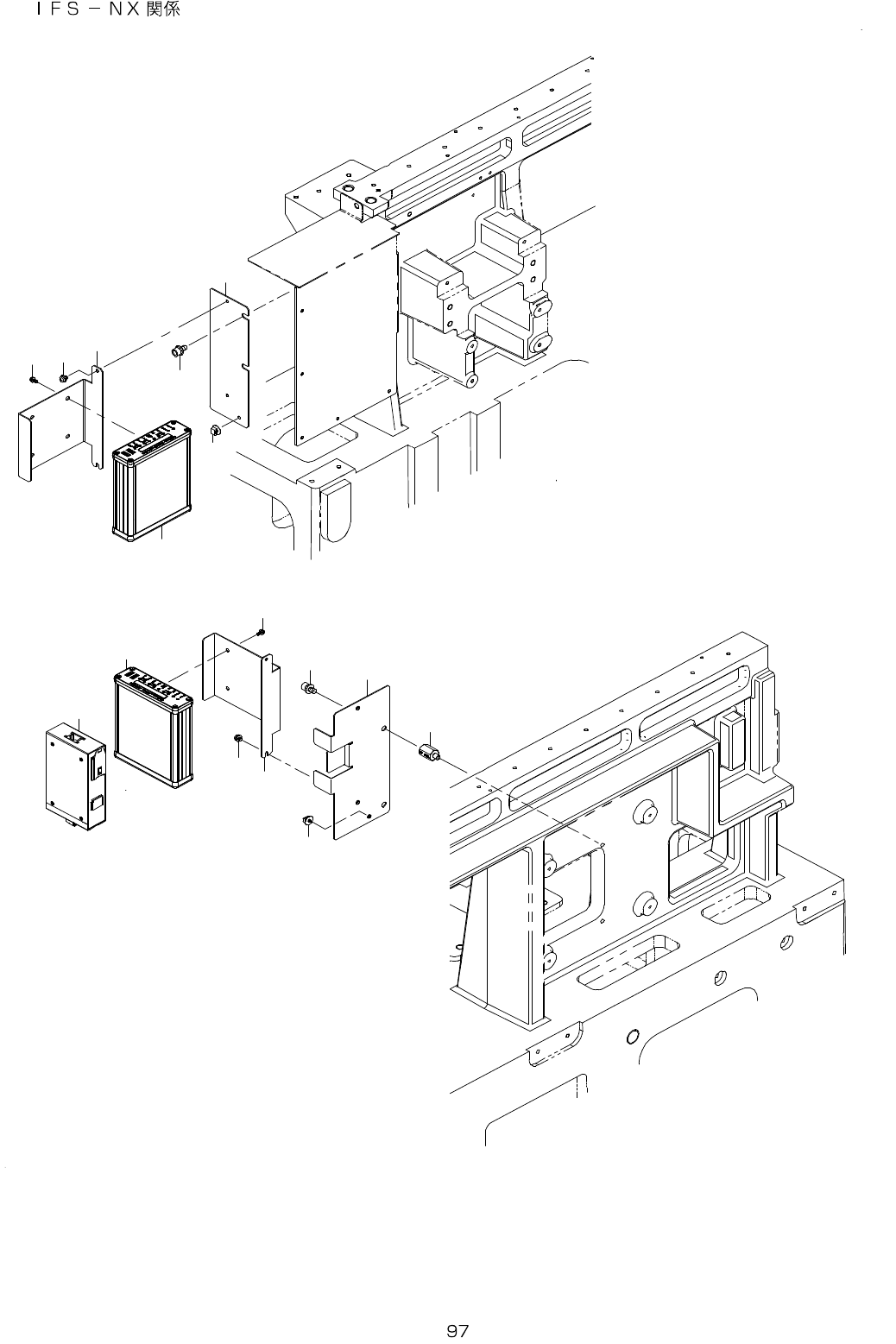

49. IFS-NX COMPONENTS
1
1
2
3
4
5
6
7
7
8
8
5
9
9
1 0
1 0
- -

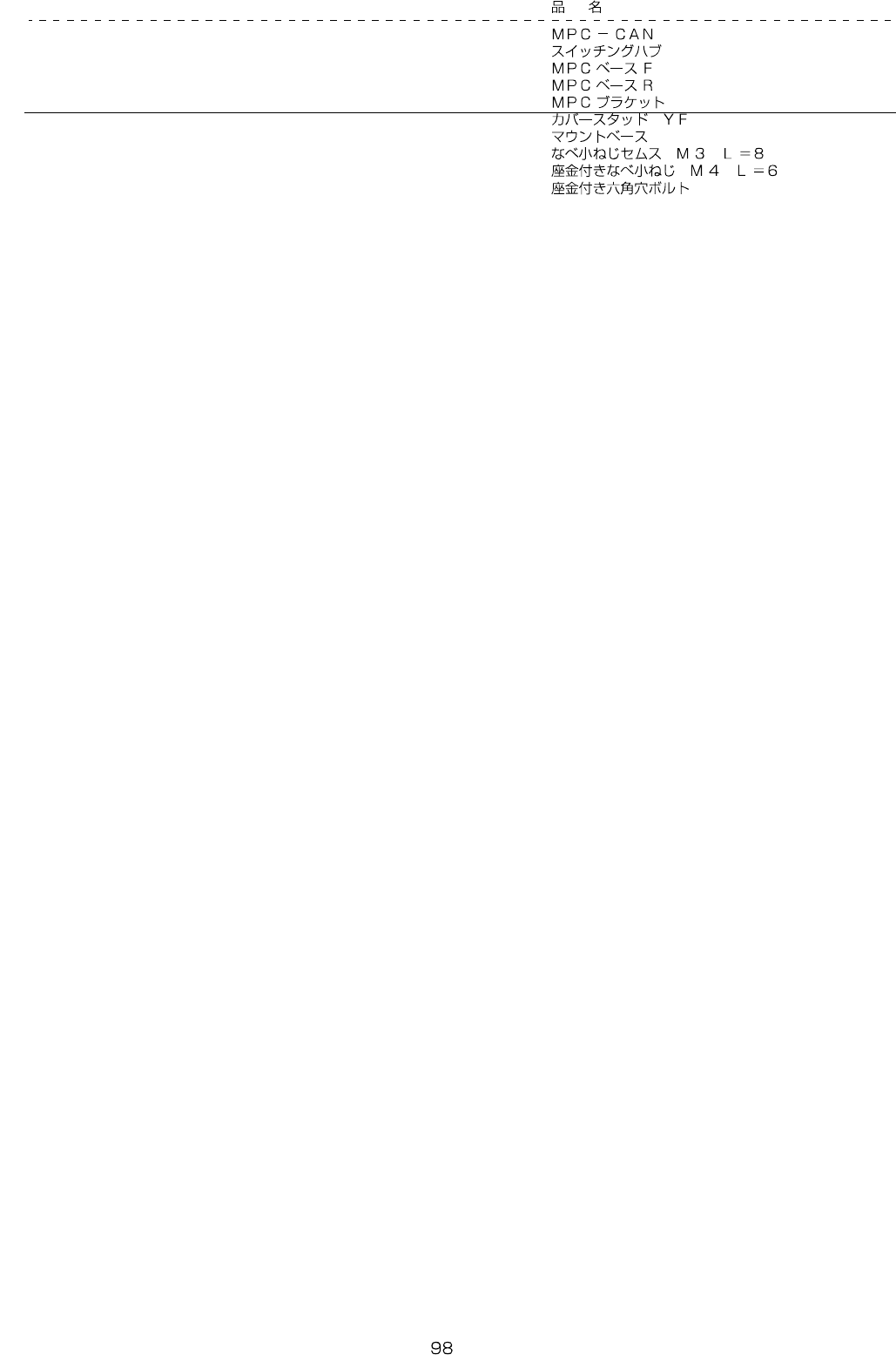

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-69048 MPC-CAN 2
2 400-73033 SWITCHING HUB 1
3 401-88165 MPC_BASE_F 1
4 401-88166 MPC_BASE_R 1
5 401-75609 MPC_BR 2
6 400-01512 COVER STUD YF 2
7 HX-0070600-00 MOUNT BASE 2
8 SL-4030891-SC SCREW M3X8 8
9 SL-4040691-SC SCREW M4 L=6 4
10 SL-6061292-TN SCREW 2
- -

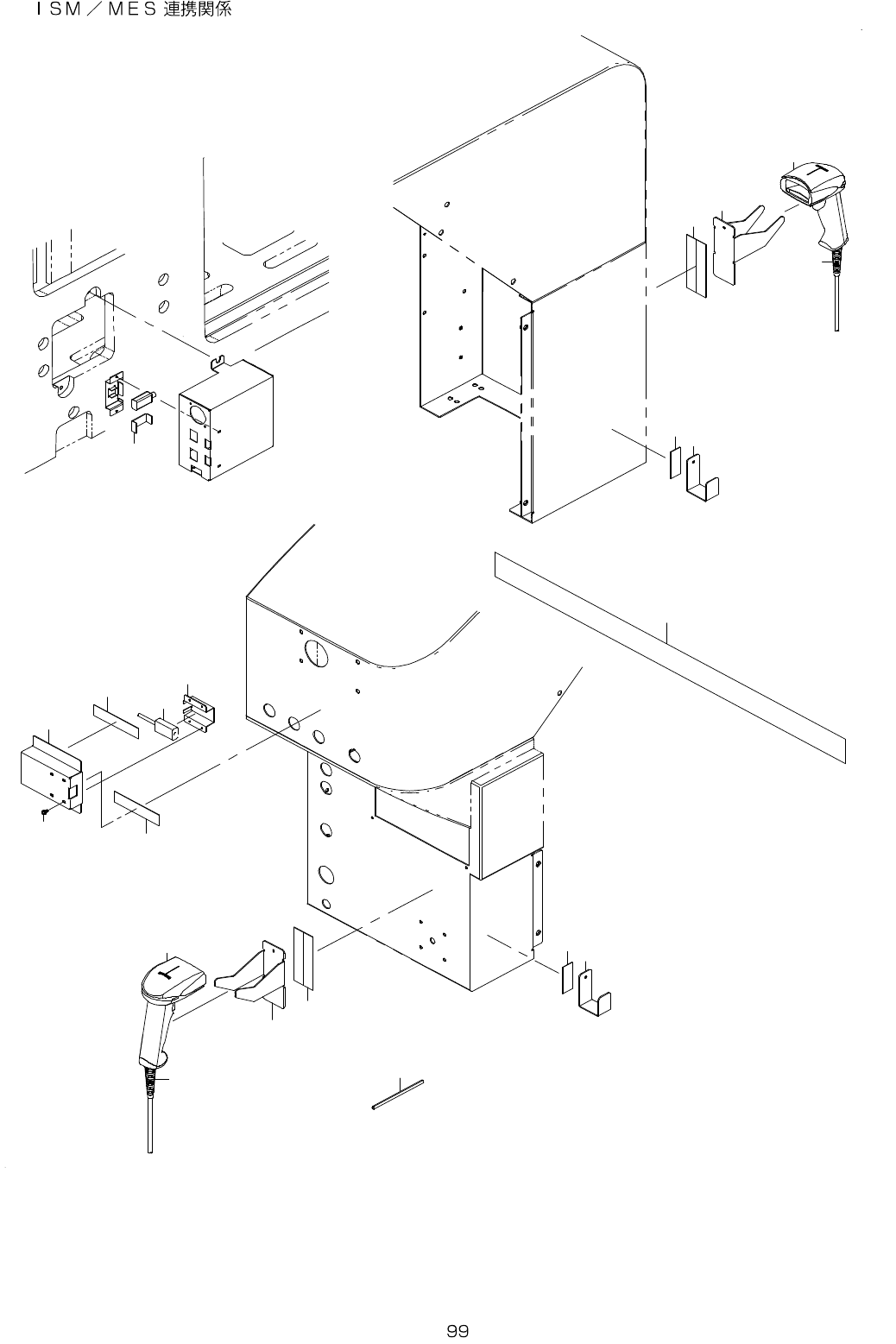

50. ISM/MES COOPERATION COMPONENTS
1
2
3
2
1
5
5
5
1 1
4
4
6
1 2
5
3
5
5
7
9
8
1 0
