- - REF.NO NOTE PA RT NO D E S C R I P T I O N Qty 1 401-83 523 C OVER_CUL_ASM 1 2 401-83 441 C OVER_CUL (1) 3 SL-306 1232-TN SCRE W M6 L=12 (5) 4 401-36 850 MOTO R_COVER _R (1) 5 400-81 751 B_COV ER_SCREW (4) 6 401-83…
- -

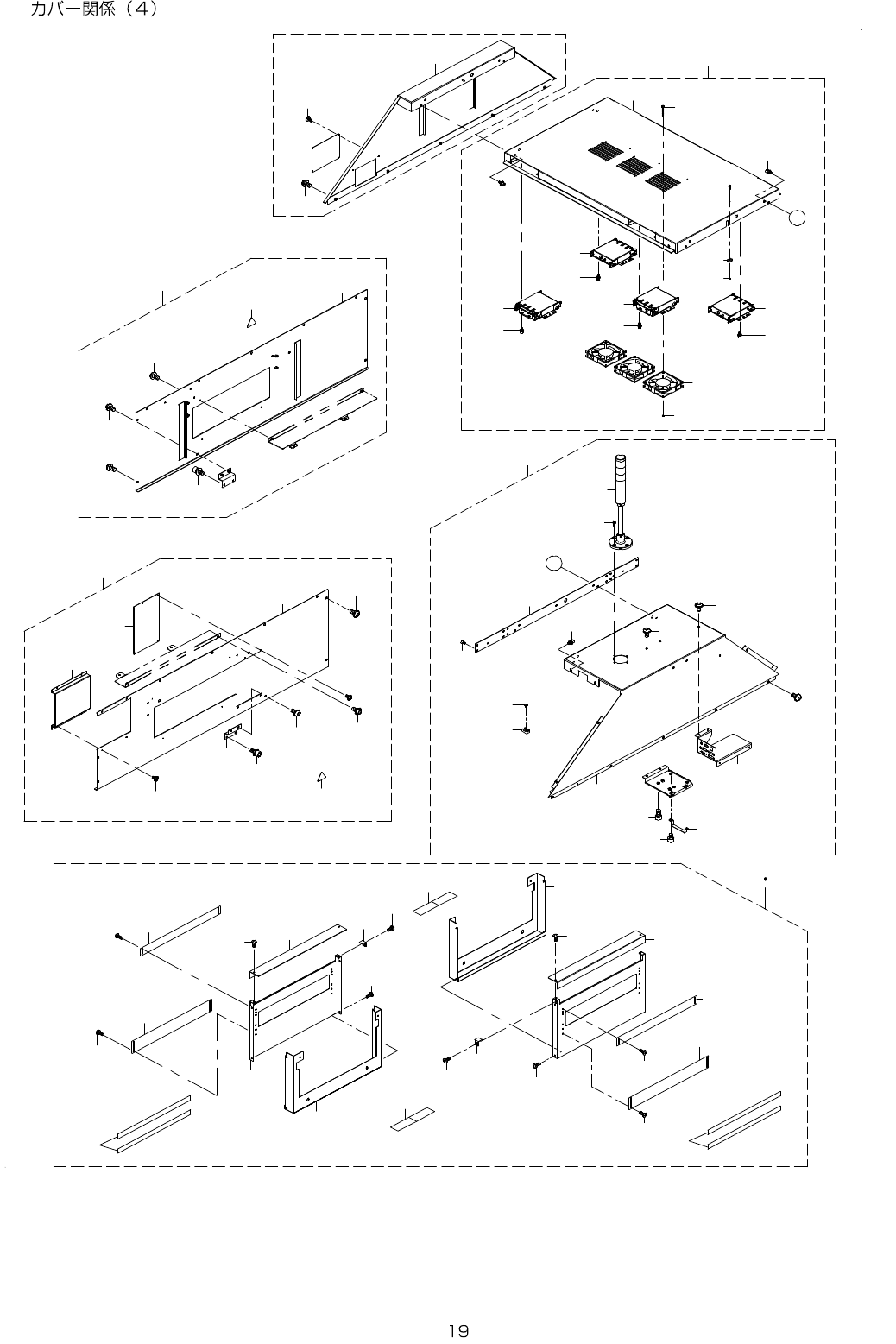

10. COVER COMPONENTS (4)
1 8
1 7
1 6
4 2
A
3 6
1 1
3 5
3 2
5
4
4 0
4 3
4 5
4 5
4 4
3 8
1 9
2 0
2
3
7
8
9
2 5
1 1
1 1
1 2
1 3
1 4
1 5
2 3
3 0
2 2
2 42 4
2 4
1 0
2 5
A
2 6
2 6
2 6
2 4
2 6
2 7
2 8
2 9
2 2
2 1
3 3
3 4
3 4
3 4
3 9
4 0
4 0
4 1
1
3 1
3 7
6
5 6
5 6
5 5
5 5
5 4
5 1
5 4
4 9
5 4
5 4
5 3
4 8
4 9
5 0
5 4
5 2
5 3
5 4
5 4
5 4
4 8
5 0
5 4
5 1
4 6 4 7
5 2
5 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-83523 COVER_CUL_ASM 1
2 401-83441 COVER_CUL (1)
3 SL-3061232-TN SCREW M6 L=12 (5)
4 401-36850 MOTOR_COVER_R (1)
5 400-81751 B_COVER_SCREW (4)
6 401-83524 COVER_CUR_ASM 1
7 401-83384 COVER_CUR (1)
8 401-83382 COVER_STAY_CUR (1)
9 SM-1051052-TN PLATE SCREW M5 L=10 (8)
10 SL-6061292-TN SCREW M6 L=12 (4)
11 SL-3061232-TN SCREW M6 L=12 (12)
12 401-83469 CONNECTOR_BR (1)
13 HX-0029400-00 FIXED BASE (2)
14 SM-4040601-SC SCREW M4X0.7 L=6 (2)
15 401-89268 CB_BRACKET_RS (1)
16 SM-6061202-TN SCREW (4)
17 401-10219 FC_SUPPORT_Y_V2 (1)
18 SM-6060802-TN SCREW (2)
19 401-29009 SIGNAL TOWER CABLE ASM (1)
20 SL-6041292-TN SCREW M4 L=12 (4)
21 401-83525 COVER_CUC_ASM 1
22 NM-3034000-SF FLANGE NUT (10)
23 401-83442 COVER_CUC (1)
24 401-83447 ASSIST_HINGE (4)
25 SL-6061292-TN SCREW M6 L=12 (8)
26 SL-6051292-TN SCREW M5 L=12 (24)
27 401-89090 DC FAN ASM (3)
28 SL-4033591-SC SCREW M3 L=35 (6)
29 SL-4031091-SC SCREW M3 L=10 (4)
30 HX-0051900-00 FIXING BASE (4)
31 401-83528 COVER_SUL_ASM 1
32 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
33 401-83439 COVER_SUL (1)
34 SL-3061232-TN SCREW M6 L=12 (7)
35 401-47149 COVER_BR_B (1)
36 SL-6061292-TN SCREW M6 L=12 (2)
37 401-83529 COVER_SUR_ASM 1
38 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
39 401-83440 COVER_SUR (1)
40 SL-3061232-TN SCREW M6 L=12 (7)
41 401-47149 COVER_BR_B (1)
42 SL-6061292-TN SCREW M6 L=12 (2)
43 401-47150 MTC_SHUTTLE_COVER (1)
44 401-47151 COVER_SUR_F_MOTOR_BR (1)
45 400-81751 B_COVER_SCREW (8)
46
#01
401-87790 CONVEYOR_COVER_L_ASM 1
47
#02
401-87791 CONVEYOR_COVER_R_ASM 1
48 401-47167 CONVEYOR_COVER_L (2)
49 401-47168 CONVEYOR_SIDE_COVER_L (2)
50 401-47169 CONVEYOR_UPPER_COVER_L (2)
51 401-47170 CONVEYOR_COVER_STOPPER (2)
52 400-01484 CONVEYOR SHUTTER U(LEN) (2)
53 400-01485 CONVEYOR SHUTTER B(LEN) (2)
54 SM-0040601-SC SCREW M4X0.7 L=6 (38)
55 400-01490 TAPE (3)
56 E1143-721-000 WOOLEN CLOTH PAPER (4)
- -
11. COVER COMPONENTS (5)
4 1
4
4 4
4 5
4 5
4 2
4 6
4 7
4 3
4 9
4 8
1 2
1 1
1 0
9
8
7
4
2
2 9
2 9
2 8
2 5
2 5
2 4
2 0
1 7
1 7
1 6
1 5
1 5
1 3
3
1 2
1 4
1 4
A
A
1 8
1 9
2 1
2 1
2 3
2 2
2 6
2 7
3 1
3 0
3 6
3 8
3 7
4 0
3 9
3 8
3 9
3 9
3
3 3
3 2
3 4
6
5
6
5
3 5
5 2
5 1
B
B
C
C
5 2
5 1
5 4
5 3
5 5
5 7
5 6
5 8
5 9
6 0
6 0
6 0
6 0
6 1
6 1
6 1
6 1
6 2
6 2
6 3
6 3
6 4
6 4
6 5
6 5
6 6
6 6
6 6
6 6
6 6
6 6
6 6
6 6
6 6
6 6
6 6
6 7
6 7
6 7
6 7
6 7
6 7
1
5 0
6 6
