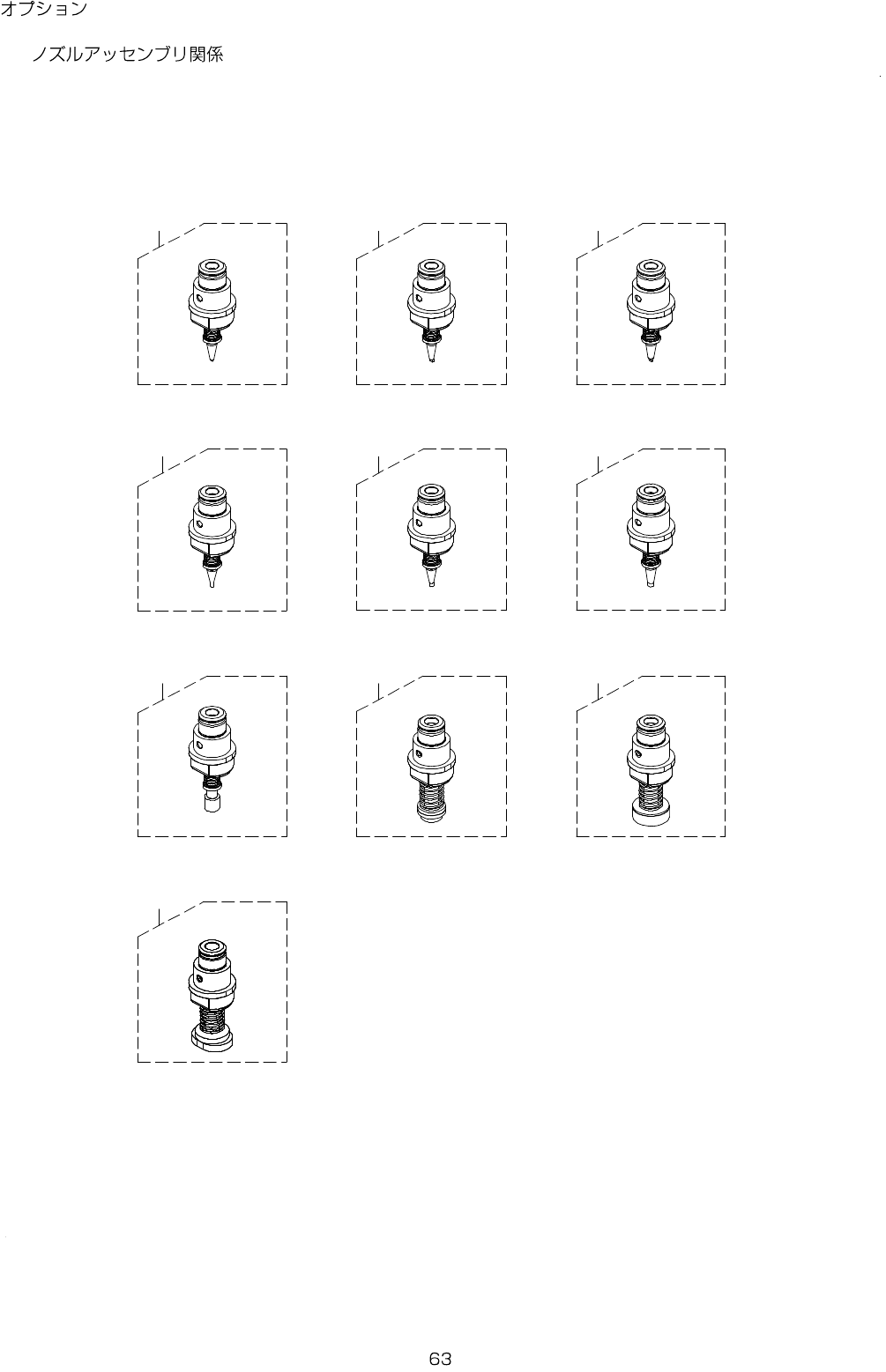

32. NOZZLE ASSEMBLY COMPONENTS
65
7
1 0
98
21
4
3
- -

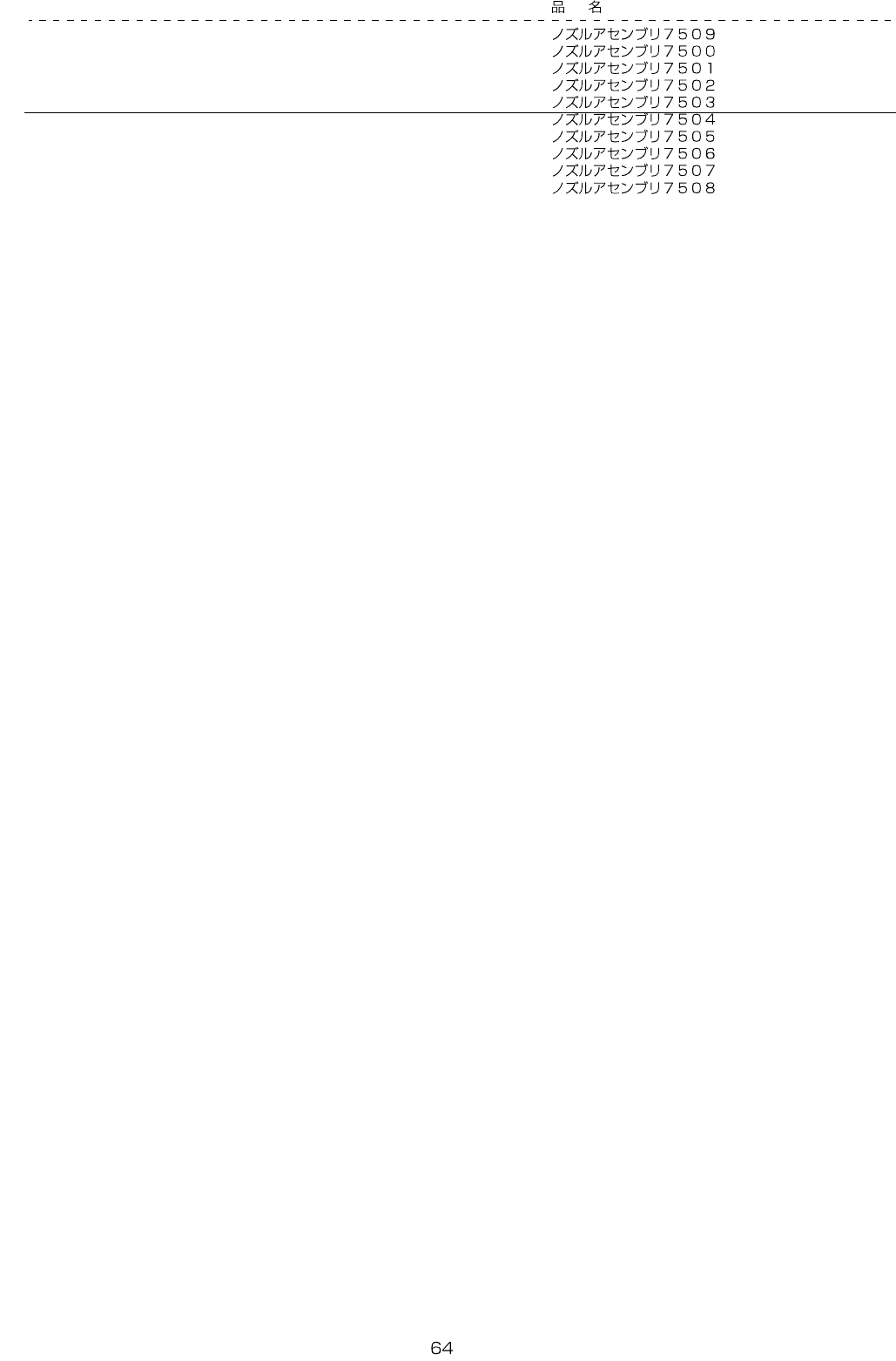

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-83419 NOZZLE_ASSEMBLY_7509 1
2 401-83420 NOZZLE_ASSEMBLY_7500 1
3 401-83421 NOZZLE_ASSEMBLY_7501 1
4 401-83422 NOZZLE_ASSEMBLY_7502 1
5 401-83423 NOZZLE_ASSEMBLY_7503 1
6 401-83424 NOZZLE_ASSEMBLY_7504 1
7 401-83425 NOZZLE_ASSEMBLY_7505 1
8 401-83426 NOZZLE_ASSEMBLY_7506 1
9 401-83427 NOZZLE_ASSEMBLY_7507 1
10 401-83428 NOZZLE_ASSEMBLY_7508 1
- -

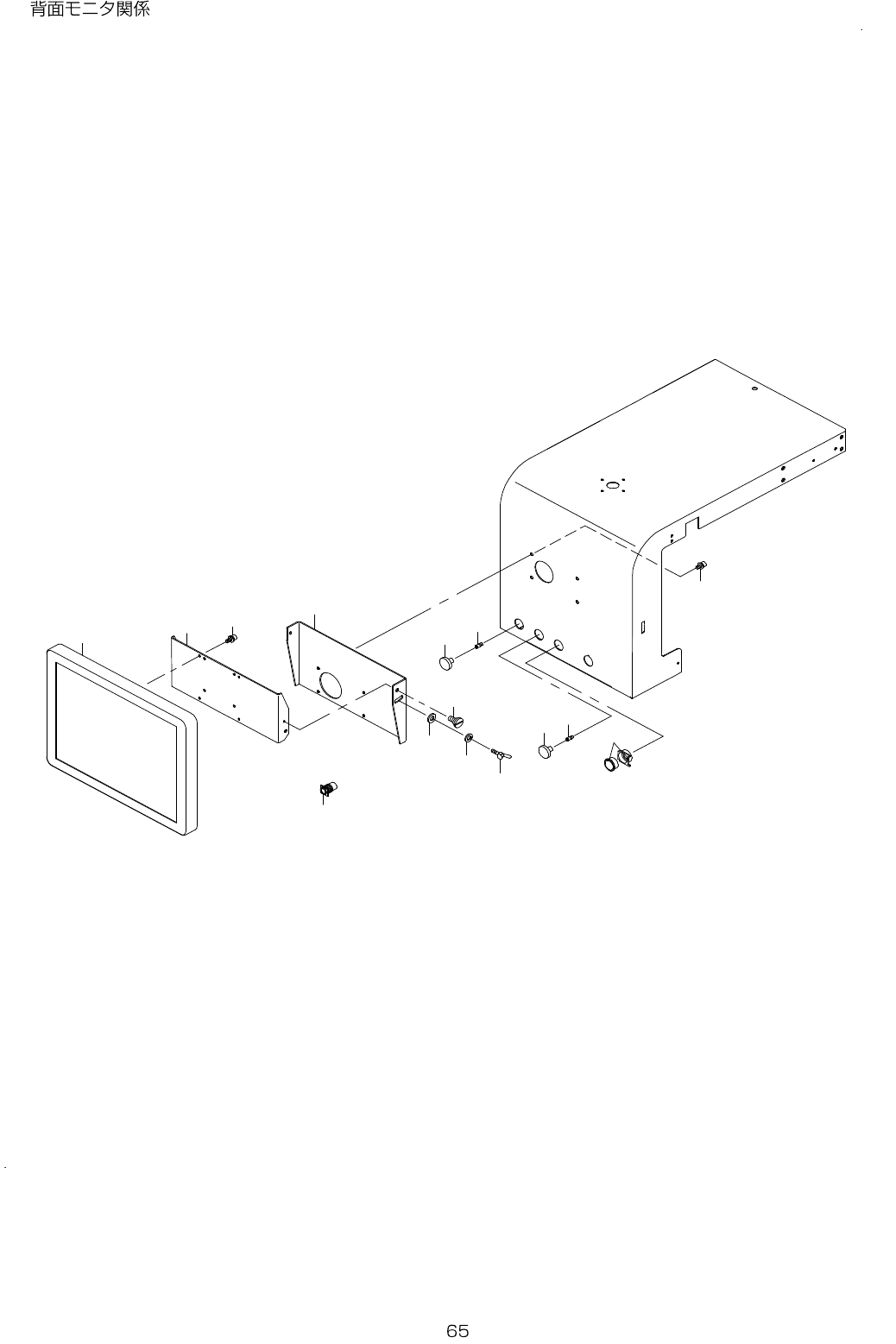

33. REAR MONITOR COMPONENTS
2
1
6
7
1 2
1 3
1 1
9
1 0
8
3
4
5
4
5
