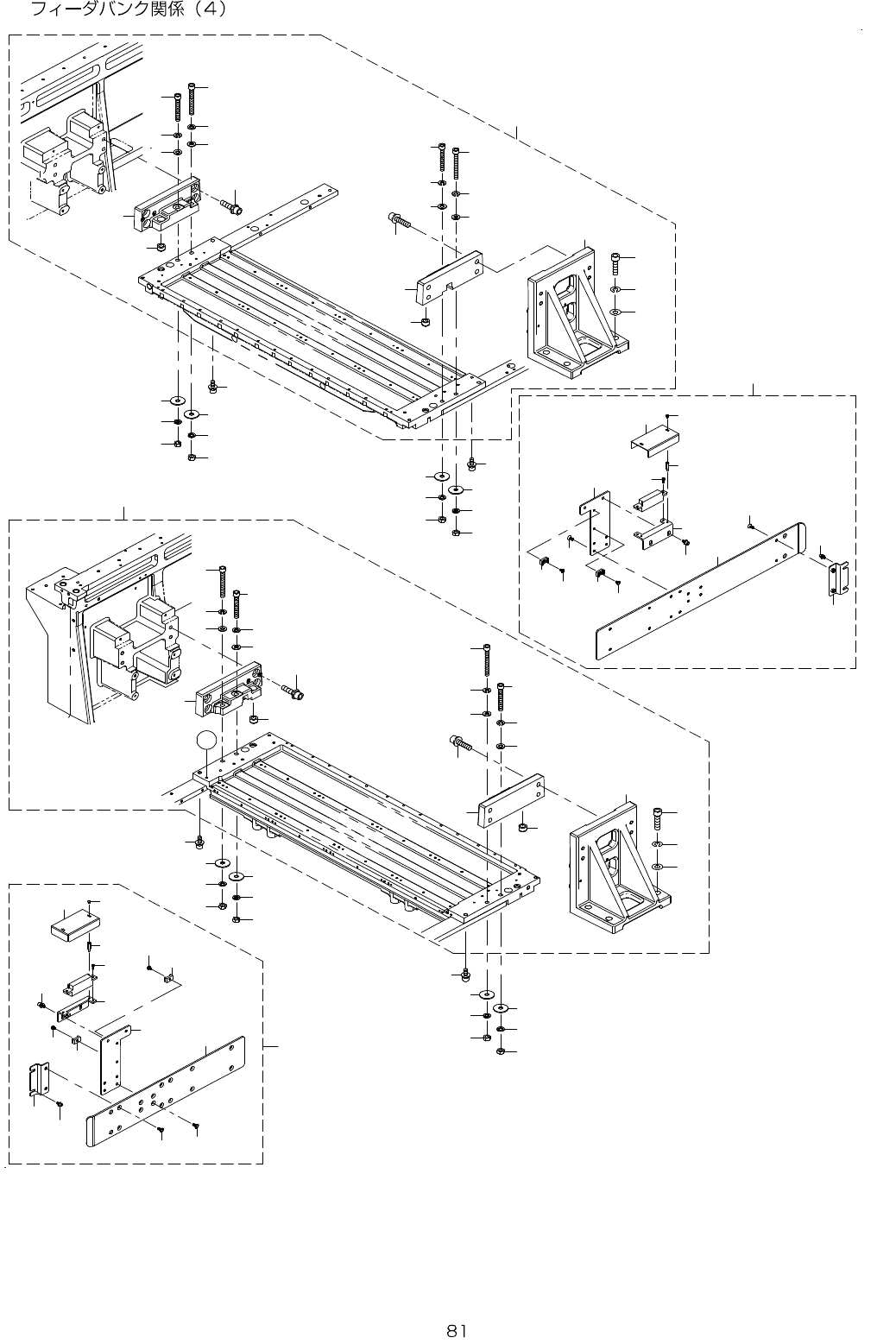

41. FEEDER BANK COMPONENTS (4)
3
2
4
1 5
1 01 3
9
1 2
1 4
1 1
5
6
8
7
8
7
2 0
2 1
2 2
2 0
2 1
2 2
2 0
2 1
2 2
2 0
2 1
2 2
1 9
1 8
1 6
1 7
1 9
1 8
1
A
3 7
2 6
2 7
2 8
2 9
3 0
3 0
3 1
3 2
3 3
3 4
3 6
3 5
3 6
3 5
2 5
4 2
2 3
2 3
3
4
5
6
8
7
8
7
2
1
2 3
2 1
2 2
2 0
2 0
2 1
2 2
2 4
1 8
1 9
1 6
1 8
1 9
1 7
2 3
2 2
2 1
2 0
2 2
2 1
2 0
1 5
1 0
1 2
1 1
9
1 4
1 3
5 1
4 1
4 8
4 7
4 0
4 5
4 5
4 3
4 4
4 6
5 0
5 0
4 9
4 9
3 8
3 9
- -

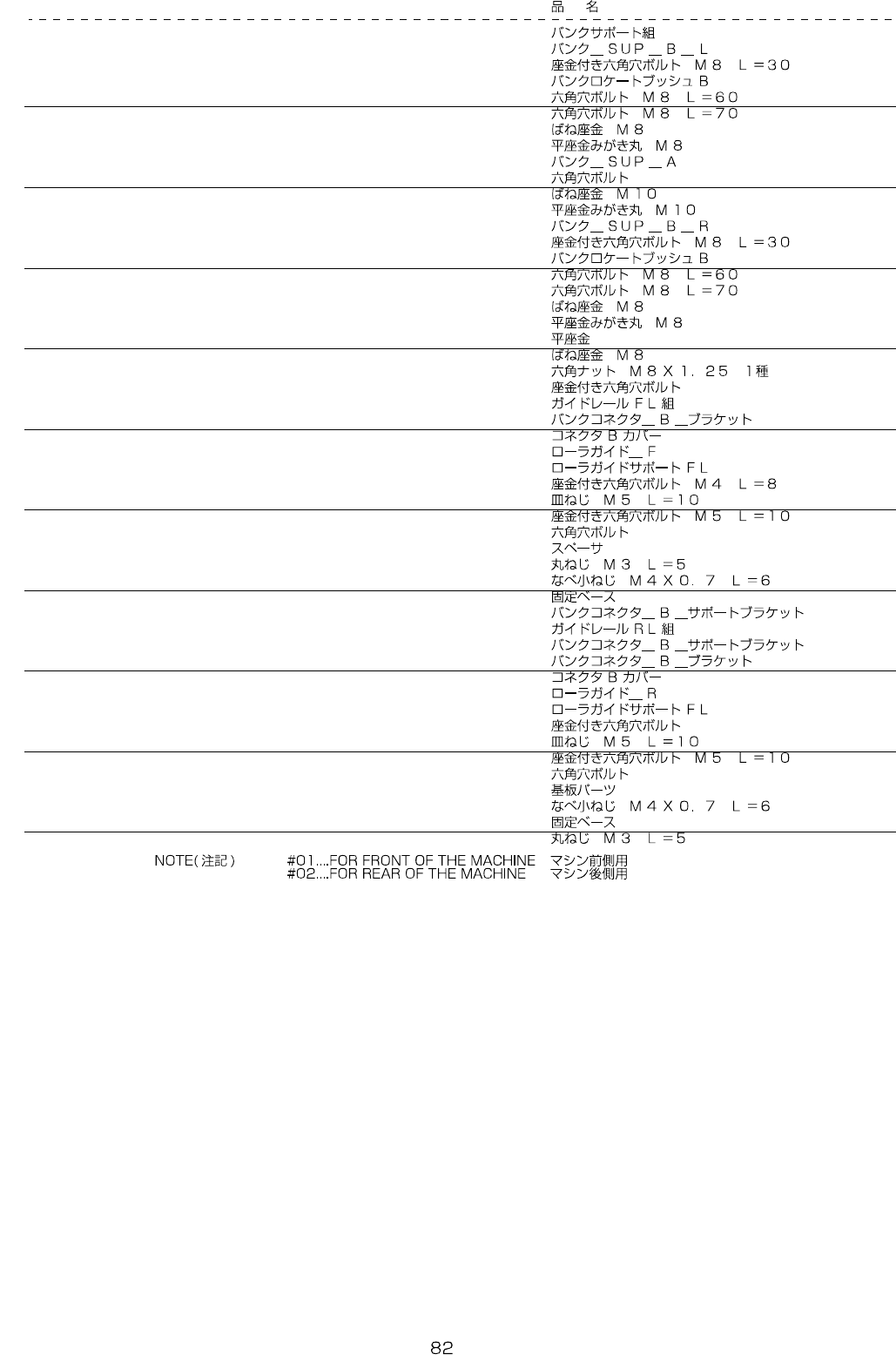

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-83611 BUNK_SUPPORT_ASM 2
2 401-83147 BANK_SUP_B_L (1)
3 SL-6083092-TN SCREW M8 L=30 (4)
4 E2623-721-000 BANK LOCATE BUSH B (1)
5 401-83206 SCREW M8 L=60 (1)
6 401-83207 SCREW M8 L=70 (1)
7 WS-0820002-KN SPRING WASHER M8 (2)
8 WP-0841601-SC WASHER M8 (2)
9 401-09098 BANK_SUP_A (1)
10 SM-6104002-TP SCREW (4)
11 WS-1020002-KN SPRING WASHER M10 (4)
12 WP-1052001-SC WASHER 10 (4)
13 401-83149 BANK_SUP_B_R (1)
14 SL-6083092-TN SCREW M8 L=30 (4)
15 E2623-721-000 BANK LOCATE BUSH B (1)
16 401-83206 SCREW M8 L=60 (1)
17 401-83207 SCREW M8 L=70 (1)
18 WS-0820002-KN SPRING WASHER M8 (2)
19 WP-0841601-SC WASHER M8 (2)
20 WP-0852086-SC WASHER M8 8
21 WS-0820002-KN SPRING WASHER M8 8
22 NM-6080001-SC NUT M8X1.25 TYPE1 8
23 SL-6082092-TN BOLT 4
24
#01
401-83612 GUIDE_RAIL_FL_ASM 1
25 401-83192 BANK_CONNECTOR_B_BR (1)
26 401-83209 CONNECTOR_B_COVER (1)
27
#01
401-83193 ROLLER_GUIDE_F (1)
28 400-93852 ROLLER_GUIDE_SUPPORT_FL (1)
29 SL-6040892-TN SCREW M4 L=8 (2)
30 SM-1051052-TN PLATE SCREW M5 L=10 (10)
31 SL-6051092-TN SCREW M5 L=10 (2)
32 SM-6030802-TN SCREW (2)
33 HX-0035400-0A SPACER (2)
34 SM-3030552-TN SCREW M3 L=5 (2)
35 SM-4040601-SC SCREW M4X0.7 L=6 (2)
36 HX-0029400-00 FIXED BASE (2)
37 401-83191 BANK_CONNECTOR_B_SUPPORT_BR (1)
38
#02
401-83613 GUIDE_RAIL_RL_ASM 1
39 401-83191 BANK_CONNECTOR_B_SUPPORT_BR (1)
40 401-83192 BANK_CONNECTOR_B_BR (1)
41 401-83209 CONNECTOR_B_COVER (1)
42
#02
401-83205 ROLLER_GUIDE_R (1)
43 400-93852 ROLLER_GUIDE_SUPPORT_FL (1)
44 SL-6040892-TN BOLT (2)
45 SM-1051052-TN PLATE SCREW M5 L=10 (10)
46 SL-6051092-TN SCREW M5 L=10 (2)
47 SM-6030802-TN SCREW (2)
48 HX-0035400-0A BOARD PARTS (2)
49 SM-4040601-SC SCREW M4X0.7 L=6 (2)
50 HX-0029400-00 FIXED BASE (2)
51 SM-3030552-TN SCREW M3 L=5 (2)
- -

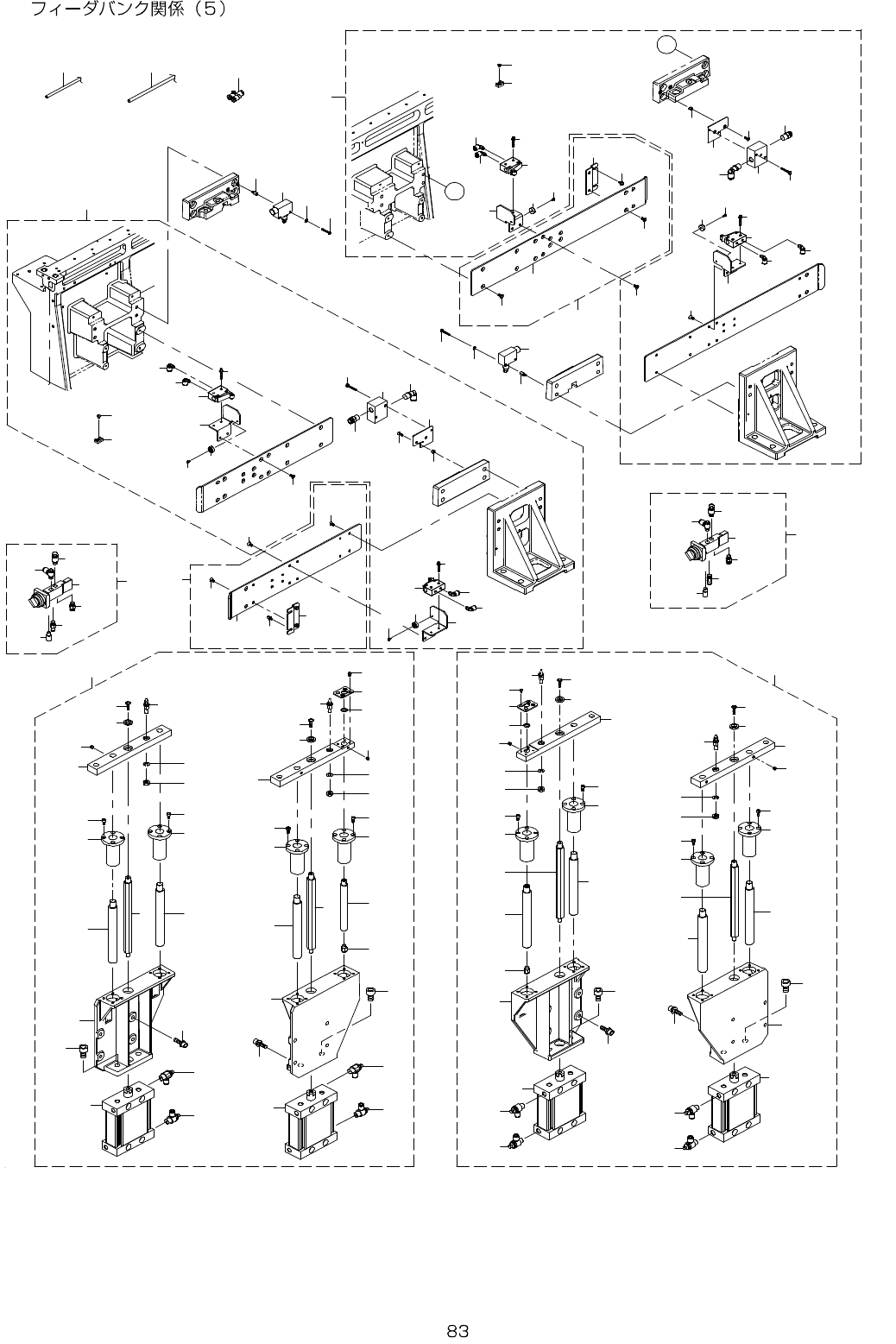

42. FEEDER BANK COMPONENTS (5)
