- - 47 . CON VEY O R EX TENT IO N CO MP ON ENTS 7 8 1 5 1 6 1 9 2 0 9 1 0 1 1 1 2 1 3 1 4 2 1 2 2 2 3 1 9 2 0 2 3 2 4 2 4 2 5 2 6 1 7 1 8 2 5 2 6 2 7 1 7 1 8 1 3 1 4 2 1 2 2 5 6 1 4
- -

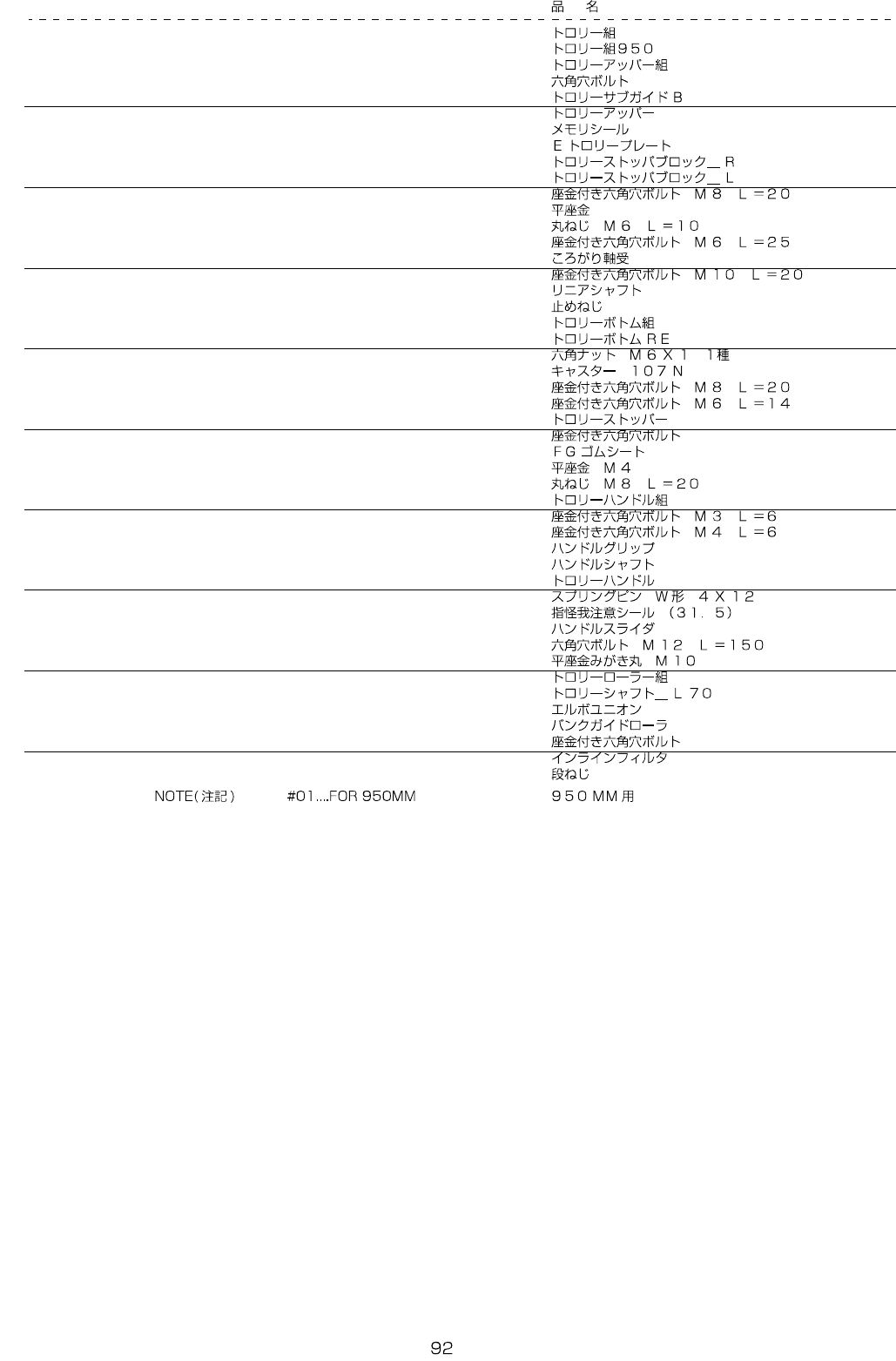

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-87614 TROLLEY_ASM 1
2
#01
401-87656 TROLLEY_ASM_950 1
3 401-87615 TROLLEY_UPPER_ASM (1)
4 SM-6040602-TN SCREW (16)
5 400-01748 TROLLEY SUB GUIDE (2)
6 401-77434 TROLLEY_UPPER (1)
7 400-01730 SCALE MARKS SEAL (2)
8 400-89239 E_TROLLEY_PLATE (4)
9 401-87619 TROLLEY_STOPPER_BLOCK_R (1)
10 401-87618 TROLLEY_STOPPER_BLOCK_L (1)
11 SL-6082092-TN SCREW M8 L=20 (6)
12 WP-0621036-SP WASHER (4)
13 SM-3061052-TN SCREW M6 L=10 (4)
14 SL-6062592-TN SCREW M6 L=25 (2)
15 SB-8160005-C0 BEARING (4)
16 SL-6102042-TN SCREW M10 L=20 (4)
17 401-28047 LINEAR_SHAFT (4)
18 SM-8060552-TP SCREW M6 L=5 (4)
19 401-87616 TROLLEY_BOTTOM_ASM (1)
20 401-87620 TROLLEY_BOTTOM_RE (1)
21 NM-6060001-SC NUT M6X1 TYPE1 (4)
22 400-94859 CASTER_107N (4)
23 SL-6082092-TN SCREW M8 L=20 (16)
24 SL-6061492-TN SCREW M6 L=14 (4)
25 E2711-721-000 TROLLEY STOPPER (2)
26 SL-6040892-TN BOLT (1)
27 400-23476 FG GUM SHEET (1)
28 WP-0430801-SC WASHER M4 (1)
29 SM-3082052-TN SCREW M8 L=20 (4)
30 401-87617 TROLLEY_HANDLE_ASM (2)
31 SL-6030642-TN SCREW M3 L=6 (1)
32 SL-6040642-TN SCREW M4 L=6 (1)
33 E2641-729-000 HANDLE CLIP (1)
34 401-87629 HANDLE_SHAFT (1)
35 401-87628 TROLLEY_HANDLE (1)
36 PS-0400122-KP SPRING PIN TYPE W 4X12 (3)
37 CM-3002000-03 FINGER INJURY CAUTION LABEL (31.5) (1)
38 E2635-729-000 HANDLE SLIDER (1)
39 SM-6125052-TR SCREW M12 L=150 (2)
40 WP-1052001-SC WASHER 10 (4)
41 401-87649 TROLLEY_ROLLER_ASM (1)
42 400-94881 TROLLEY_SHAFT_L70 (2)
43 PJ-3040852-01 ELBOW UNION 8XPT1/4 (1)
44 E2732-721-000 BANK GUIDE ROLLER (2)
45 SL-6040892-TN BOLT (2)
46 401-83167 INLINE_FILTER (1)
47 400-01734 SCREW (4)
- -

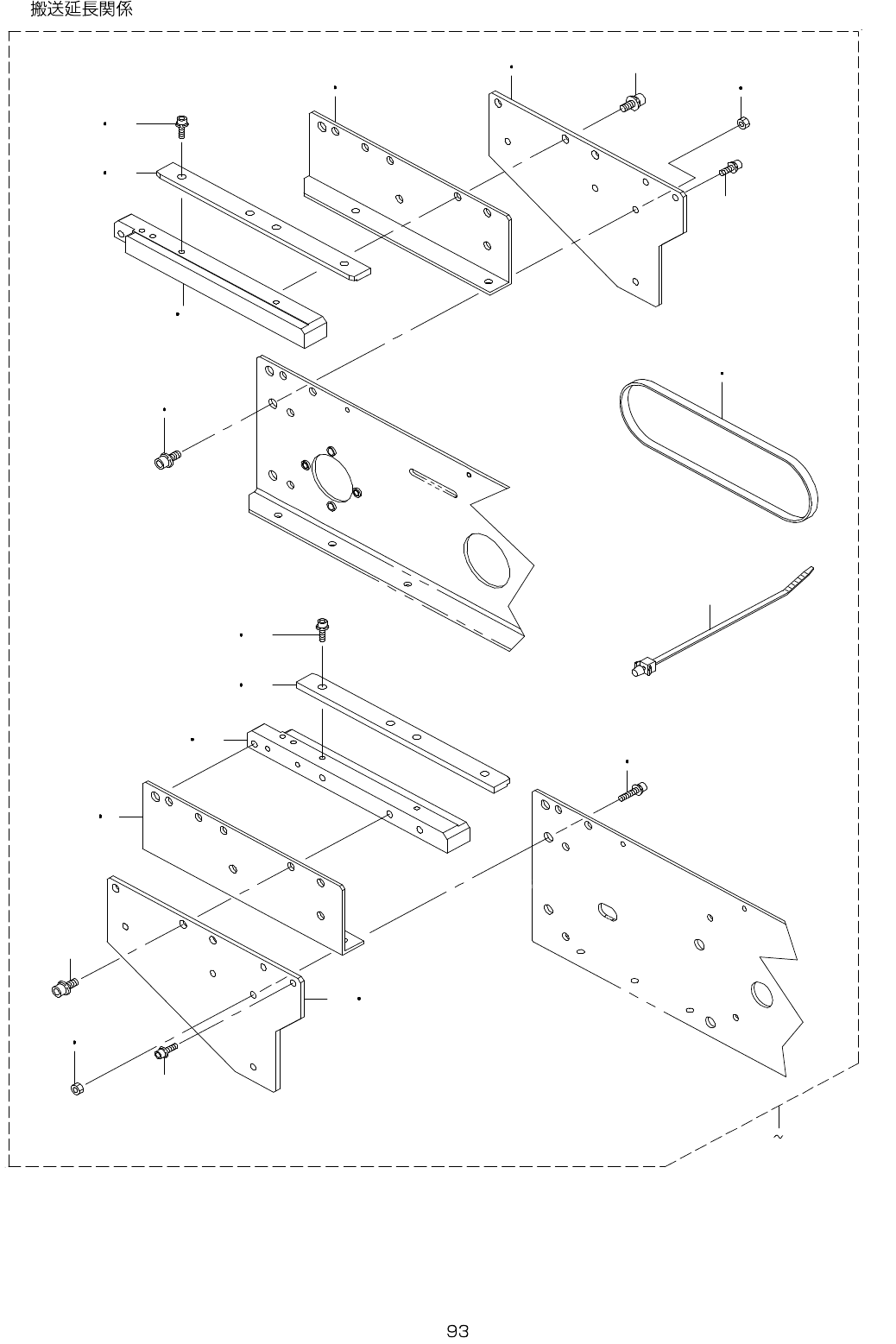

47. CONVEYOR EXTENTION COMPONENTS
7 8
1 5 1 6
1 9 2 0
9 1 0
1 1 1 2
1 3 1 4
2 1 2 2
2 3
1 9 2 0
2 3
2 4
2 4
2 5 2 6
1 7 1 8
2 5 2 6
2 7
1 7 1 8
1 3 1 4
2 1 2 2
5 6
1 4
- -

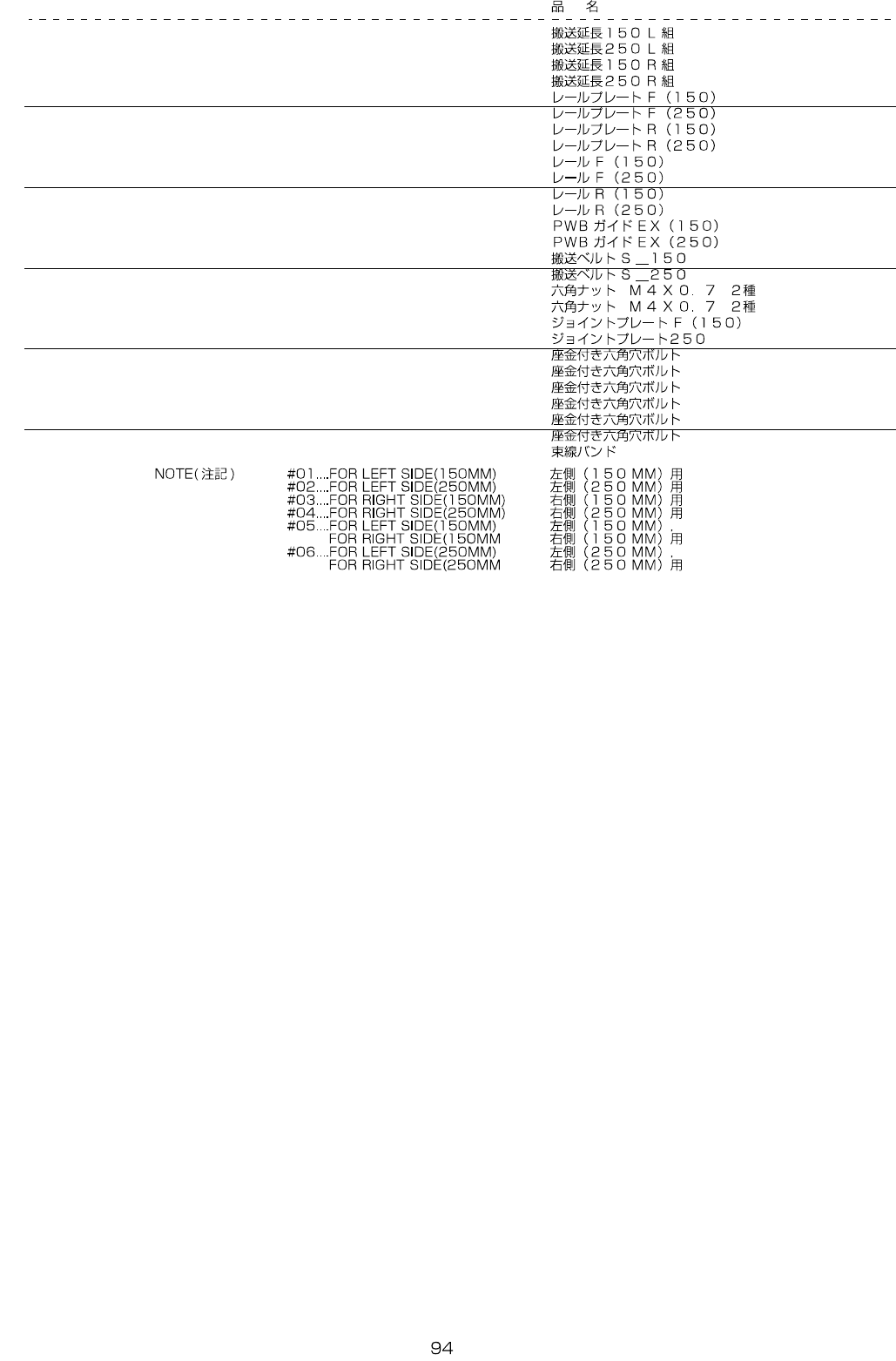

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
401-87786 CONVEYOR_EX_150L_ASM 1
2
#02
401-87788 CONVEYOR_EX_250L_ASM 1
3
#03
401-87787 CONVEYOR_EX_150R_ASM 1
4
#04
401-87789 CONVEYOR_EX_250R_ASM 1
5
#05
400-11053 RAIL PLATE F(150) (1)
6
#06
400-11060 RAIL PLATE F(250) (1)
7
#05
400-11054 RAIL PLATE R(150) (1)
8
#06
400-11061 RAIL PLATE R(250) (1)
9
#05
400-11055 RAIL F(150) (1)
10
#06
400-11062 RAIL F(250) (1)
11
#05
400-11056 RAIL R(150) (1)
12
#06
400-11063 RAIL R(250) (1)
13
#05
400-11057 PWB GUIDE EX(150) (2)
14
#06
400-11064 PWB GUIDE EX(250) (2)
15
#05
401-86617 CONVEYOR_BELT_S_150 (2)
16
#06
401-86618 CONVEYOR_BELT_S_250 (2)
17
#05
NM-6040002-SN NUT M4 (8)
18
#06
NM-6040002-SN NUT M4 (12)
19
#05
400-11072 JOINT PLATE F(150) (2)
20
#06
401-40931 JOINT_PLATE_250 (2)
21
#05
SL-6031092-TN SCREW (6)
22
#06
SL-6031092-TN SCREW (8)
23 SL-6031092-TN SCREW (4)
24 SL-6041292-TN SCREW (6)
25
#05
SL-6041092-TN SCREW (8)
26
#06
SL-6041092-TN SCREW (12)
27 HX-0044000-00 CABLE BAND (5)
