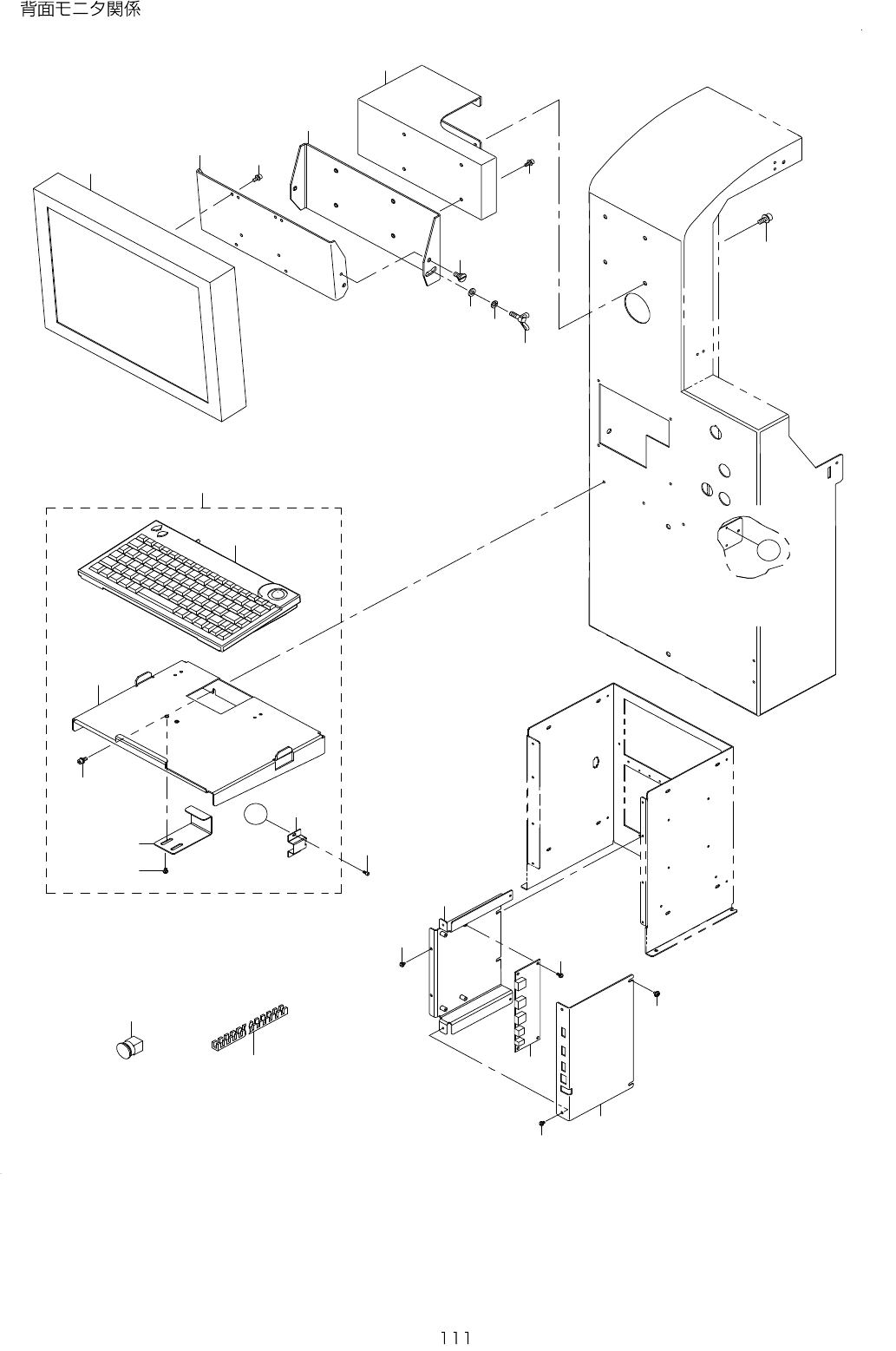

56.REARMONITORCOMPONENTS
1
9
8
7
6
4
3
2
1 0
4
5
1 2
1 1
1 9
2 2
2 3
2 1
2 0
2 4
A
2 5
A
2 6
1 8
1 3
1 4
1 5
1 6
1 8
1 7
- -

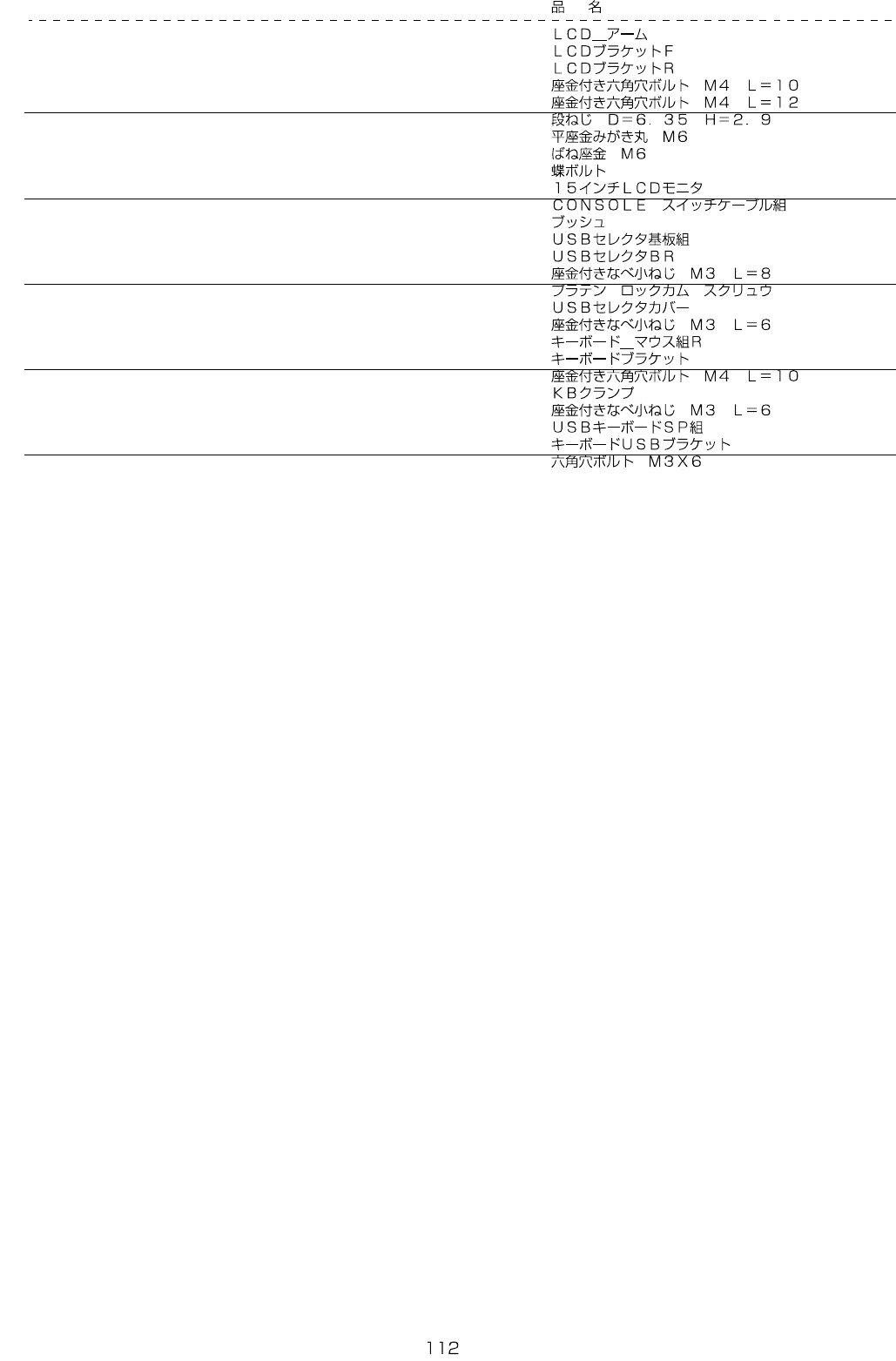

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-36875 LCD_ARM 3
2 400-47170 LCD_BRACKET_F 12
3 400-47171 LCD_BRACKET_R 2
4 SL-6041092-TN SCREWM4L=10 8
5 SL-6041292-TN SCREWM4L=12 4
6 400-96860 SHOULDERSCREWD=6.35H=2.9 2
7 WP-0641601-SC WASHERM6 1
8 WS-0610002-KN SPRINGWASHERM6 1
9 161-87007 WINGBOLT 1
10 401-58158 15INCHLCDMONITOR 1
11 401-36552 CONSOLESWCABLEASM 2
12 E5348-033-100 GROMMET 0.16
13 401-41515 USBSELECTPCBASM 1
14 401-41368 USB_ELECT_BR 1
15 SL-4030891-SC SCREWM3L=8 1
16 E1038-871-000 PLATENLOCKCAMSCREW 2
17 401-41369 USB_SELECT_COVER 1
18 SL-4030691-SC SCREWM3L=6 1
19 401-37136 KEYBOARD_MOUSE_ASM_R 1
20 401-36976 KB_BRACKET (1)
21 SL-6041092-TN SCREWM4L=10 (3)
22 401-23713 KB_CLAMP (1)
23 SL-4030691-SC SCREWM3L=6 (1)
24 401-23194 USBKEYBOARDSPASM (1)
25 401-36975 KYBD_USB_BRACKET (1)
26 SM-6030602-TN SCREWM3X6 2
- -

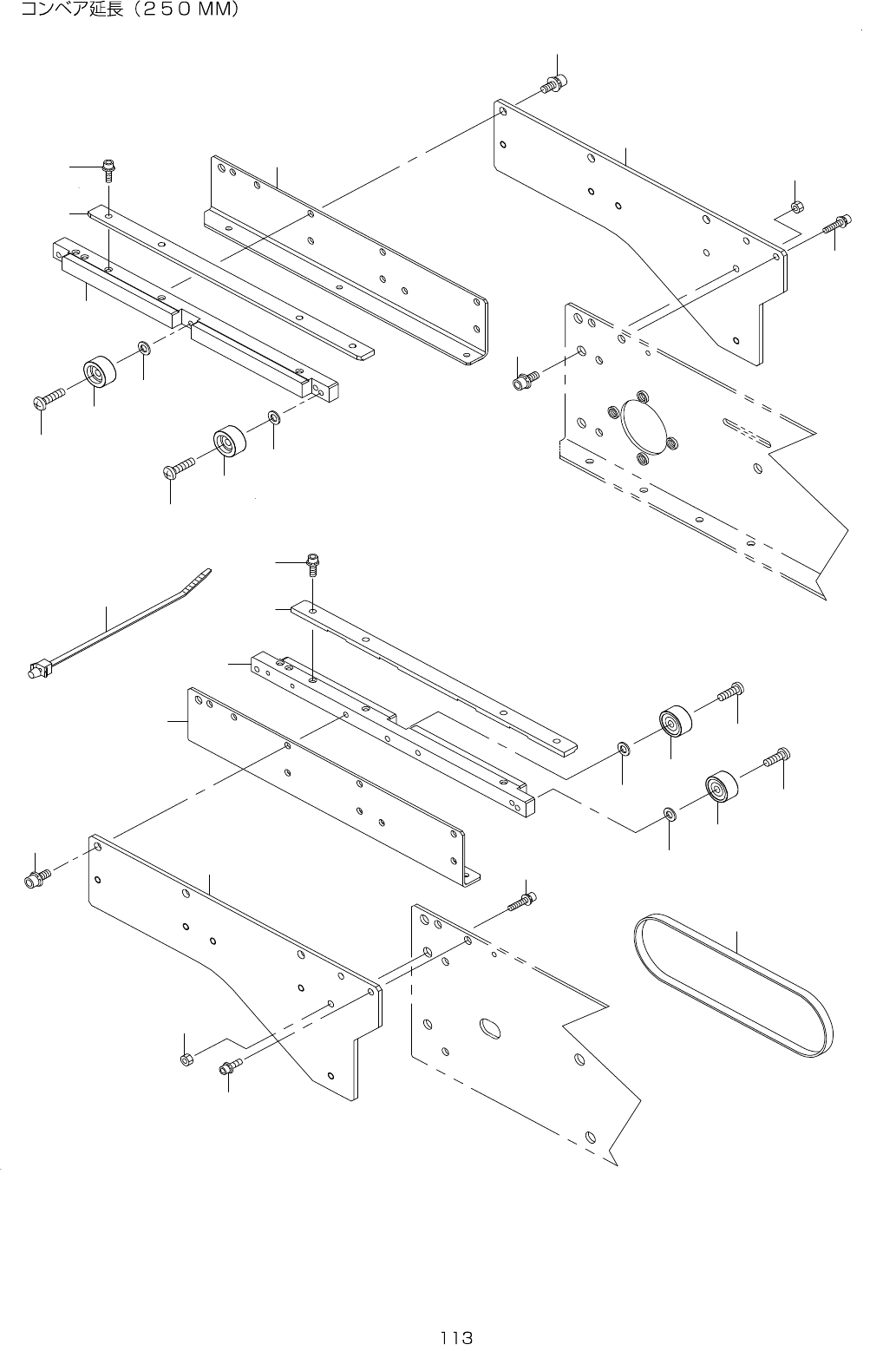

57.CONVEYOREXTENTIONCOMPONENTS(250MM)
