3 Installation
3.6 Fitting the Service Flap
Assembly Instructions / Montageanleitung SIPLACE X-Series S Service Flap Serviceklappe 07/2019 47
3.6 Fitting the Service Flap

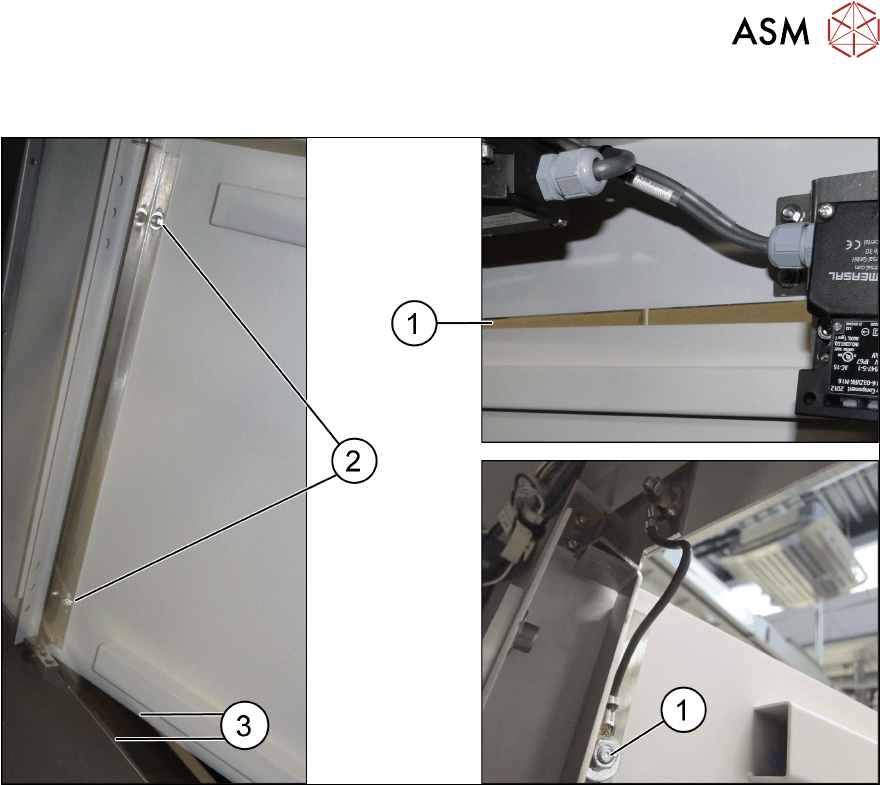

Fig.14: Fitting the service flap
► Align the service flap centrally to the slots in the slider.
► Use a washer and nut to fasten the service flap to the slider (2). Do not tighten the nuts yet.
► Fasten the EMC tape for the hinge to the top of the door (1).
► Now tighten the screws for the hinges at the top and bottom. Make sure that you have equal
gaps between the top cover and the machine base (3).
► Adjust the safety switch and the actuating bracket so that the door can be easily closed (ad-
justing plates).
3.7 Final Work:
► Switch the machine back on and boot the station computer.
► Perform a function test for the new security switch.
► Check the emergency stop loop and the signaling loop.
